Installation instructions

4.1. Preparing for installation

Note Figure 2.
ATTENTION!
Damage to the unit
● The ProD Bluetooth is splash-proof (protection class IPX4).
● Work on the ProD Bluetooth may only be carried out using an ordinary
screwdriver. Using a cordless screwdriver may cause irreparable damage
to the housing.
1. Cut the mounting hole the cabin wall with a jigsaw.
2. The minimum installation depth for a wall cut-out is 35 mm.
3. Remove any insulation from the mounting hole.
4. Lay the connecting cable in the wall of the sauna cabin to the mounting hole
and fasten it with cable ties.

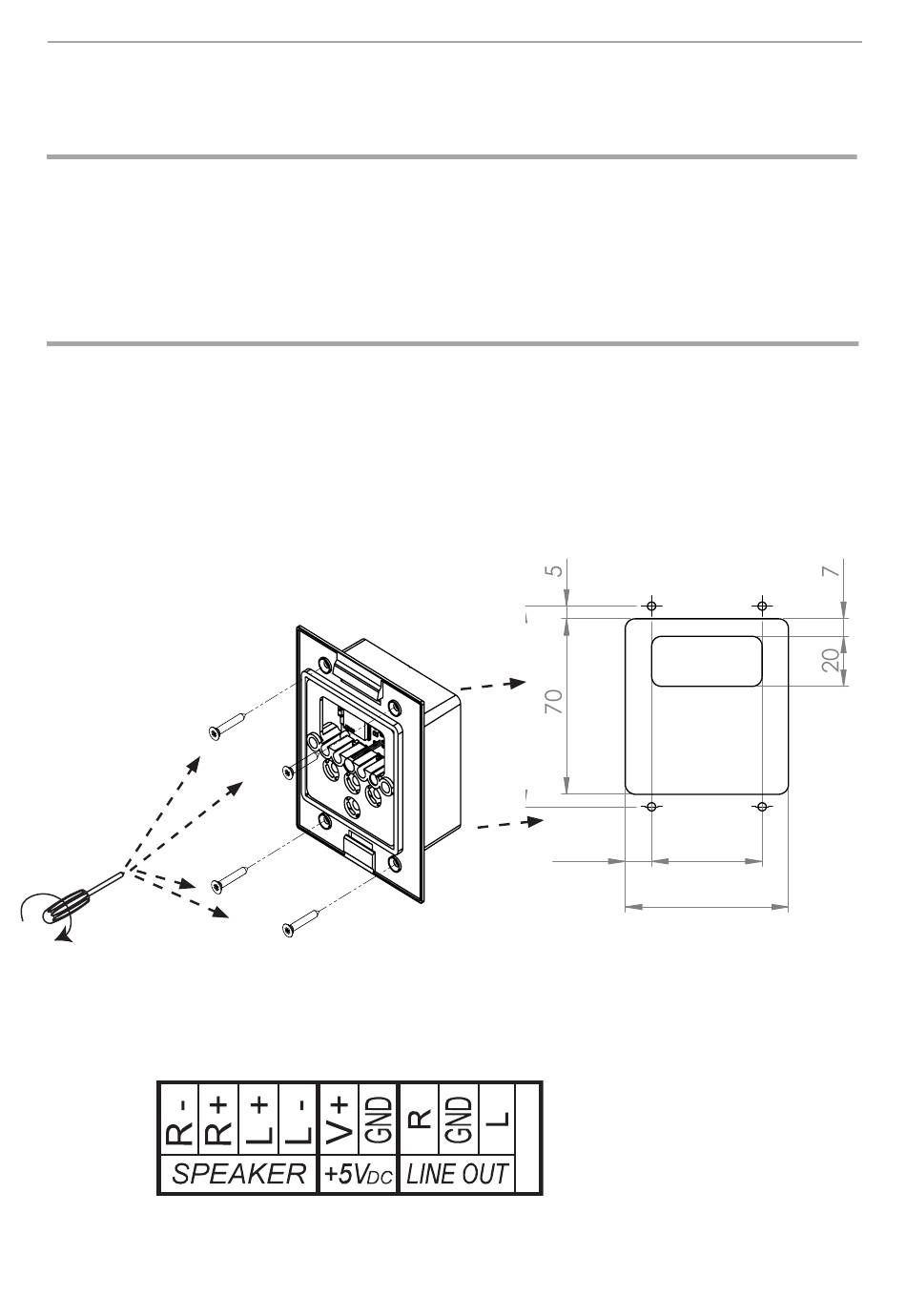

Figure 2: Installation in wall cut-out
Figure 3: Connecting the device (rear)
10,5 44
65
