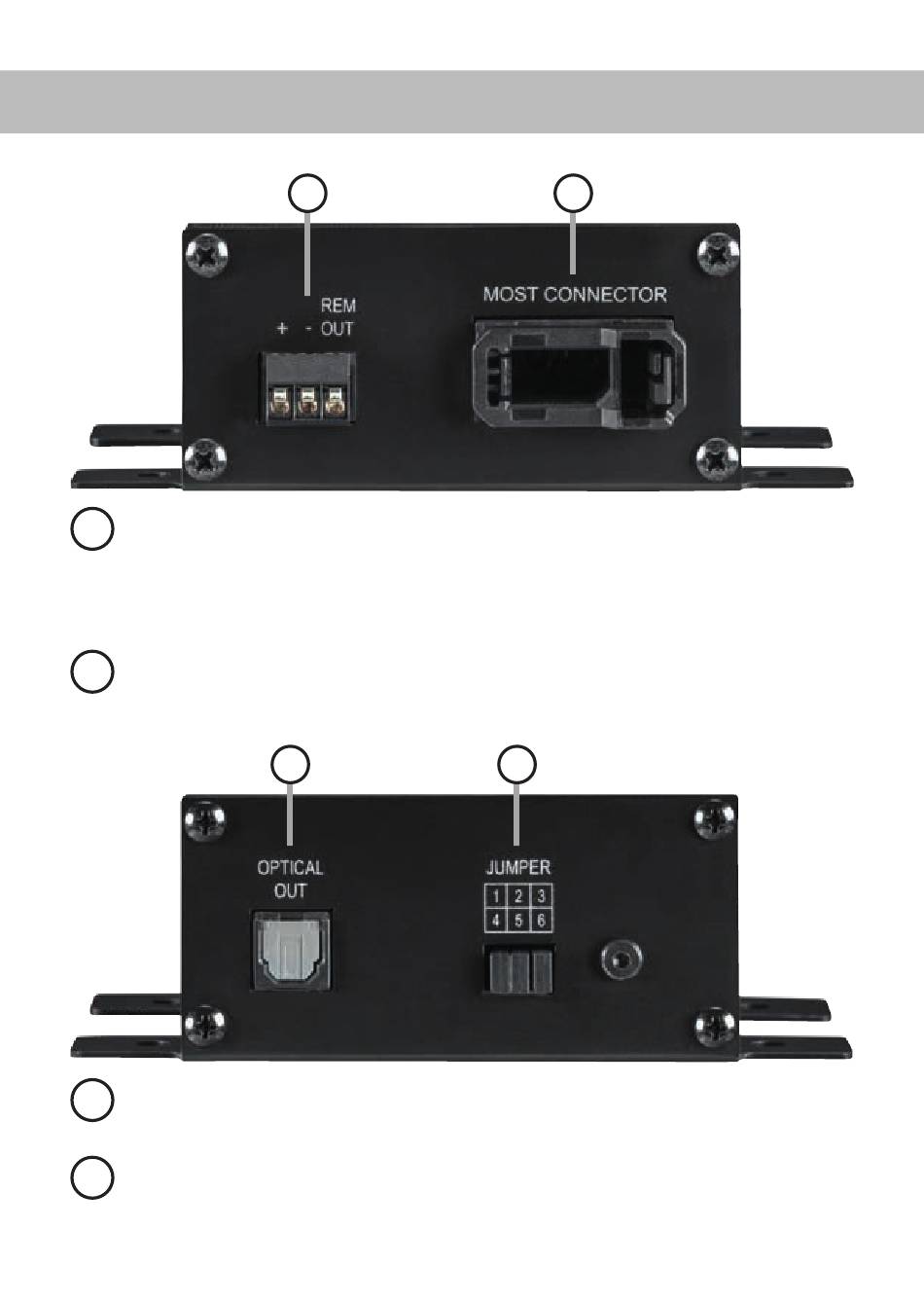

Connectors and control units
Power Input
1
Connector for the DC power supply with an additional remote
output. The remote output must be used to switch on external
components.
MOST Connector
2
For connecting the MOST fibre-optic cable of the vehicle.
Optical Out
3
Optical, digital stereo signal output in SPDIF format.
Jumper
4
For vehicle-specific configuration of the SDMI25.
1
3
2
4
