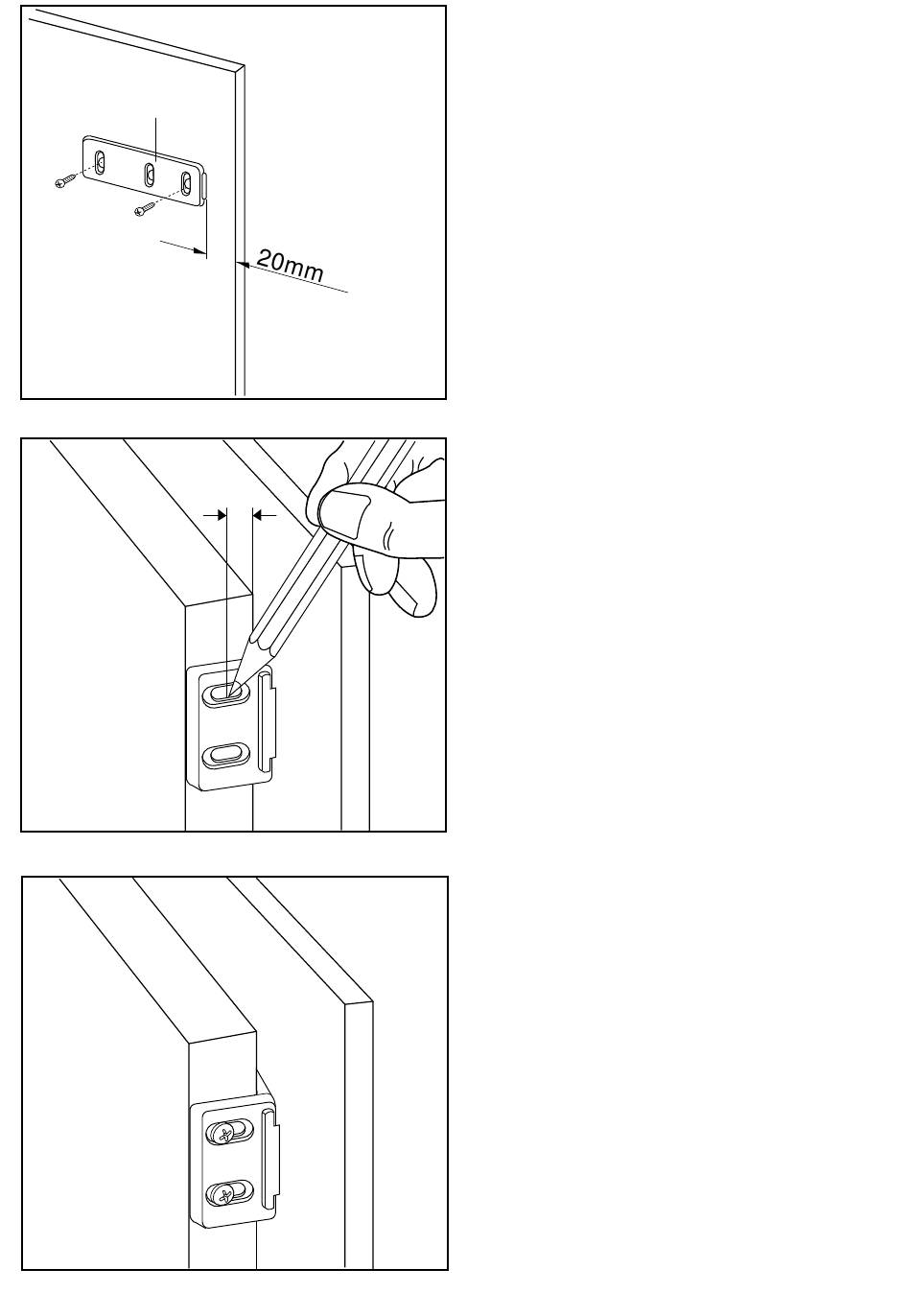

Fig. 11
Position the runners (H) at the top and bot-
tom of the inside of the kitchen unit as
shown in Fig. 11 and mark the position of
H
the external holes.
After preparing the holes, screw the runners
to the kitchen unit door using 3.5x16 mm
screws.
D094
Fig. 12
Open both the appliance door and that of
8mm
the kitchen unit to approx. 90°.
Place the little plates over the runners. Hold
the doors of the appliance and the unit
together and mark the holes.
D415
Fig. 13
Remove the little plates and make the holes
with a diam. of 2 mm. Replace the little
plates over the runners and screw in the
screws provided (3.5x16 mm).
For the alignment of the kitchen unit door, if
necessary, use the clearance size of the
slotted holes.
At the end of the procedure, check that the
doors of the appliance and the kitchen unit
open properly.
