Instructions for fully built-in appliances
Model
AKE 8220 IW
The appliance doors have been locked in position for transport by means of pins on both
sides. In case of right-hand door opening, remove the relevant pins at the top and at the
bottom.
In case of left-hand door opening, remove the pins at the top and the door, take off the
intermediate hinge and put it on the left side, then refit the door and the pin.
50 mm
D567
D382
70
Height of housing
1446 mm
min.
cm
A
A
Depth of housing
550 mm
Fig. 6

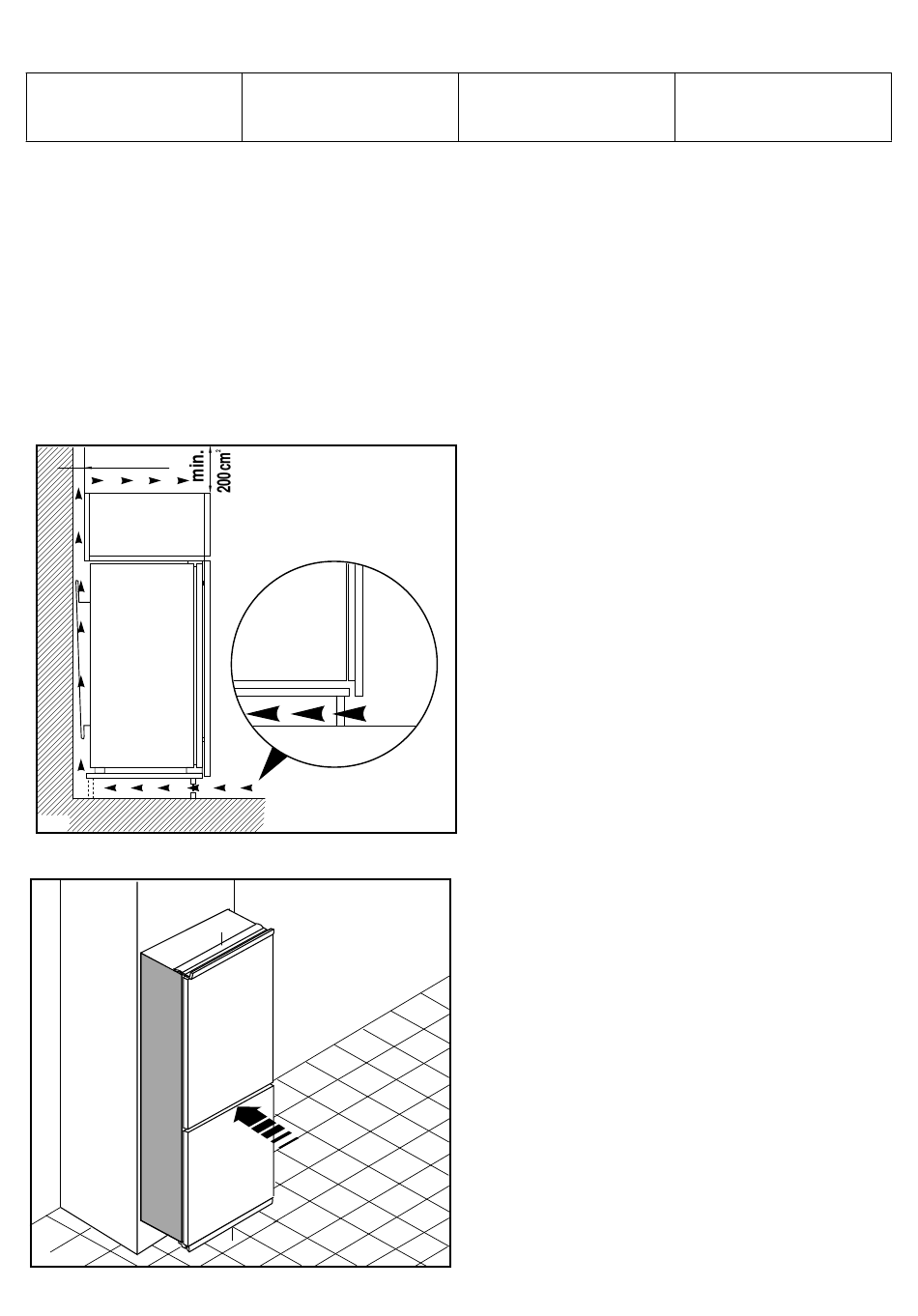

For safety reasons, minimum ventilation
must be as shown in Fig. 6.
Attention: keep ventilation openings
clear of obstruction.
2
200
Fig. 7
Push in the appliance into the housing until
joint covers (A) butt against the kitchen fur-
niture.
Width of housing
560 mm
