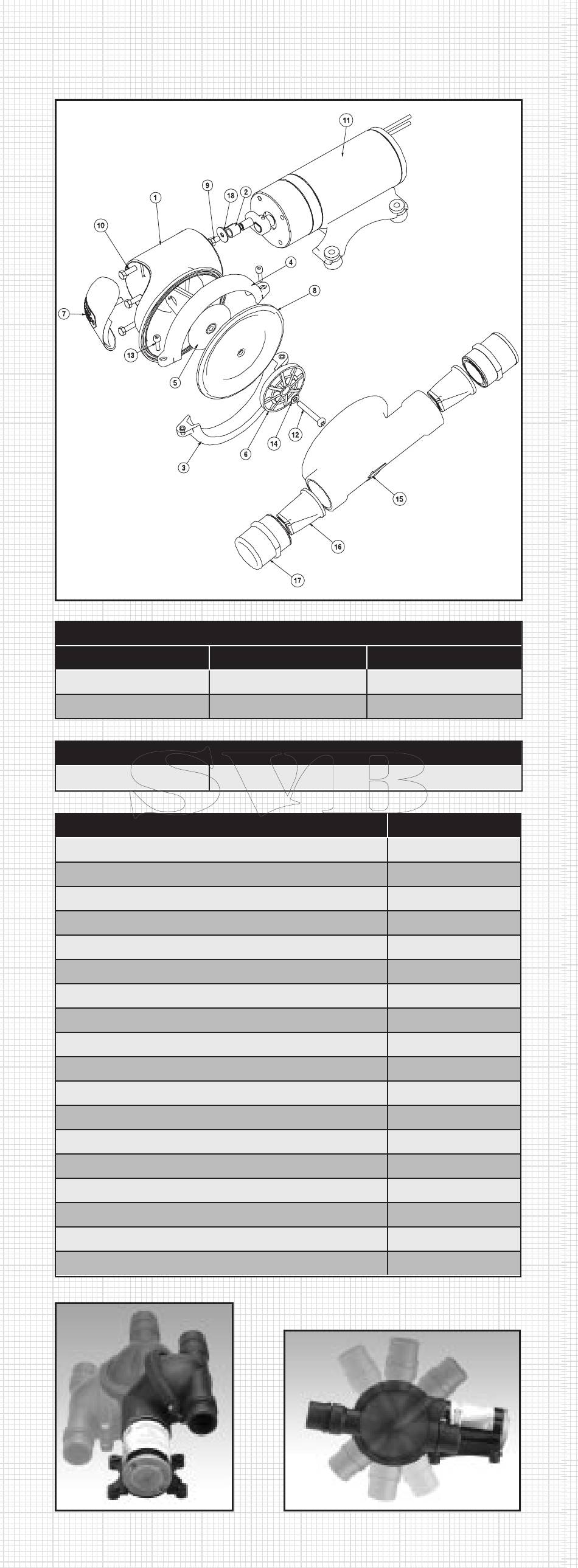

EXPLODED VIEW

Part Numbers
Model
50890-1000
50890-1100
Service Kit (Includes*)
SK890
Key Description
1 Bracket
2 Bush
3 Clamp Bottom
4 Clamp Top
5 Con Rod
6 Con Rod Plate
7 Cover
8 Diaphragm
9 Hex Head Screw
10 Hex Head Screw
11 Motor Assembly
12 Screw Recessed Pan Head
13 Socket Head Screw
14 Washer
15 Waste Pump Chamber
16 Waste Pump Joker Valve
17 Waste Pump Port
18 Washer
Voltage
12V
24V
Service Kit - Waste Pump
Fuse Sizes
10A
5A
*Quantity in Kit
1
1
4
1
1
2
2
