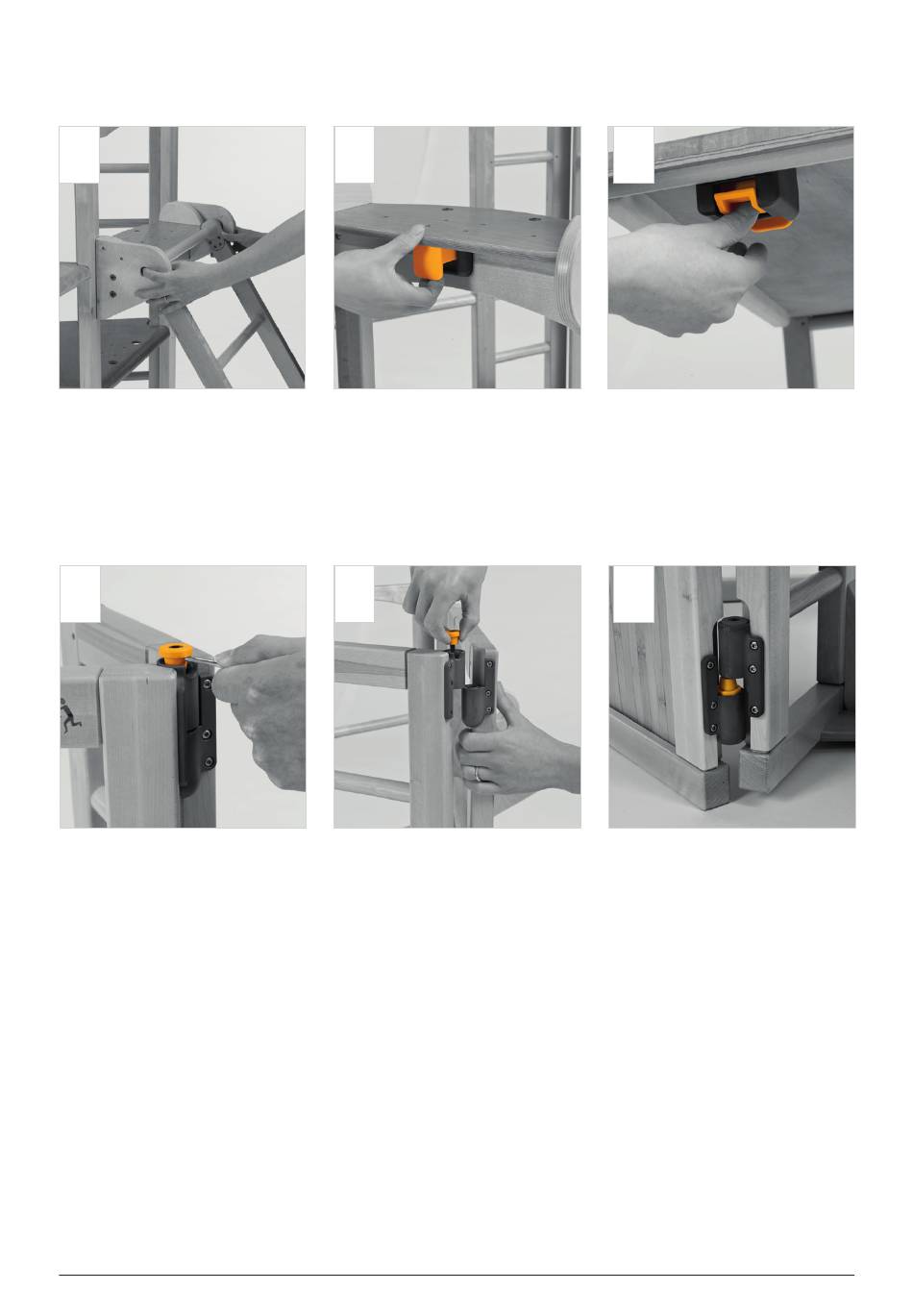

Disassembly

1
Remove all accessories from the frame. Do
this by pressing in both yellow buttons at the
end of the accessory and lifting it out of the
Perch.
Once everything has been removed from the frame, disconnect the panels:
1
Lift the yellow cap with a key or other tool.
Repeat steps 1 – 3 at second corner.
8
2
Remove the Perches by disengaging the
latches and lifting the Perches off.
2
Pull the tops of the panels apart
3
Remove the platforms. You must release
both latches. Two people doing this together
is the easiest.
3
Lift the bottom hinge apart.
