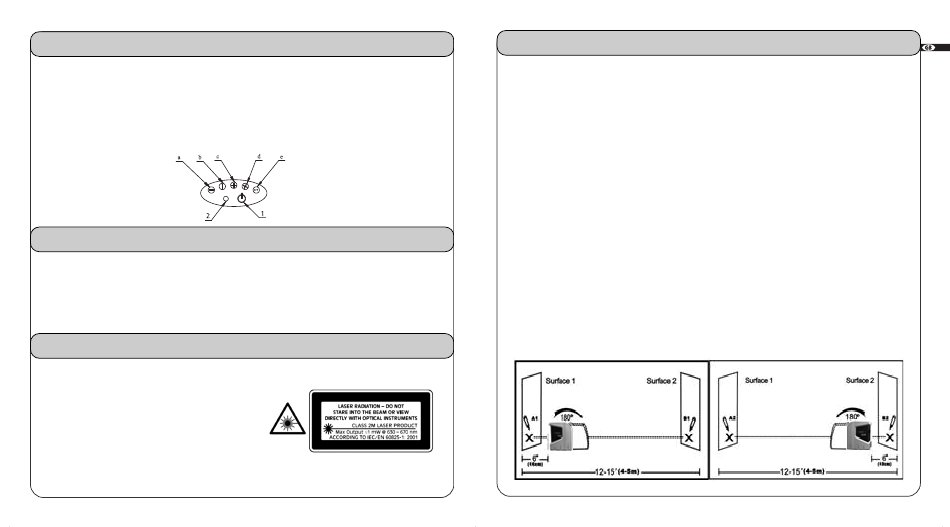

Control panel

1. ON button. Press to cycle through A-E:
a. Level (horizontal fan line)
b. Plumb (vertical fan line)
c. Cross line (horizontal and vertical)
d. Locked cross line (manual mode)
e. Off
2. LED for laser mode,
low battery

Care and Handling

This is a precision instrument which must be handled with care. Avoid shock
and vibrations. Keep the laser and aperture lens clean and dry. Use a soft cloth
and glass cleaner to clean them. Remove batteries before long-term storage.
Safety
• Do not stare directly at the beam.
• Do not set up the laser at eye level.
B
COMPLIES WITH 21 CFR
1040.10 AND 1040.11
EXCEPT FOR DEVIATIONS
PURSUANT TO LASER NOTICE NO. 50
DATED JULY 26, 2001 AGATEC, 2202 Redmond Road Jacksonville, AR 72076
4
USING THE CL30
The CL30 cross line laser
uses a pendulum mechanism
for self-leveling. In order for
the unit to automatically
level, it must be set up within
4 degrees of level.
A
Calibration control
We recommend checking the instrument's calibration before initial use; then
periodically to ensure proper reference.
Checking the horizontal line front to back
1. Set up the CL30 about 6" (15 cm) away from a wall (Surface 1) and 12-
15 ft. (4-5m) from another wall (Surface 2).
2. Turn it on in cross line mode. Be sure it's self-leveling.
3. Carefully mark the center where the lines cross on Surface 1. This is A1.
4. Rotate the laser 180° and mark the center where the lines cross on
Surface 2 (this is B1).
5. Right illustration: Move the laser 6" away from Surface 2 and mark the
center where the lines cross on Surface 2 (this is B2).
6. Rotate the laser 180° and mark the center where the lines cross on
Surface 1 (this is A2).
7. Measure the distance between A1 and A2, and also between B1 and
B2. If the distances are the same, the laser is in calibration. If the difference
between the two sets of marks is greater than 1/8" (3 mm), the laser is out
of calibration.
