Back
EN

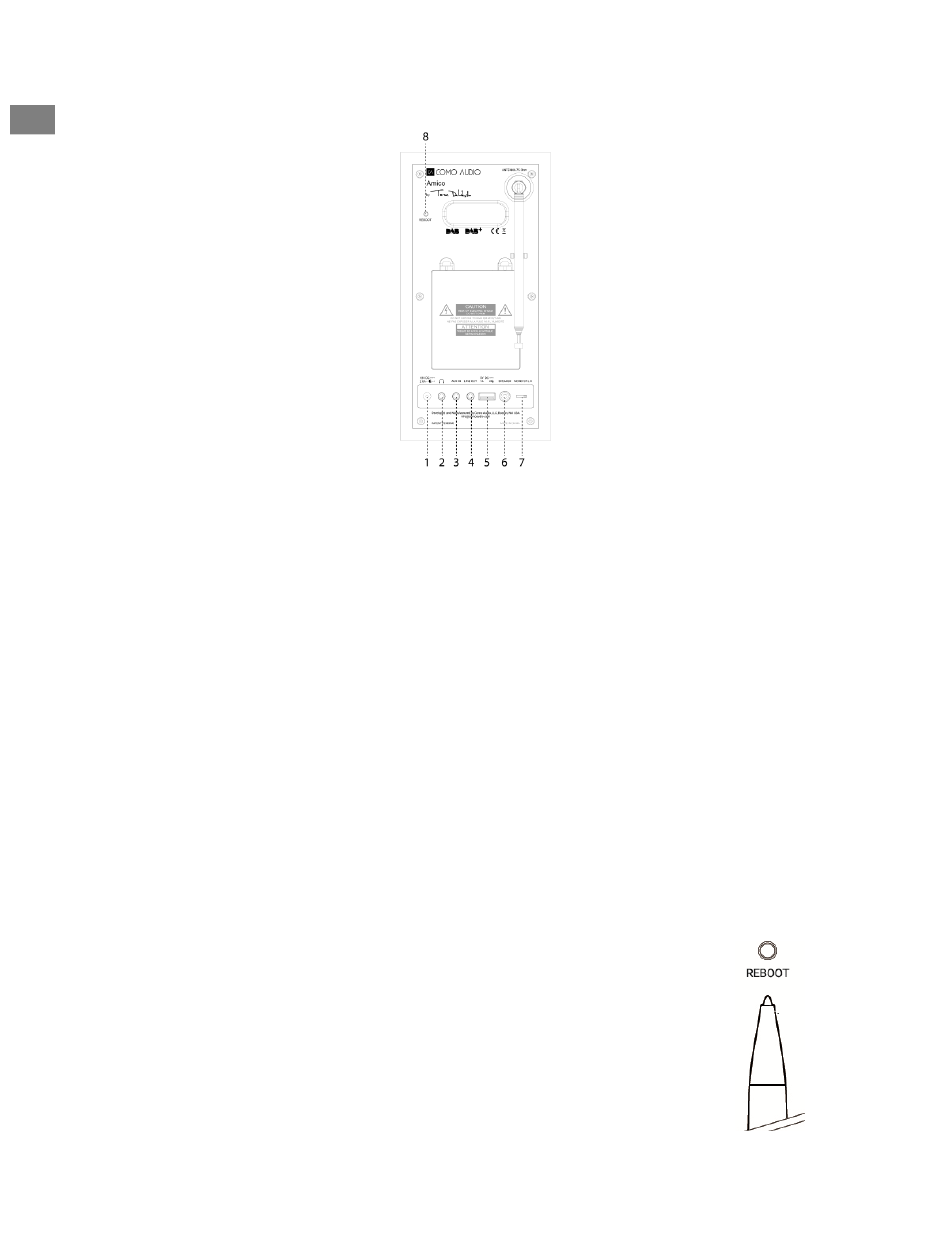

1. 18VDC/2.8A power inlet: Connect the included external power supply and snap in
the plug for your region if more than one is provided. The power supply will
automatically detect the correct voltage. The battery will charge whenever the
adapter is connected regardless of whether Amico is on or in standby. When Amico
is off without the adapter connected, it is completely off, not in standby. This is
intentional to preserve battery power.
2. Headphones: Connect a set of stereo headphones. The primary speakers will be
muted.
3. Auxiliary 1 (Hi-Res): Connect the analog audio out from another device.
4. Line out: Fixed level output to connect Amico's audio to a home receiver or other
device with an analog audio input.
5. USB: Insert a USB flash drive to playback music files then rotate the source knob and
push in briefly to select 'My Music'. This jack will also power Google's Chromecast
for Audio and Amazon's Dot. This jack can also charge many smart phones. Do not
exceed the jack's 5V/1A capacity. To play audio from an MP3 player, use Bluetooth
or an audio cable connected to the Auxiliary input.
6. Speaker: For use only with Como Audio's optional speaker for stereo sound.
7. Audio switch: When using Amico independently, set to Mono. When the optional
speaker is connected, set to ST (Stereo). When using two Amico's
together as a wireless stereo dedicated left and right pair, set one
Amico to L (Left) and the other to R (Right).
8. Reboot: Press briefly to reboot Amico if an issue occurs. You will not
lose any settings or need to repeat the setup process.
➢ Bass port: Rest your palm on the top of the cabinet and insert
fingers to carry.
4
