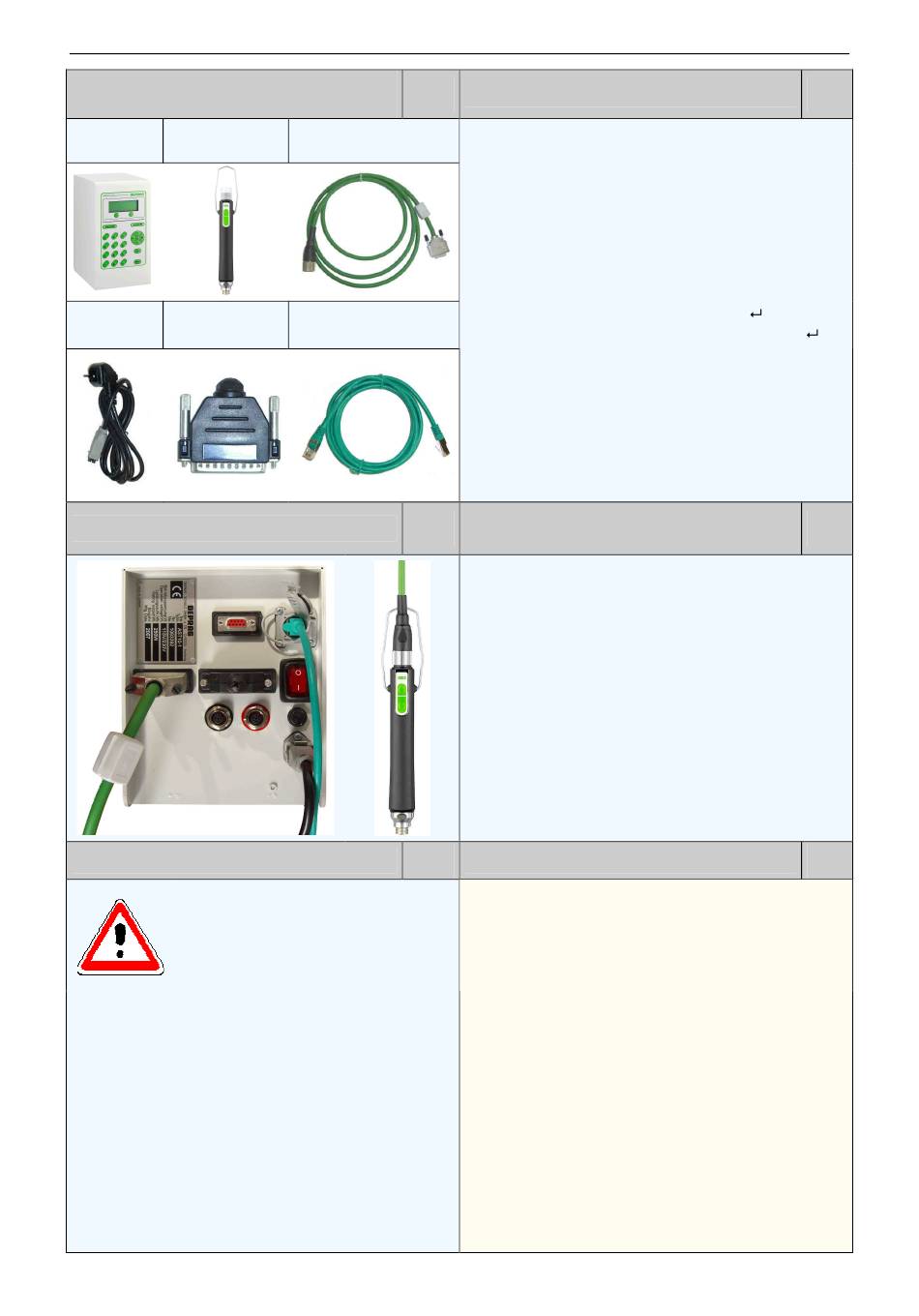

Required Components
(part of your order)
Controller
Screwdriver
AST10
Power
Jumper
cable
Connect the Components
ATTENTION
Observe minimum bending
radius of screwdriver cable.
Non-observance will cause
damage!
At constant motion:
Minimum bending radius 90 mm
•
At singular motion:
Minimum bending radius 45 mm
•
Please make sure that there is no mechanical load
on the cables during operation.
To assure best possible contact, the connections of
the cable to the controller and the screwdriver must
be solid.
Initial Operation of AST10 with Model 320E...
Handheld Screwdriver without PLC
1
Generate a Standard Program
The controller is supplied with one standard program,
Motor cable
which is suitable for the supplied screwdriver.
To generate a standard program, take the following
steps:
Turn-On the controller
•
Press the key „m" on the controller
•
Select the Menu Screwdriving Program (arrow
•
down until the cursor highlights the Menu Item
„Screwdriving Program", then press
Patch cable
Select standard program (arrow down, then
•
Press the left function key (YES), located be-
•
neath the display
Standard programs were established
•
Exit Menu (press ESC key, until main screen
•
appears)
The system is now ready for the first assemblies.
Sequence of Standard
2
Program
The handheld screwdriver starts either through push-
to-start or trigger start (depends on screwdriver mod-
el).
The program shown in the Menu Item Program Se-
lection will be started.
If the reverse (button or lever) is activated, then pro-
gram 16 will always start.
3
Establish Connection to PC
The web-interface can be operated using any readily
available operating system, such as Windows, Linux,
OS X ..., and functions with all known and current
browser.
To display the web-interface, the PC can be con-
nected directly to the controller or through a joint
network. For the direct connection, both crossover or
standard cables may be used; the controller recog-
nizes the cable type and establishes the correspond-
ing connection.
In order to use the web-interface, both the controller
as well as the browser must be prepared in such a
way, that a TCP/IP-connection can be built between
them.
In particular, both the controller as well as the PC,
need a fixed IP-address and not an automatically
selected address (DHCP must be disabled on the
PC). Both addresses must be located in the same
net-segment (Subnet).
4
)
)
5
6
