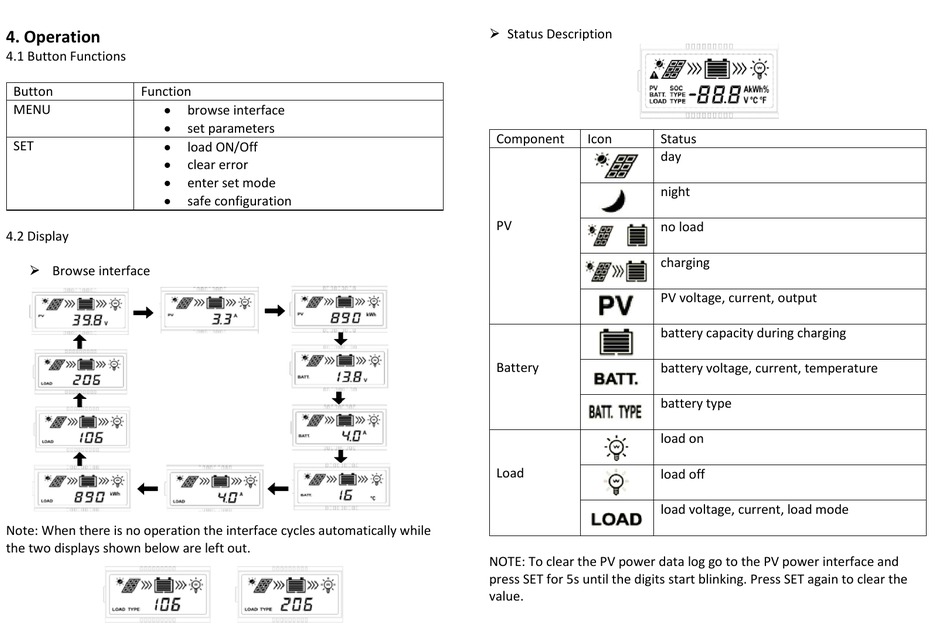

4. Operation

4.1 Button Functions
Button Function
MENU •
•
SET
•
•
•
•
4.2 Display
 Browse interface
Note: When there is no operation the interface cycles automatically while
the two displays shown below are left out.
browse interface
set parameters
load ON/Off
clear error
enter set mode
safe configuration
 Status Description
Component Icon Status
day
night
PV
no load
charging
PV voltage, current, output
battery capacity during charging
Battery battery voltage, current, temperature
battery type
load on
Load load off
load voltage, current, load mode
NOTE: To clear the PV power data log go to the PV power interface and
press SET for 5s until the digits start blinking. Press SET again to clear the
value.
