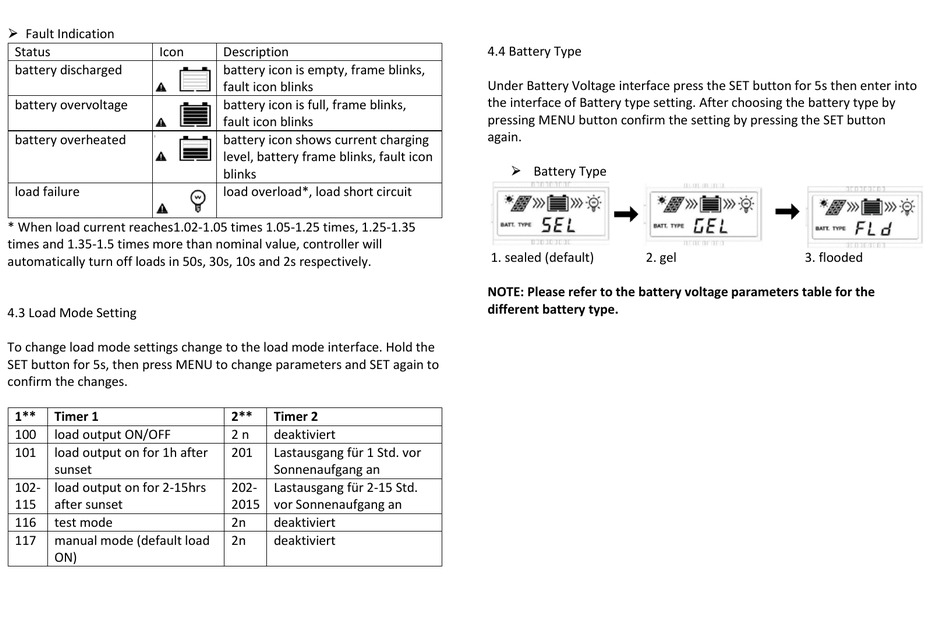

 Fault Indication
Status
Icon
battery discharged
battery overvoltage
battery overheated
load failure
* When load current reaches1.02-1.05 times 1.05-1.25 times, 1.25-1.35
times and 1.35-1.5 times more than nominal value, controller will
automatically turn off loads in 50s, 30s, 10s and 2s respectively.
4.3 Load Mode Setting
To change load mode settings change to the load mode interface. Hold the
SET button for 5s, then press MENU to change parameters and SET again to
confirm the changes.
1**
Timer 1
100
load output ON/OFF
101
load output on for 1h after
sunset
102-
load output on for 2-15hrs
115
after sunset
116
test mode
117
manual mode (default load
ON)
Description
battery icon is empty, frame blinks,
fault icon blinks
battery icon is full, frame blinks,
fault icon blinks
battery icon shows current charging
level, battery frame blinks, fault icon
blinks
load overload*, load short circuit
2**
Timer 2
2 n
deaktiviert
201
Lastausgang für 1 Std. vor
Sonnenaufgang an
202-
Lastausgang für 2-15 Std.
2015
vor Sonnenaufgang an
2n
deaktiviert
2n
deaktiviert
4.4 Battery Type
Under Battery Voltage interface press the SET button for 5s then enter into
the interface of Battery type setting. After choosing the battery type by
pressing MENU button confirm the setting by pressing the SET button
again.
 Battery Type
1. sealed (default)
2. gel
NOTE: Please refer to the battery voltage parameters table for the
different battery type.
3. flooded
