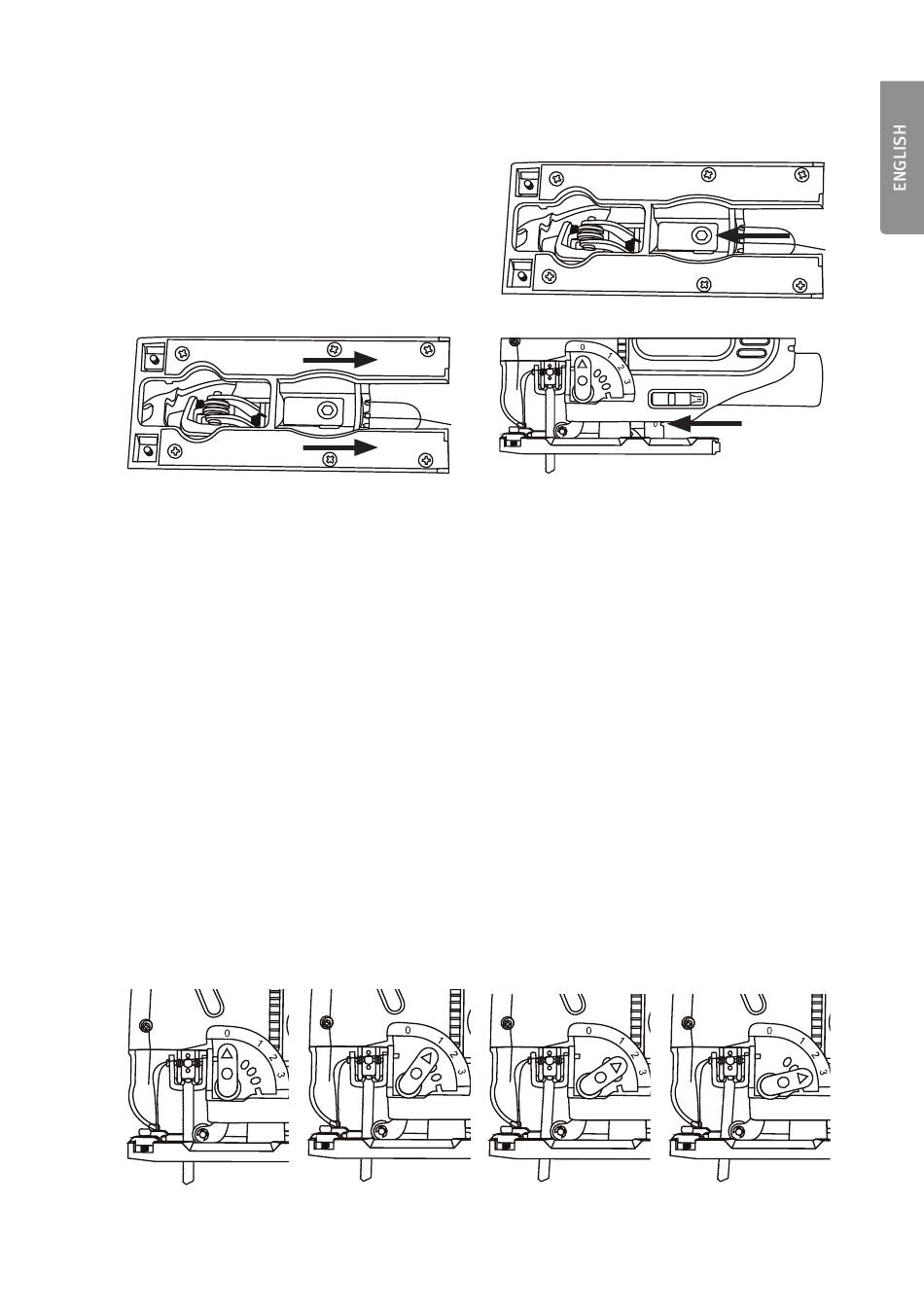

3.3 Adjusting the soleplate bevel angle

The soleplate (6) can be tilted up to 45° to the right or left.
1. Loosen the socket head screw on
the bottom of the soleplate.
2. Slide the soleplate (6) forwards and tilt it to the required angle. There are fixed
settings for -45°, 0° and 45°.
3. Tighten the socket head screw.
4. Check that the saw is set correctly by test-cutting a piece of scrap wood/metal
before sawing the workpiece. Adjust the angle if necessary.
Do NOT pull the soleplate (6) backwards if you want to set an angle other than
the fixed settings. Set the desired bevel angle and then tighten the set screw.

3.4 Setting the pendulum action

The pendulum action can improve cutting efficiency and the the setting can be
adjusted until the optimum setting for the material being cut has been found. However,
the swing of the pendulum action does create a rougher finish, so if a really fine finish
is required the pendulum action should be set to 0.
The pendulum action control (6) sets the degree of pendulum swing. There are 4 fixed
settings, turn the control carefully until it clicks into a setting.
• 0 – sheet metal, steel or rubber
• 1 – non-ferrous metals, hard woods, plastics
• 2 – wood
• 3 – wood (highest removal rate)
