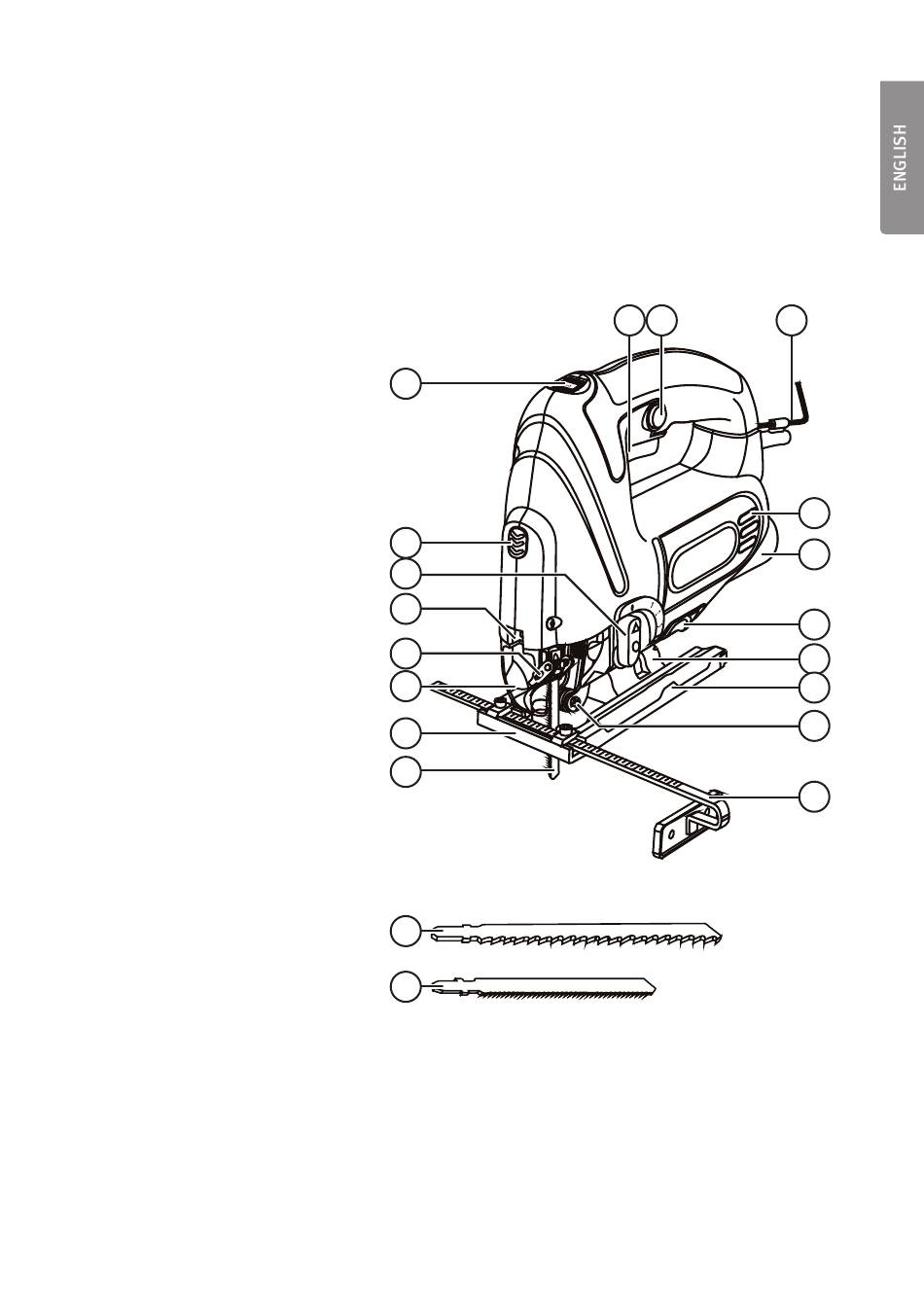

2. Product description

• Jigsaw
• Laser guide
• LED worklight
• Blower and dust extraction port
• Keyless blade holder for quick and easy blade changes
• Comes with parallel guide and saw blade
1. Saw blade
2. Edge guide slots with
set screws (2B)
3. Chip guard
4. Keyless blade holder with
lock (4B)
5. Laser
6. Pendulum action control
7. Laser/LED power switch
8. Speed selector control
9. Power switch
10. Trigger lock button
11. Allen key
12. Motor cooling vents
13. Dust extraction vacuum
adaptor
14. Sawdust deflector switch
The switch should be
forward to blow dust
away from sawing line and
backward when a dust
collector is attached.
15. Bevel angle scale
16. Soleplate
17. Blade guide roller
18. Parallel edge guide
19. Wood cutting blade
20. Metal cutting blade
