i)
During operation with the device it is produced dust
and debris, it is necessary to protect unauthorized
persons against their harmful effects.
REMEMBER! When using the device, protect children
and other bystanders.
3.3 Personal safety
a)
Do not use the device when tired, ill or under the
influence of alcohol, narcotics or medication which can
significantly impair the ability to operate the device.
b)
When working with the device, use common sense
and stay alert. Temporary loss of concentration whilst
using the device may lead to serious injuries.
c)
Use personal protection equipment as required
for working with the device, specified in section 1
(Legend). The use of correct, approved personal
protection equipment reduces the risk of suffering
an injury.
d)
To prevent the device from accidentally switching on,
make sure the switch is on the OFF position before
connecting to a power source.
e)
Do not overestimate your abilities. When using the
device keep your balance and remain stable at all
times. This will ensure better control over the device
in unexpected situations.
f)
Do not wear loose clothing or jewellery. Keep your
hair, clothes and gloves away from the moving parts.
Loose clothing, jewellery or long hair may get caught
in the moving parts.
g)
Remove all adjusting tools or spanners before
turning the device on. A tool or spanner left in the
revolving part of the device may cause injury.
3.4 Safe device use
a)
Do not overload the device. Use appropriate tools
for the given task. A correctly selected device will
perform the task for which it was designed better
and in a safer manner.
b)
Do not use the device if the ON/OFF switch does not
function properly (does not switch the device on and
off). Devices which cannot be switched on and off
using the ON/OFF switch are hazardous, should not
be operated and have to be repaired.
c)
When not in use, store in a safe place, away from
children and people not familiar with the device, who
have not read the user manual. The device may pose
a hazard in the hands of inexperienced users.
d)
Maintain the device in a good technical state. Before
each use check for general damage and especially
check for cracked parts or elements and for any other
conditions which may impact the safe operation of
the device. If damage is discovered, hand over the
device for repair before use.
e)
Keep the device out of the reach of children.
f)
Device repair or maintenance should be carried out
by qualified persons, only using original spare parts.
This will ensure safe use.
g)
To ensure the operational integrity of the device, do
not remove factory fitted guards and do not loosen
any screws.
h)
When transporting and handling the device between
the warehouse and the destination, take into account
the occupational health and safety principles for
manual transport operations which apply in the
country where the device will be used.
8
i)
Avoid situations where the device halts during use due
to excessive loading. This may result in overheating of
the drive elements and device damage.
j)
Do not touch articulated parts or accessories, unless
the device has been disconnected from the power
source.
k)
The specified vibrations emission was measured
using standard measurement methods. Vibrations
emissions may change if the device is used in different
surroundings.
l)
When working with the machine, it is necessary to pay
special attention to the recoil phenomenon, which
is a sudden reaction of the machine to blockade of
the rotating working tip. The rotating tool blockade
sequence is a swing of the machine in the opposite
direction to the rotation direction of the working tip.
Recoiling is the result of incorrect machine use .
m)
Regularly clean the ventilation slots of the machine.
n)
Do not place the battery with metal objects that could
cause short-circuit of the battery contacts.
o)
Do not store batteries near heat sources, this may
even lead to battery explosion.
p)
Charge the batteries at room temperature. If the
battery is hot, it is necessary to wait until it cools down
before charging it.
q)
The maximum rotational speed specified on the
working tip of the device may not be less than the
maximum rotational speed of the device.
4. Use guidelines
The battery fillet weld grinder is a device designed for
polishing and grinding welds, seams and elements located
in hard-to-reach places.
The user is liable for any damage resulting from non-
intended use of the device!

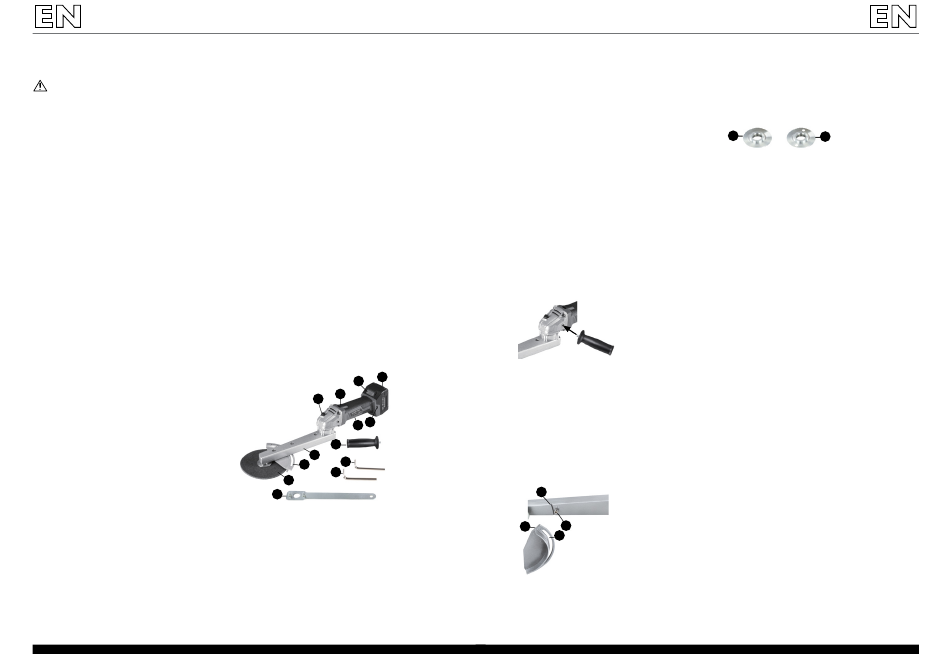

4.1 Device description
4
3
2
1
5
6
10
7
11
8
12
9
13
1.
Spindle lock
2.
On / off switch
3.
Battery lock button
4.
Battery
5.
Rotational speed controller
6.
Carbon brush sheath
7.
Arm of the holder
8.
Lid
9.
Disc
10.
Handle
11.
Allen key 1
12.
Allen key 2
13.
Key
Rev. 11.04.2018
4.2 Preparing for use
Battery charging
Attention: To connect/disconnect the battery, make sure
the device is off.
•
Press the lock button (3) and slide the battery out
of the device.
•
Connect the charger to a power source.
•
Connect the battery to the charger. A red light on
the charger will come on. The charger may be warm
and emit a buzzing sound. This is normal and does
not indicate incorrect operation.
•
Once the battery is fully charged, a green light on
the charger will come on. Disconnect the charger
from the power source and reinsert the battery into
the device. An indication of the correct installation of
the battery is the clicking sound when the battery is
placed in the device.
•
In case of not using the device, it is necessary to
charge the battery once every six months.
•
In order to prolong the battery life it is necessary not
to allow full discharging.
Mounting of the handle
The user of the tool has the option of mounting a handle
for holding the tool on the left or right side according to
personal preferences.
In order to mount the handle, it is necessary to screw it
clockwise into the hole in the tool as shown in the picture
below.
Installation of the shield and the disc
•
Before assembly / disassembly of the the shield and
the disc, it is necessary to make sure that the device
is switched off.
•
The mounted disc must have parameters consistent
with the technical data given in the table.
•
In order to mount the shield, in the first place, it is
necessary to remove the screw (b) from the device
arm (7) by means of the smaller key from the Allen
wrenches (11). Then apply the shield (8) to the arm,
placing the protruding element (d) in the groove
(a). The shield slot (c) may not cover the screw hole.
Move the screw (b) through the slot (c) in the shield,
screw it.
a
b
d
c
•
In order to adjust the position of the shield according
to needs it is necessary to loosen the screw that
fastens the shield (b), set the shield by moving it along
the slot in the shield (c). Tighten the fastening screw.
•
In order to fasten the disc in the device onto the
threaded spindle, located at the end of the arm it is
necessary to put the collar without holes (e), put the
shield (9) and then put the collar with holes (f).
Rev. 11.04.2018
•
Fasten the disc using the larger Allen key (12) and
the key (13). It is necessary to place the protruding
mandrels of the key (13) in the holes in the collar (f),
the end of the Allen key (12) must be placed in the
hexagonal hole of the spindle. Holding the spindle
with the Allen key, so that the spindle cannot move,
screw the disc by means of the key (13). In order
to disassemble the disc it is necessary to proceed
analogously to its assembly.
e
f
•
Always verify whether the working tip has been
properly mounted in the device.
4.3 Device use
Turning on the device
In order to turn the device on, it is necessary to move the
switch (2), until it locks. In order to switch off, it is necessary
to release the button (2) by pressing it. Before switching the
device on, it is necessary to always make sure whether the
spindle is not blocked by the lock (1). After switching off,
the device should be put aside only when the moving parts
have stopped completely.
Rotational speed control
The rotational speed of the device is set by turning the
knob (5) to the selected position (min. 1 – max. 6).
Tips for use:
•
Hold the device with both hands: hold the handle
with one hand and the holder with the other hand.
•
Before starting to use the device, it is necessary to
always make sure whether the working tip is properly
mounted.
•
In order to achieve the best results, the treated surface
should be clean, dry and free from contamination.
•
It is forbidden to block the spindle with the lock (1)
in the course of operation of the device, it may cause
damage to it.
•
Always use the device with the installed shield.
4.1 Cleaning and maintenance
•
Before cleaning, remove the battery from the device.
•
Use cleaners without corrosive substances to clean
each surface.
•
Clean the vents with a paintbrush and compressed air.
•
Do not leave the battery in the device, if it will not be
used for a longer amount of time.
•
Store the unit in a dry, cool place, free from moisture
and direct exposure to sunlight.
SAFE REMOVAL OF BATTERIES AND RECHARGEABLE
BATTERIES
18V lithium-ion batteries are installed in the device. Worn
batteries must be removed from the device proceeding
analogously to their installation. Recycle batteries.
DISPOSING OF USED DEVICES
Do not dispose of this device to municipal waste systems.
Hand it over to electric and electrical device recycling and
collection point. Check the symbol on the product, user
manual and packaging. The plastics used to construct the
device can be recycled in accordance with their markings.
By recycling, you are making a significant contribution to
the protection of our environment. Contact local authorities
for information on your local recycling facility.
9
