JETI model BOX MINI Gebrauchsanweisung Seite 6

EN
1. Measurement of receiver channel output pulse widths
By means of this application the width of the output pulse of any arbitrary Rx channel
output can be measured. Furthermore, measurement of the receiver battery supply voltage is
also possible. Connect the receiver batteries to the receiver. With the aid of the connecting cable
as delivered along with the JETI Box connect socket BLUE with a definite RX channel
output. Switch on the transmitter and receiver. The display shows now IMPULS
DETECTION and you can read the values of the output pulse width in ms and the Rx
battery voltage.
2. Servo pulse generator
This JETI Box application renders the generation of servo controlling pulses as well as the
measurement of the servo supply voltage possible. By means of the push-buttons you can
change the range from 1,024 ms to 2,047 ms either in steps of thousendth or
hundredth of a ms. This function is for instance very well suited for setting the center position of
a servo (1,500 ms) without receiver and transmitter. Connect batteries and servo.
The pulse width can be set by means of all four push-buttons:
With push-button L the pulse becomes narrower in steps of 0,001 ms
With push-button D the pulse becomes narrower in steps of 0,01 ms
With push-button U the pulse becomes wider in steps of 0,01 ms
With push-button R the pulse becomes wider in steps of 0,001 ms
3. Servo cycler
In this application it is possible to set the number of cycles, the servo throw and the
cycling speed. This item serves for verification of longevity, burning in and function tests of
servos. Connect batteries and servo and choose by means of push-buttons L and R the function

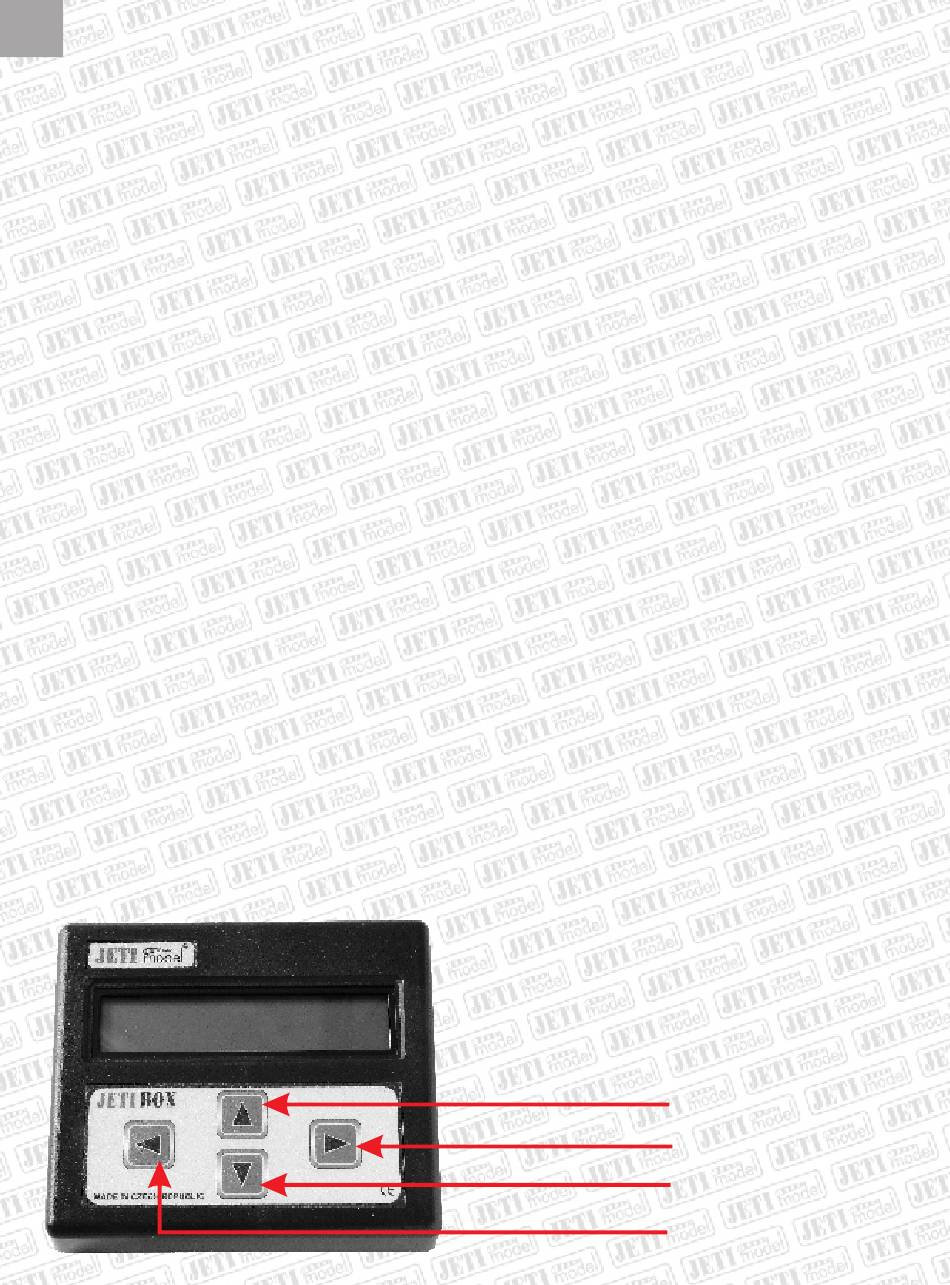

U
Button UP
R
Button right
Button dowm D
Button left L
6
