Operating mode footswitch
SOUND
AUTO
Function Description
AUTO Press AUTO to activate automatic Programme
SOUND Press SOUND to activate Sound 2 Light Programm. Every headlight
operates in sound 2 light mode afterwards.
COLOR Static colour change
BLACKOUT Lights out

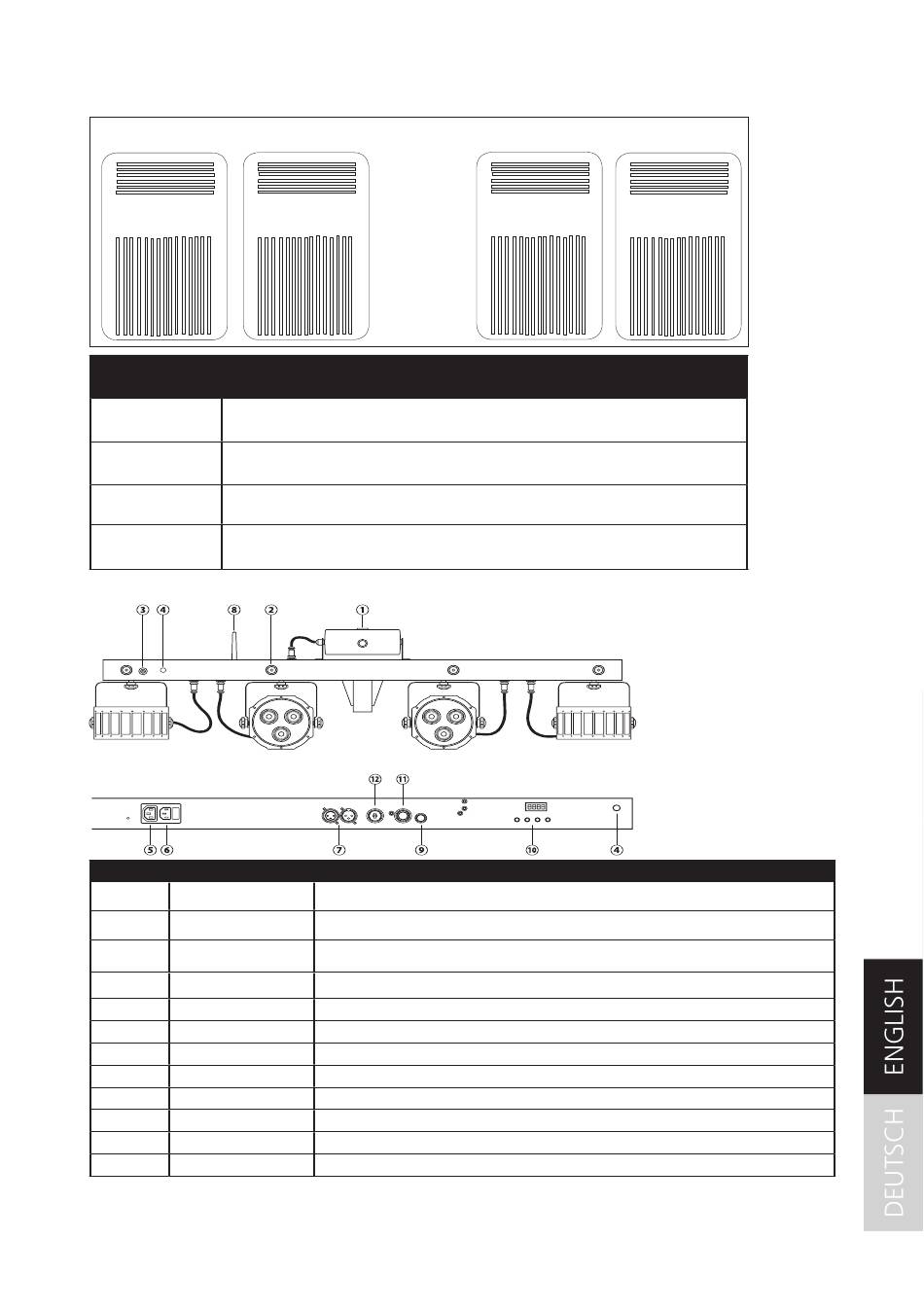

Connections & operating elements
Number Function
1 On/Off
2 LED Strobe Lights 4x1 Watt LED Strobe, white
3 Microphone
4 IR Sensor
5 Power Link
6 Power input
7 DMX in/output
8 Wireless antenna Recieves the signal from footswitch
9 Knobs
10 LED Display
11 Remote Switch
12 Key switch
Description
Laser unit! Do not look directly into the openning!
microphone for sound 2 Light function
Sensor for the Infrared remote control
For sharpening the power signals
Mains connection
DMX input and output, 3-Pole
microphone sensitivity settings Sound 2 Light mode
Display for setting the functions
Input for emergency switch
turning the power on/off switch
COLOR BLACKOUT
Front
Back
