1.2

Installation of two expansion cards

Two expansion cards can be mounted in some terminals. They are mounted in
parallel to the connector on the CPU card in the terminal. Two expansion cards
can be connected via one expansion cable since there is a parallel contact on the
cable. The connector in the middle is used for the expansion card placed in
Slot 1 and the end connector is used for the expansion card placed in Slot 2. If
only one card is used either connector can be used.
The connector X1 on the expansion card in Slot 2 is connected to the connector
X1 and the CPU card in the terminal via the X1 connector on the expansion
card in Slot 1. If the X2 connector on the CPU card in the terminal is used by
any or both cards, this connector is connected to the X2 connector on the
expansion card.

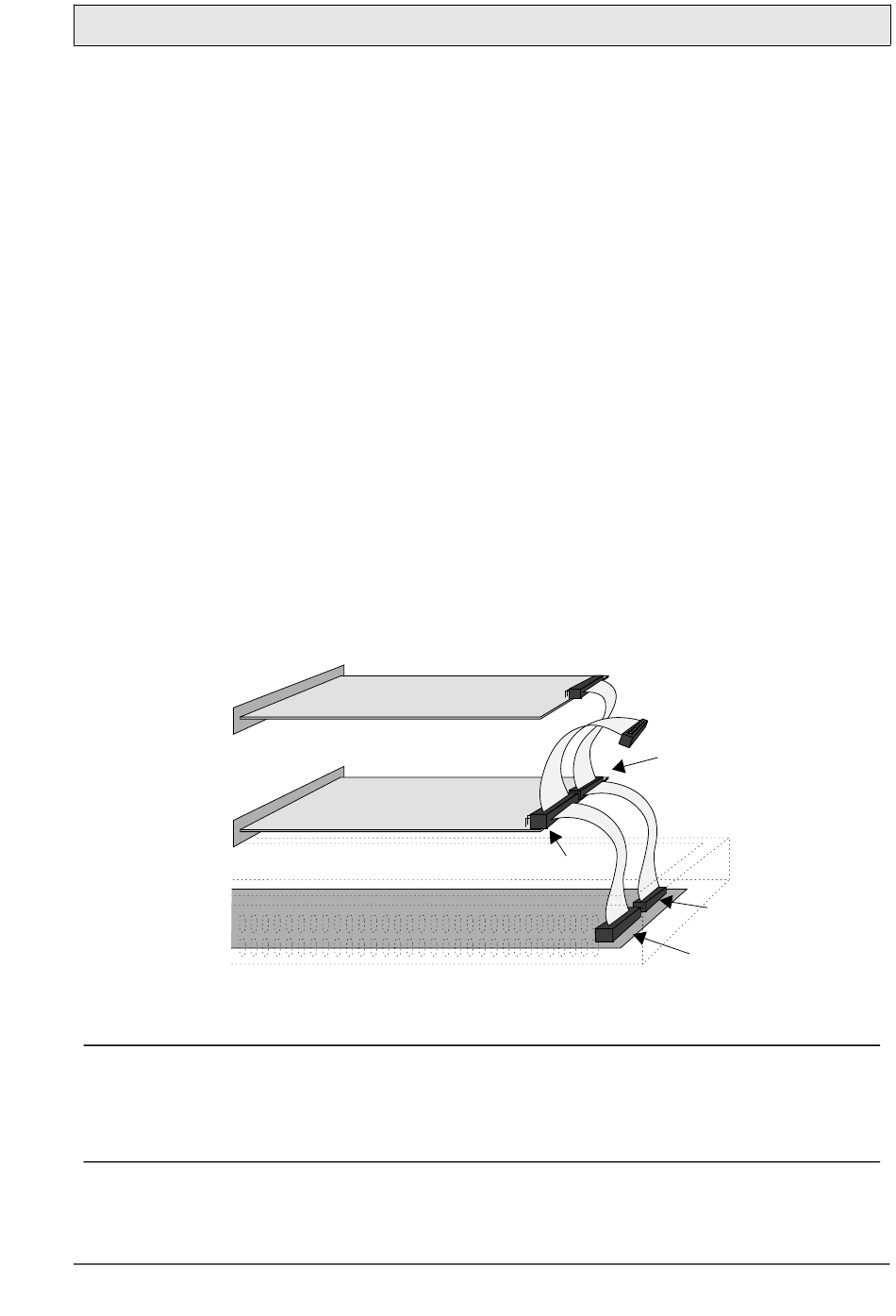

When two expansion cards are mounted in the same terminal the card in Slot 1
is mounted with the distances and the card in Slot 2 with the screws in the dis-
tances.
Card in
Slot 2
Card in
Slot 1
Note!
Only one IFC MC can be used in the terminal.
To use the memory card for autoload of a terminal project, it has to be mounted
in Slot 1.
ABB, 1SBC159005M0401
X1
X1
X2
X1
X2
Installation
9
