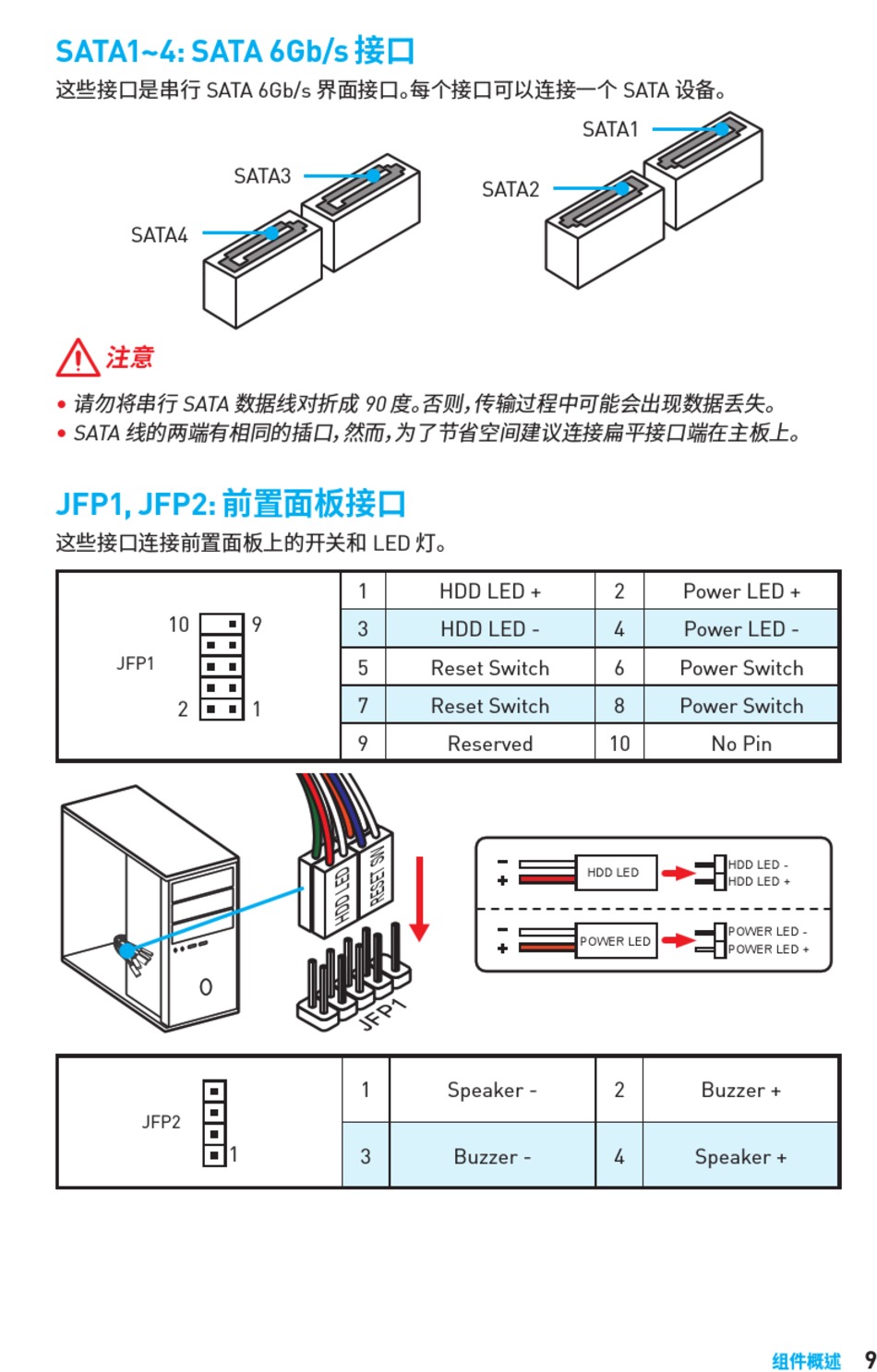

SATA1~4: SATA 6Gb/s �口
这��口是串行 SATA 6Gb/s 界面�口� 每个�口可�连�一个 SATA 设备�
SATA4
注意
请勿将串行 SATA 数据线对折成 90 度� 否则, 传�过�中可�会出现数据丢失�
y
SATA 线的两端�相同的�口, �而, 为了节省�间建议连��平�口端在主�上�
y
JFP1, JFP2: �置面��口
这��口连��置面�上的开关和 LED ��
10
JFP1
2
JFP2
SATA3
1
9
3
5
7
1
9
1
1
3
SATA1
SATA2
HDD LED +
HDD LED -
Reset Switch
Reset Switch
Reserved
HDD LED
POWER LED
Speaker -
Buzzer -
2 Power LED +
4 Power LED -
6 Power Switch
8 Power Switch
10 No Pin
HDD LED -
HDD LED +
POWER LED -
POWER LED +
2 Buzzer +
4 Speaker +
组件概述
9
