Quick Start Guide

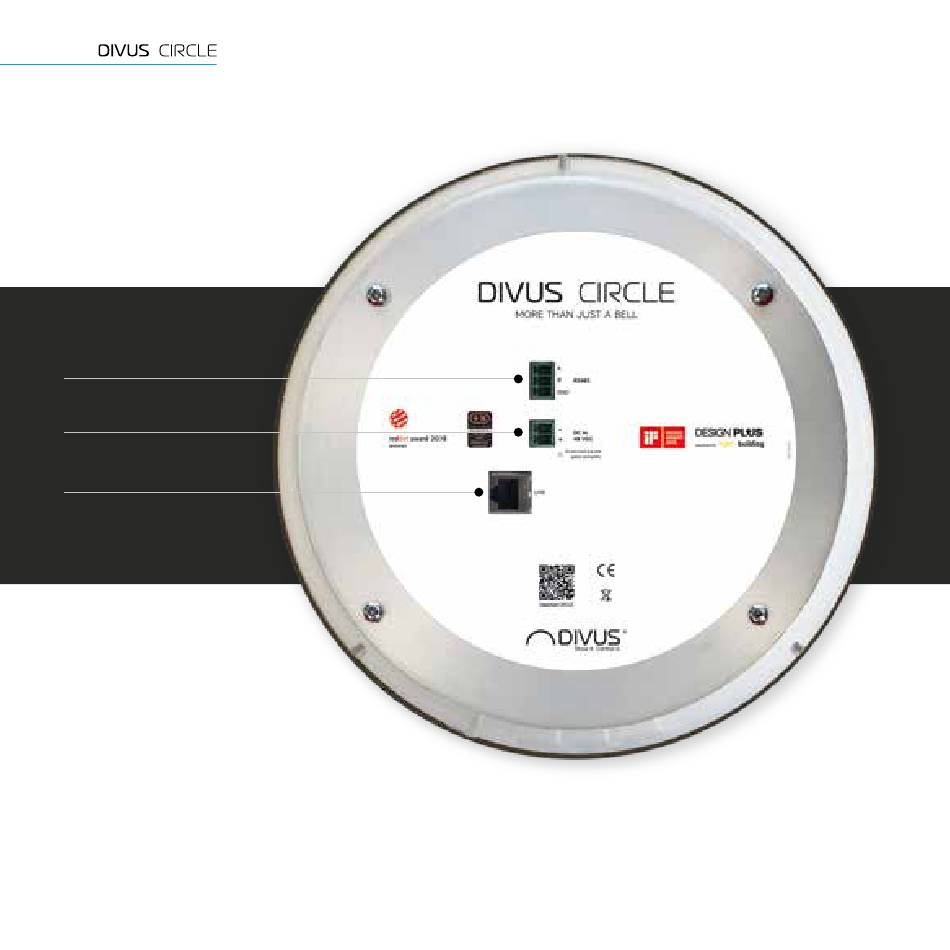

REAR CONNECTIONS

RS 485
DC in
LAN
RS-485 - I/O MODULE:
A
B
GND
POWER SUPPLY DC IN 48 VDC:
- GND
+ 48VDC (0.8 A min)
ETHERNET:
LAN - RJ45
