Trouble shooting
You can carry out a number of checks yourself before sending a product for repair.

Troubleshooting guide

Symptom
Nothing happens.
The LED (1) blinks.
The LEDs in the Snooze Button (4) do not come on
when the alarm clock is switched on.
The Alarm Clock does not emit any sound signals.
The Alarm Clock does not emit any flash signals.

Technical information

Power supply
Mains power:
Battery power:
Charging:
Activation
Alarm call
U
Analogue telephone network: 26 - 120 V RMS, 15 - 100 Hz.
External trigger:
Solution
•
•
•
•
•
7.5 V DC / 1500 mA with power supply unit BE9216 (Europe) and
BE9217 (United Kingdom).
Internal NiMh type back-up battery. The internal back-up battery must
be changed at a service workshop.
Via the power supply unit. The discharged back-up battery will take at
least 24 hours to charge.
Built-in clock/alarm call function
3.5 mm stereo (mono provides a connection) jack plug.

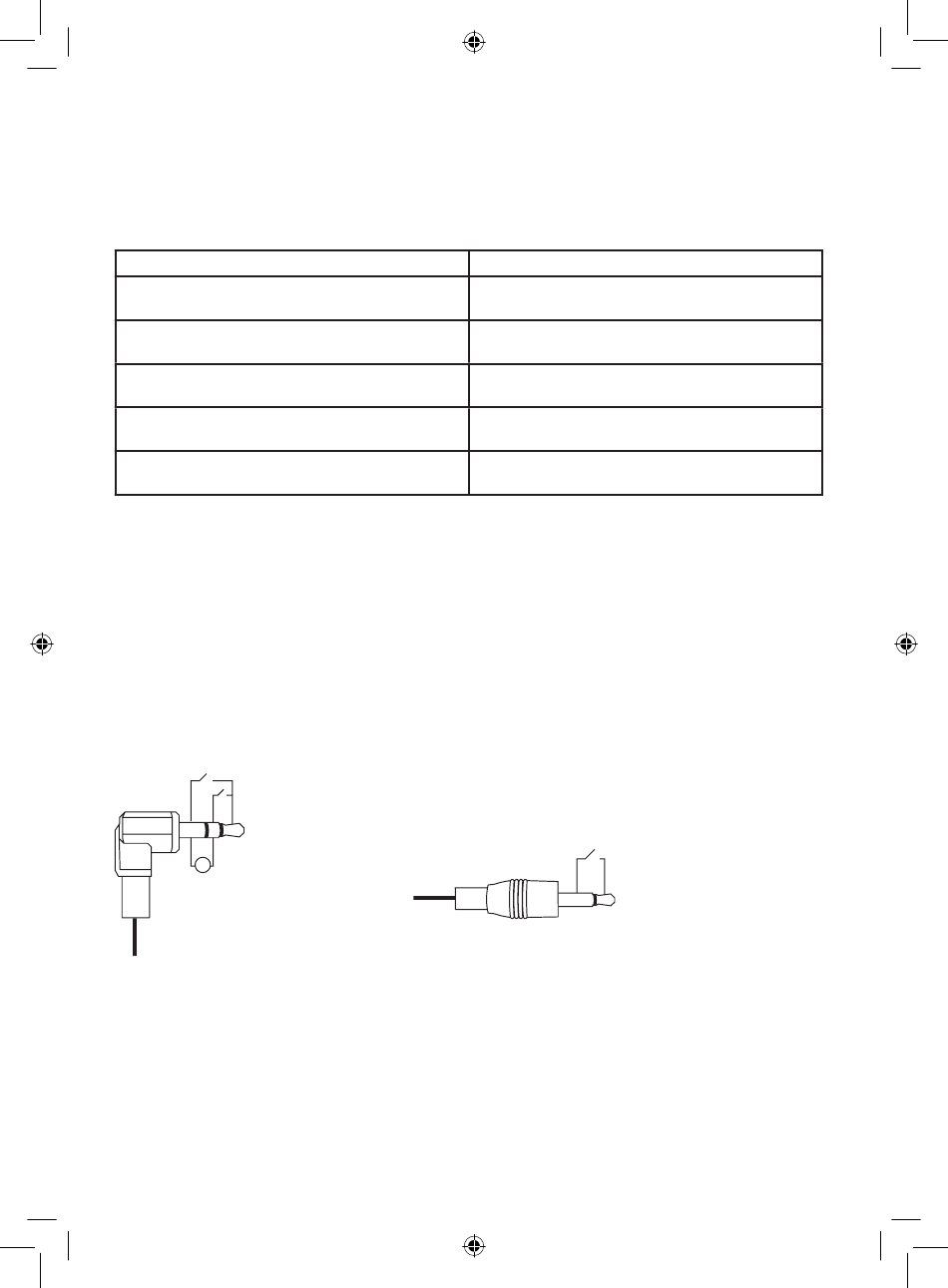

Connection: between the inner and outer pins of the mono type 3.5 mm
jack plug o r between the middle/inner and outer pins of the stereo type 3.5
mm jack plug, see diagram.
DC: 2 to 30 V between the inner pin and middle pin on the stereo type
3.5 mm jack plug, see diagram.
AC: 3 to 24 V RMS 5 -150 Hz between the inner pin and middle pin on
the stereo type 3.5 mm jack plug, see diagram.
Check that the power supply unit is
connected correctly.
Check that the power supply unit is
connected correctly.
Check that the power supply unit is
connected correctly.
Check that the Sound Switch (7) is in the
ON position.
Check that the Flash Switch (9) is in the ON
position.
