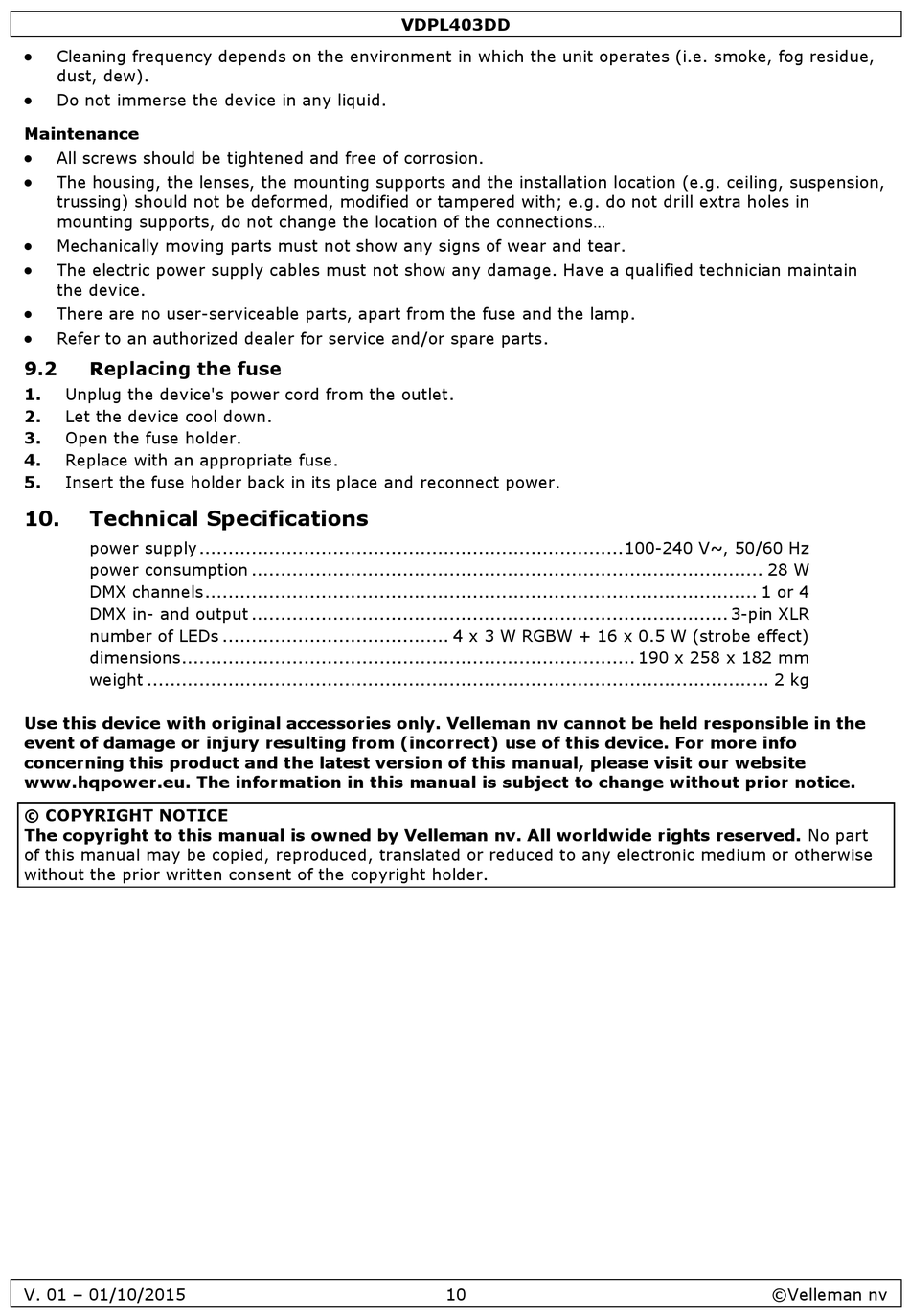

Cleaning frequency depends on the environment in which the unit operates (i.e. smoke, fog residue,
dust, dew).

Do not immerse the device in any liquid.
Maintenance

All screws should be tightened and free of corrosion.

The housing, the lenses, the mounting supports and the installation location (e.g. ceiling, suspension,
trussing) should not be deformed, modified or tampered with; e.g. do not drill extra holes in
mounting supports, do not change the location of the connections...

Mechanically moving parts must not show any signs of wear and tear.

The electric power supply cables must not show any damage. Have a qualified technician maintain
the device.

There are no user-serviceable parts, apart from the fuse and the lamp.

Refer to an authorized dealer for service and/or spare parts.
9.2

Replacing the fuse

1. Unplug the device's power cord from the outlet.
2. Let the device cool down.
3. Open the fuse holder.
4. Replace with an appropriate fuse.
5. Insert the fuse holder back in its place and reconnect power.
10.

Technical Specifications

power supply ......................................................................... 100-240 V~, 50/60 Hz
power consumption ........................................................................................ 28 W
DMX channels ............................................................................................... 1 or 4
DMX in- and output .................................................................................. 3-pin XLR
number of LEDs ....................................... 4 x 3 W RGBW + 16 x 0.5 W (strobe effect)
dimensions .............................................................................. 190 x 258 x 182 mm
weight ........................................................................................................... 2 kg
Use this device with original accessories only. Velleman nv cannot be held responsible in the
event of damage or injury resulting from (incorrect) use of this device. For more info
concerning this product and the latest version of this manual, please visit our website
www.hqpower.eu. The information in this manual is subject to change without prior notice.
© COPYRIGHT NOTICE
The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part
of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise
without the prior written consent of the copyright holder.
V. 01 – 01/10/2015
