RPE
PREPARATION
Locate Mounting Site
WARNING:
IMPROPER INSTALLATION MAY LEAD TO
PROJECTOR MOUNT FALLING CAUSING SEVERE
PERSONAL INJURY OR DAMAGE TO EQUIPMENT! It is
the installers responsibility to make certain the structure to
which the projector mount is being mounted is capable of
supporting five times the weight of the projector mount and all
attached equipment. Reinforce the structure as required
before installing the projector mount.
1. Determine required position of the RPE projector mount.
2. Determine required distance of the projector mount from the
screen using the lens-to-screen distance information.
NOTE:
Proceed to Installing to a CPA pipe, Installing to 1-
1/2" Threaded Extension Column, Installing to
Wood Framework (Joists), or Installing to Threaded
Rod section, as appropriate.

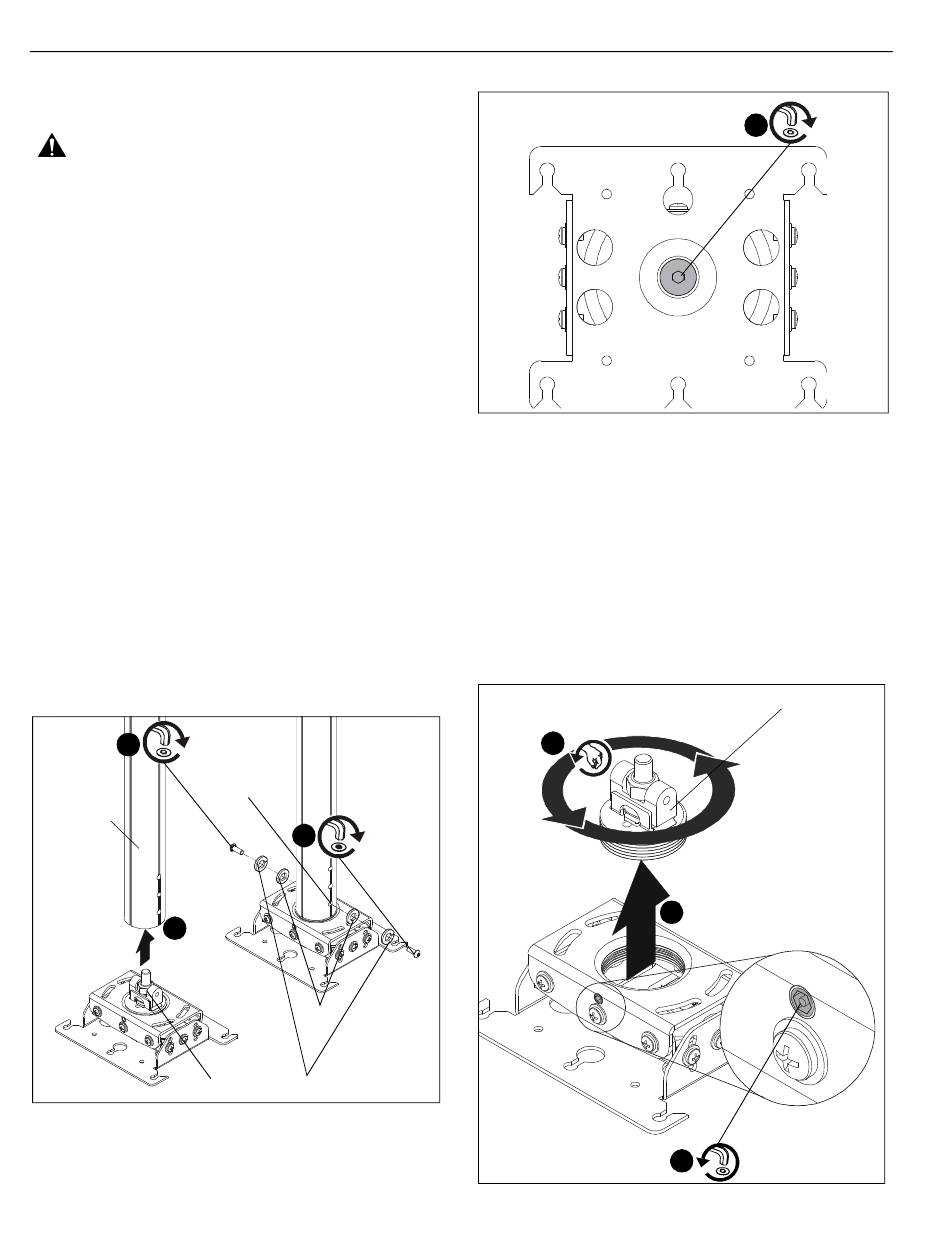

INSTALLATION
Installing to a CPA Pipe
1. Making sure holes are aligned on RPE's CPA adapter and
CPA column (not included), lift RPE into bottom opening of
CPA column. (See Figure 1)
2. Install either one M6x16 button head screw (C) or security
screw (D) through M6 lock washer (E) and M6 flat washer
(F) into hole on side of CPA pipe where the adapter plate on
CPA adapter is located. (See Figure 1)
3. On the opposite side of CPA pipe, use the other M6x16
button head screw (C) or security screw (D), an M6 lock
washer (E) and an M6 flat washer (F) to secure RPE (A) to
CPA column. (See Figure 1)
(C) or (D)
3
hole on side
of adapter plate
CMA pipe
(not included)
1
CPA adapter
Figure 1
4. Use "L"-shaped M6 hex key (E) to tighten bottom bolt
holding RPE to extension column. (See Figure 2)
4
2
(C) or (D)
(E) x 2
(F) x 2
(bottom view)
Figure 2
5. Proceed to "Projector Installation" Section.
CPA Adapter Removal
NOTE:
If installing RPE to anything other than a CPA column,
the CPA adapter portion must be removed from RPE
mount prior to installation.
1. Loosen set screw holding CPA adapter to RPE mount. (See
Figure 3)
2. Turn CPA adapter counter-clockwise until threads are no
longer engaged with RPE. (See Figure 3)
3. Remove CPA adapter from RPE. (See Figure 3)
2
Figure 3
Installation Instructions
4
CPA adapter
3
1
