 The VDPLDJBAR7 can be mounted in any position. Make sure adequate ventilation is provided around the
product.
 The bracket adjustment knobs allow for directional adjustment when aiming the product to the desired
angle. Only loosen or tighten the bracket knobs manually. Using tools could damage the knobs.
 Choose a suitable mounting spot. Mount the device in the desired angle using the included bracket. Connect
the power cord to the mains. Disconnect after use.
Stand
 Set up the stand to its desired position.
 Slide the T-bar onto the stand and tighten all fasteners.
Rigging
 The carrying construction must be able to support 10 times the weight of the device for 1 hour without
deforming.
 The installation must always be secured with a secondary attachment such as a safety cable (e.g. VDLSC7N
or VDLSC8N). The secondary attachment shall be designed and mounted in such a way that no part of the
device can fall if the primary attachment fails.
 Make sure that the safety cables can carry 10 times the weight of the device. Make sure that the maximum
height of drop is limited so that no injuries can occur. If the safety cables are long, wrap them around the
truss multiple times to reduce the height of drop to a safe level.
 Never stand directly below the device when it is being mounted, removed or serviced. Have a qualified
technician check the device once a year and once before you bring it into service.
 Install the device in a location with few passers-by that is inaccessible to unauthorised persons.
 Overhead mounting requires extensive experience: calculating workload limits, determining the installation
material to be used... Have the material and the device itself checked regularly. Do not attempt to install
the device yourself if you lack these qualifications as improper installation may result in injuries.
 Make sure there is no flammable material within a 0.5 m radius of the device.
8. Connections
Power
Connect the device to the mains with the power plug.
All devices must be powered directly off a grounded switched circuit.
Do not connect the device to a rheostat or dimmer circuit, even if the rheostat or dimmer channel is used solely
for 0 % to 100 % switching.
 Have a qualified electrician carry out the electric connection.
 The device has a power output to supply power to another device. When connecting several devices in a
daisy chain via this output, make sure that the total current does not exceed the power line's nominal
current. Use power cables with an adequate section. If you do not use the power linking feature, be sure to
use the included screw-on cap to prevent any water from getting into the power cords.

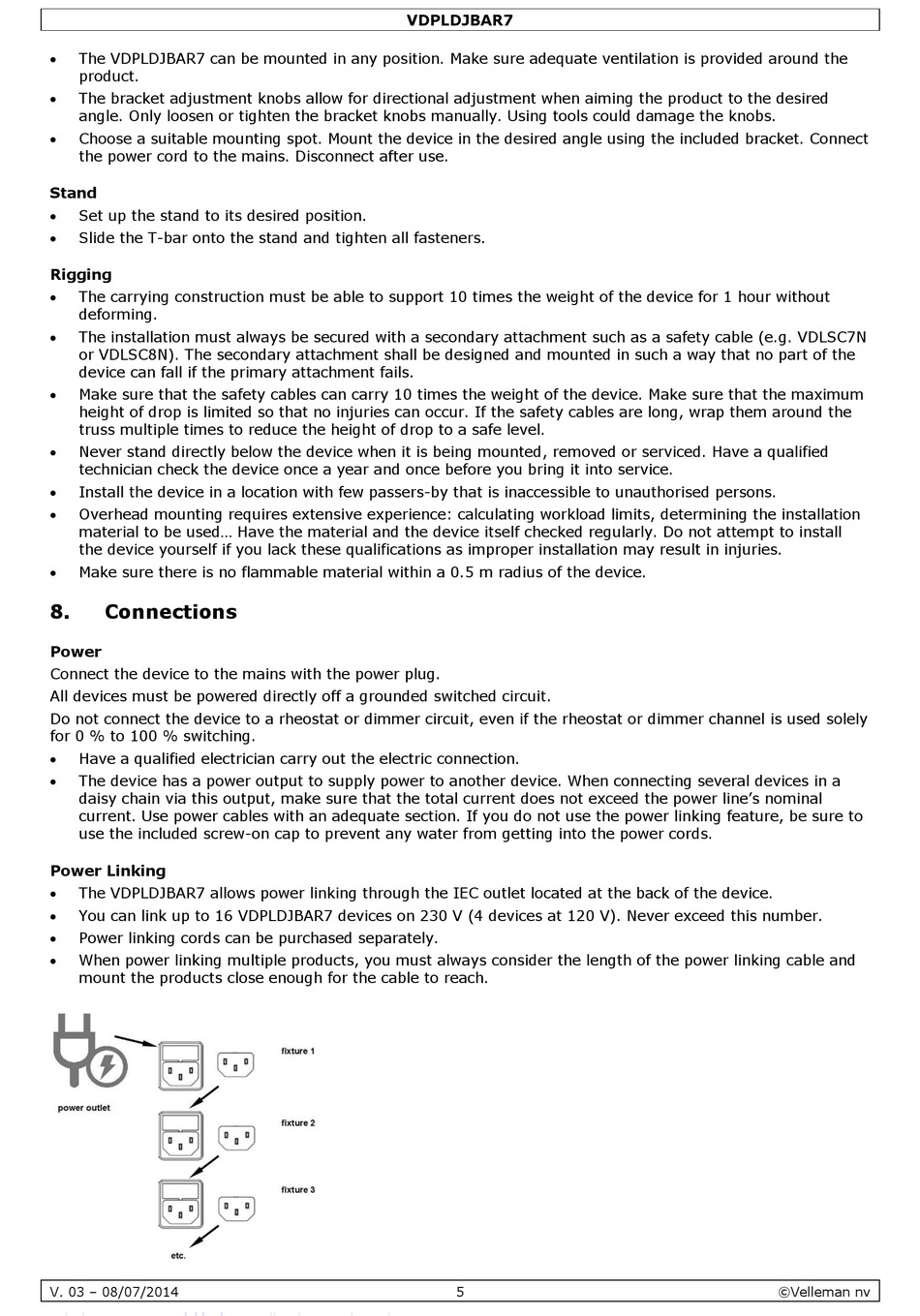

Power Linking

 The VDPLDJBAR7 allows power linking through the IEC outlet located at the back of the device.
 You can link up to 16 VDPLDJBAR7 devices on 230 V (4 devices at 120 V). Never exceed this number.
 Power linking cords can be purchased separately.
 When power linking multiple products, you must always consider the length of the power linking cable and
mount the products close enough for the cable to reach.
