ASSEMBLY STEP

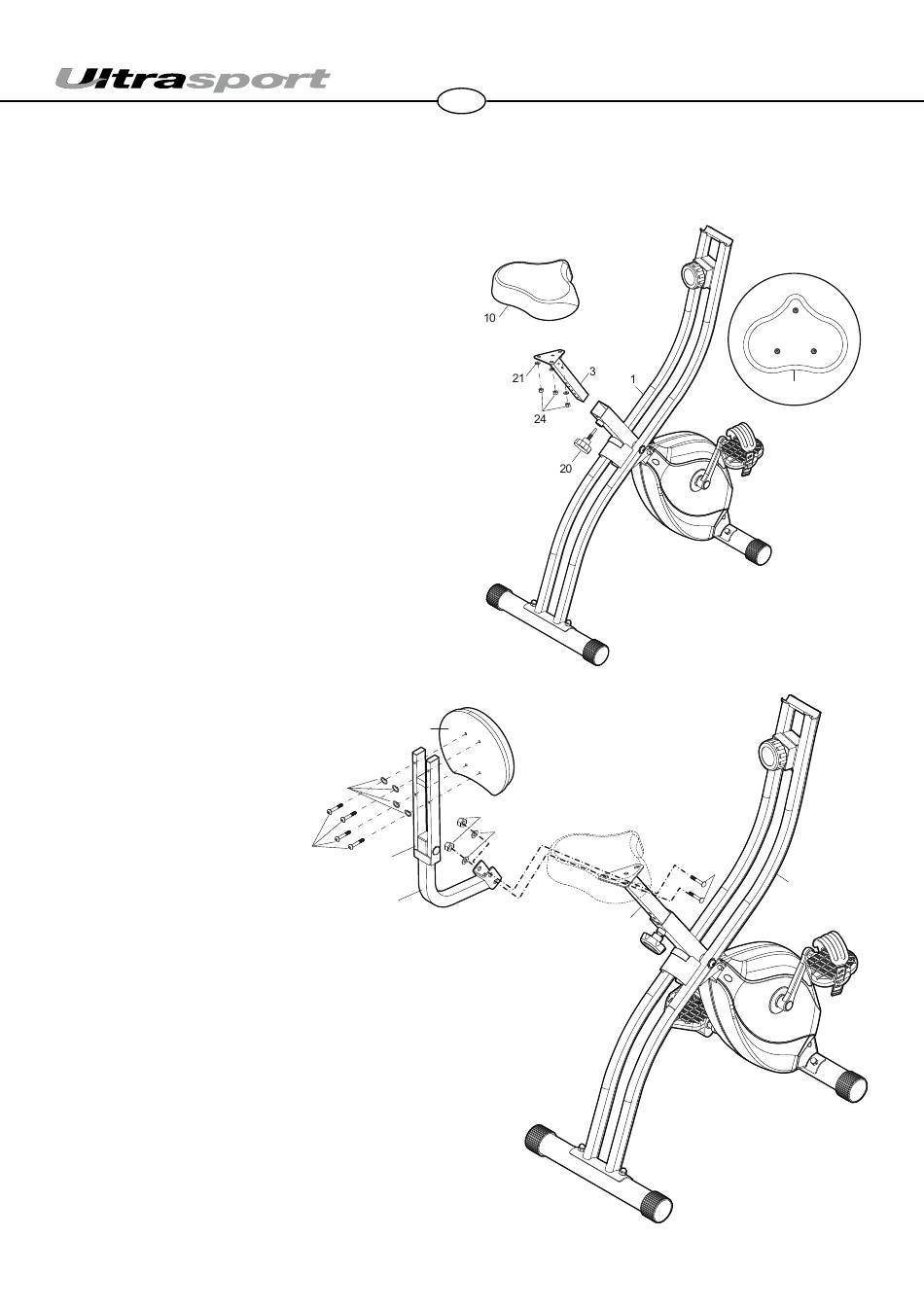

Step 3
• Lock the seat (10) to the seat post (3)
with nut (24) and flat washer (21), then
insert into the main frame (1). Line up
the holes and secure the seat in position
with the adjustment knob (20).
• The correct height for the seat can be
adjusted.
Step 4
• Fix the backrest adjustable tube (18) to the seat post (3)
with 2 x carriage bolts (25), flat washers (6) and nuts (24),
then fix the backrest (9) to backing tube (23) with 4 x
screws (27) and spring washers (26).
