ADA-DF 12 / -DF 13

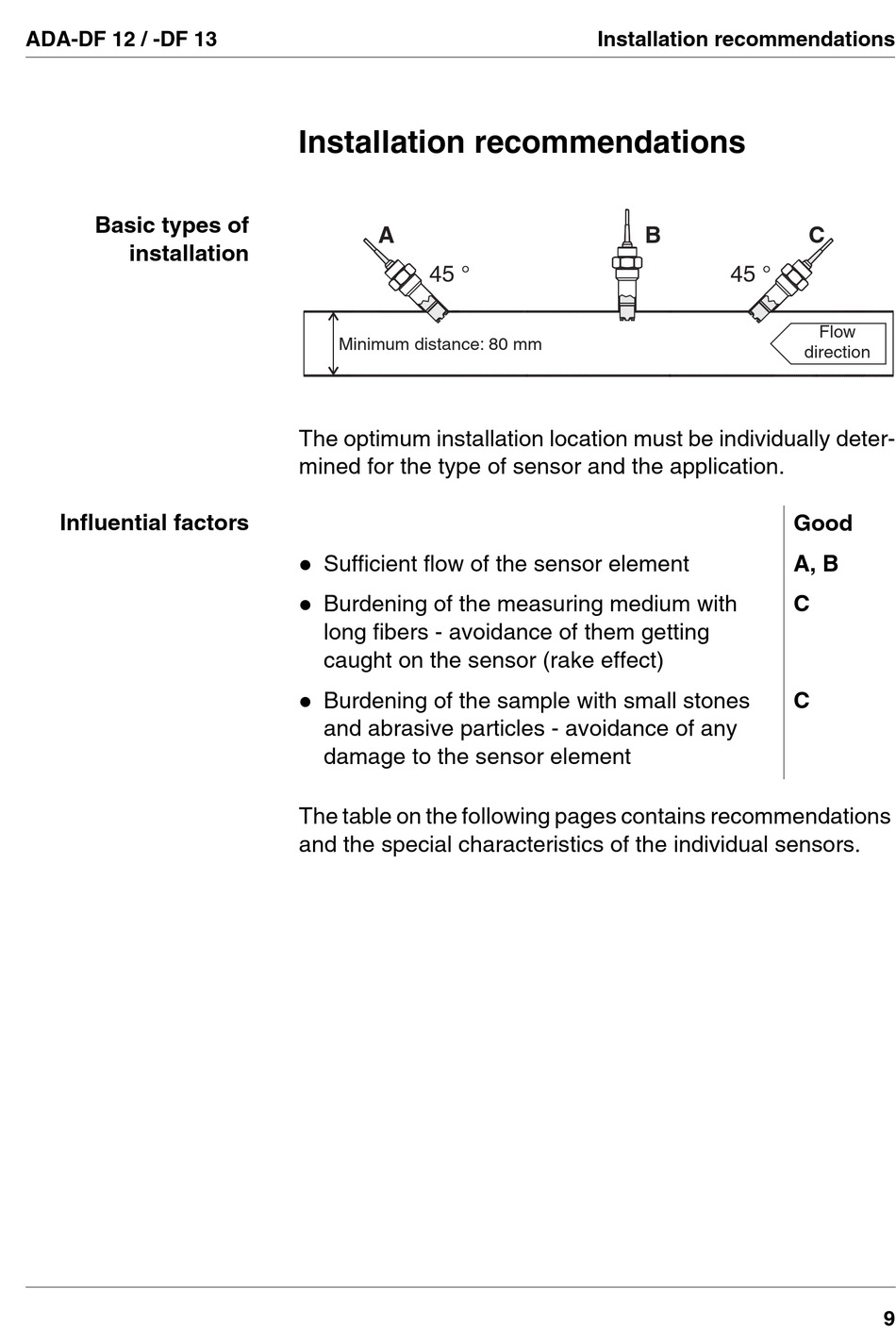

Basic types of
installation
Influential factors

Installation recommendations

A
45 °
Minimum distance: 80 mm
The optimum installation location must be individually deter-
mined for the type of sensor and the application.
l
Sufficient flow of the sensor element
l Burdening of the measuring medium with
long fibers - avoidance of them getting
caught on the sensor (rake effect)
l Burdening of the sample with small stones
and abrasive particles - avoidance of any
damage to the sensor element
The table on the following pages contains recommendations
and the special characteristics of the individual sensors.
Installation recommendations
B
45 °
C
Flow
direction
Good
A, B
C
C
9
