ADA-DF 12 / -DF 13
Installing the sensor
(example)
Installation
Note
Please also observe the I
operating manual as well as the operating manual of the
welding socket.
1
2 2
Ready-to-install
sensor
Note
Further instructions for installation are given in the mounting
instructions of the welding socket.
chapter of the sensor
NSTALLATION
1

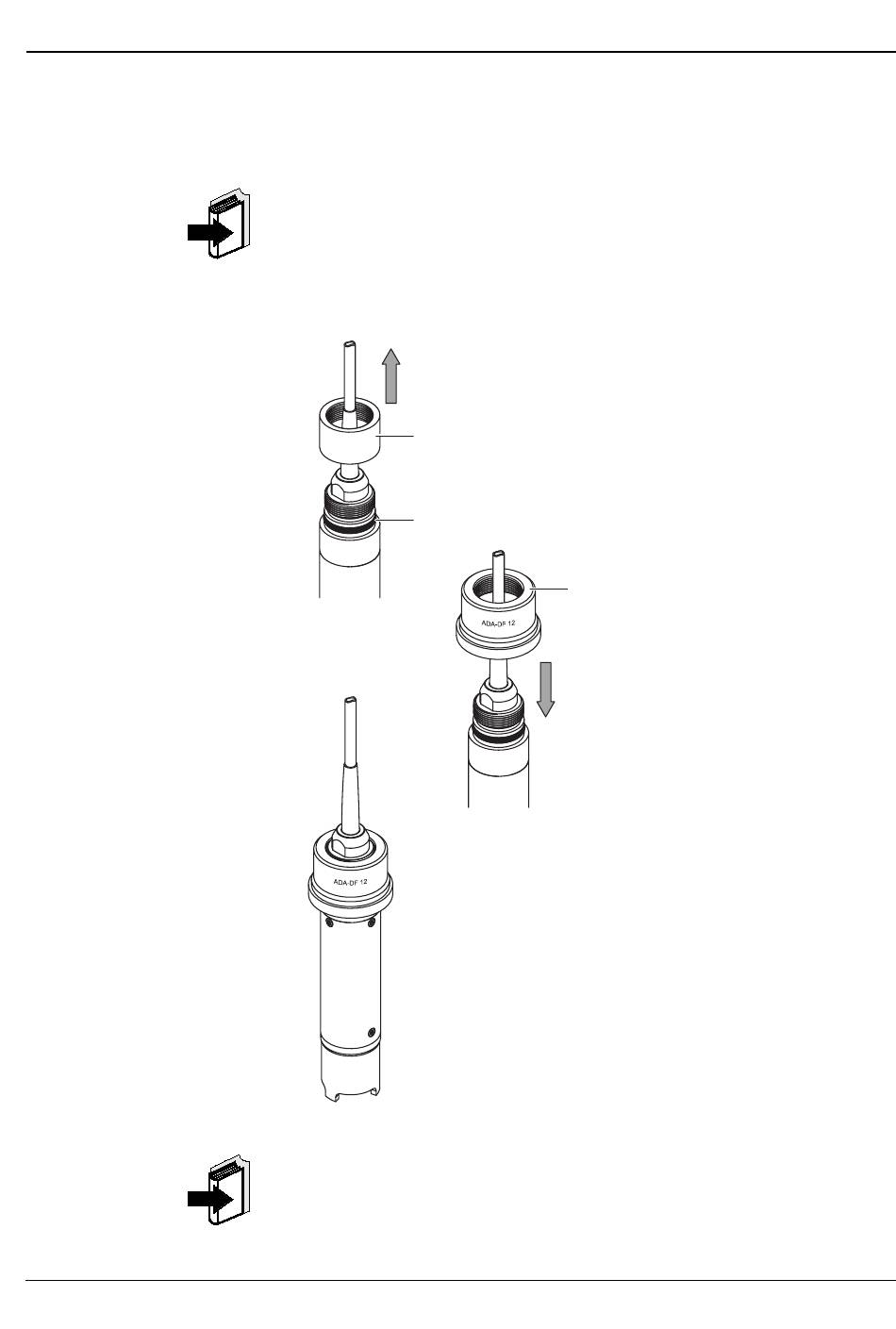

Unscrew the protection
ring (1) from the sensor
and pull it off over the
sensor cable.
2
Check the O-ring (2) for
an immaculate condition
and grease it with a thin
film of O-ring grease.
3
Replace a worn O-ring by
the enclosed O-ring.
3
Thread the sensor cable
through the sensor
adapter (3) and screw
the sensor adapter on
the sensor up to the stop.
