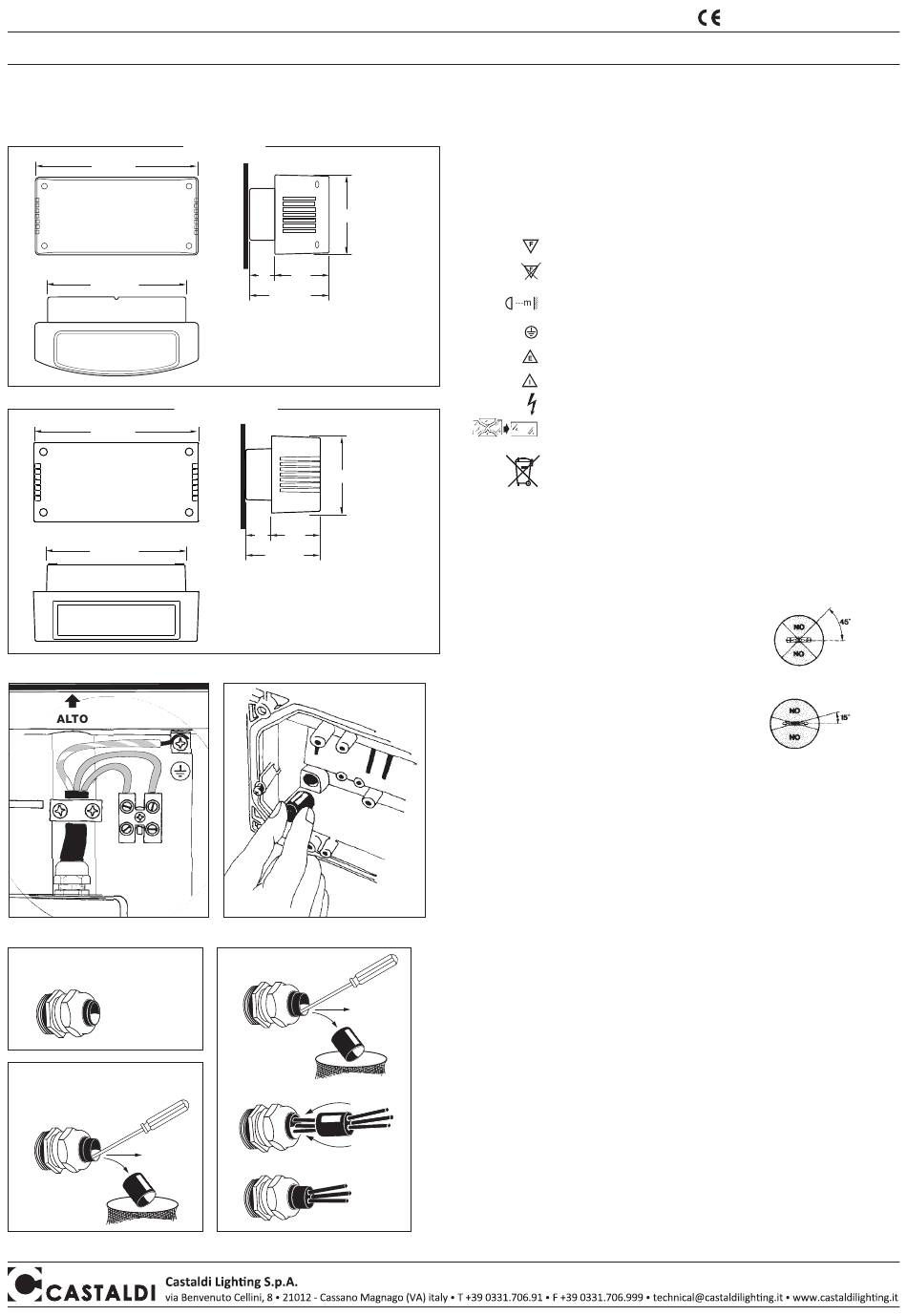

installation and maintenance sheet
NB: These assembly instructions must be given to end users for correct maintenance and so that they know how to change the bulb. The appliance must not be tampered with or
transformed and it must be installed and used as supplied and in compliance with the National Rules on Installations. Any non-compliant installations will invalidate all forms of
guarantee. The company cannot be held responsible for damage caused by incorrect assembly.
367 mm
310 mm
367 mm
310 mm
pict.1
pict.3
a
Ø min 7,5 mm
Ø max 8,5 mm
b
Ø min 8,5 mm
Ø max 12 mm
D21 duplo
176 mm
56
120
176 mm
• max wind exposed surface 0,064m
• weight 6,5 Kg max
• mounting height: up to 12m
D60 duplo/Q
176 mm
56
115
171 mm
• max wind exposed surface 0,064m
• weight 6,5 Kg max
• mounting height: up to 12m
pict.2
c
Ø min 2,5 mm
Ø max 3,5 mm
Features - meaning of the symbols shown on the label:
suitable for exterior or interior free air operation
mounting on wall - structure - pole
totally dust-proof
IP65
jet-proof from any direction
mounting on normally inflammable surfaces allowed
not proper for mounting on normally inflammable surfaces
minimal distance between fitting and lighted object,
follow label directions
2
Class I
single insulation: earth required
fitting wired for high pressure sodium lamps with external ignitor
fitting wired for high pressure sodium lamps with internal ignitor
danger: high voltage
replace the damaged protective glass screens
getting rid of as urban waste forbidden
separate collection is mandatory when the product
is at the end of its life
• glass features:
shock resistance: 6,5Nm according to EN60598-1
type of glass: plane float - safety tempered - thickness 5mm
2
• Warning for metal halide and high pressure sodium models
with RX7s socket
code: D21/MH70 - D60/MH70
D21/MH150 - D60/MH150
allowed position: horizontal ±45°
• Warning for the halogen lamp model with R7s socket
code: D21/Ql
allowed position: horizontal ±15°
INSTALLATION:
• place the fixture with the word ALTO in upper position as shown in pict.1.
• to guarantee a perfect watertightness, after having fixed the fitting, push in the
proper rubber seals as shown in picture 2.
• for outdoor locations it is mandatory to use (EN 60598-1; CENELEC HD 516S1)
a three core flexible rubber cable type H07RN-F with a diameter between 7,5
and 12 mm. PVC insulated cables or with outer PVC cover or anyhow cable
different from the one here prescribed are not allowed.
Proceed as shown in pict. 3a-b for a correct coupling cable-cable gland.
Only for indoor applications independent single wires may be used. In this
evenience use the special three holes rubber to guarantee a perfect seal
(picture 3c).
RELAMPING - MAINTENANCE:
• respect fully type and power of lamp as shown on the label. Read carefully
the instructions of the lamp manufacturer for proper lamp use. The relamping
must be done with maximum attention avoiding to dirty the sealing gasket
and its contact surface. It is therefore necessary before opening the fixture
to clean it accurately. If the gasket is damaged, deformed or not in perfect
conditions it is necessary to change it.
• it is essential to do a frequent cleaning of the glass and of the outer surface
of the fixture to avoid build up of mud and dirtiness resulting in dangerous
overheating due to uncorrect light and heath dissipation. Clean carefully the
glass screen removing limestone deposits by means of a scraper.
LED VERSION - RISK GROUP 2:
CAUTION: Possibly hazardous optical radiation emitted from this product.
Do not stare at operating lamp. May be harmful to the eye. The electrical
circuit complete with leds has to be required to our company or its distri-
butors. The replacement must be done by a qualified electrician.
Quality control: Should you have any complaint please get in touch
with our company or its sales organization. Please give the number of your
order as wellas the serial number that recognizes the fixture.
Das Produkt entspricht den Richtlinien
der Europäischen Gemeinschaft
D21 duplo - D60 duplo/Q
