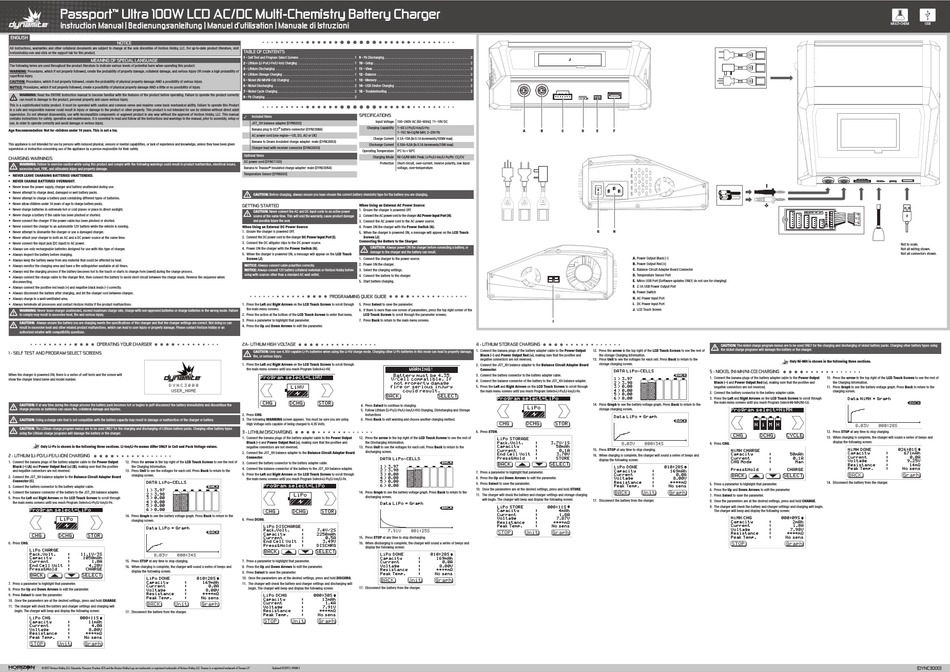

Passport Ultra 100W LCD AC/DC Multi-Chemistry Battery Charger
™
Instruction Manual | Bedienungsanleitung | Manuel d'utilisation | Manuale di Istruzioni
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit
horizonhobby.com and click on the support tab for this product.
MEANING OF SPECIAL LANGUAGE
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of
superficial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly
can result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product
in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult
supervision. Do not attempt disassembly, use with incompatible components or augment product in any way without the approval of Horizon Hobby, LLC. This manual
contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or
use, in order to operate correctly and avoid damage or serious injury.
Age Recommendation: Not for children under 14 years. This is not a toy.
This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
CHARGING WARNINGS
WARNING: Failure to exercise caution while using this product and comply with the following warnings could result in product malfunction, electrical issues,
excessive heat, FIRE, and ultimately injury and property damage.
• NEVER LEAVE CHARGING BATTERIES UNATTENDED.
• NEVER CHARGE BATTERIES OVERNIGHT.
• Never leave the power supply, charger and battery unattended during use.
• Never attempt to charge dead, damaged or wet battery packs.
• Never attempt to charge a battery pack containing different types of batteries.
• Never allow children under 14 years of age to charge battery packs.
• Never charge batteries in extremely hot or cold places or place in direct sunlight.
• Never charge a battery if the cable has been pinched or shorted.
• Never connect the charger if the power cable has been pinched or shorted.
• Never connect the charger to an automobile 12V battery while the vehicle is running.
• Never attempt to dismantle the charger or use a damaged charger.
• Never attach your charger to both an AC and a DC power source at the same time.
• Never connect the input jack (DC input) to AC power.
• Always use only rechargeable batteries designed for use with this type of charger.
• Always inspect the battery before charging.
• Always keep the battery away from any material that could be affected by heat.
• Always monitor the charging area and have a fire extinguisher available at all times.
• Always end the charging process if the battery becomes hot to the touch or starts to change form (swell) during the charge process.
• Always connect the charge cable to the charger first, then connect the battery to avoid short circuit between the charge leads. Reverse the sequence when
disconnecting.
• Always connect the positive red leads (+) and negative black leads (–) correctly.
• Always disconnect the battery after charging, and let the charger cool between charges.
• Always charge in a well-ventilated area.
• Always terminate all processes and contact Horizon Hobby if the product malfunctions.
WARNING: Never leave charger unattended, exceed maximum charge rate, charge with non-approved batteries or charge batteries in the wrong mode. Failure
to comply may result in excessive heat, fire and serious injury.
CAUTION: Always ensure the battery you are charging meets the specifications of this charger and that the charger settings are correct. Not doing so can
result in excessive heat and other related product malfunctions, which can lead to user injury or property damage. Please contact Horizon Hobby or an
authorized retailer with compatibility questions.
OPERATING YOUR CHARGER
1 - SELF TEST AND PROGRAM SELECT SCREENS
When the charger is powered ON, there is a series of self tests and the screen will
show the charger brand name and model number.
CAUTION: If at any time during the charge process the battery pack becomes hot or begins to puff disconnect the battery immediately and discontinue the
charge process as batteries can cause fire, collateral damage and injuries.
CAUTION: Using a charge rate that is not compatible with the battery capacity may result in damage or malfunction of the charger or battery.
CAUTION: The Lithium charge program menus are to be used ONLY for the charging and discharging of Lithium battery packs. Charging other battery types
using the Lithium charge programs will damage the battery or the charger.
Only Li-Po is shown in the following three sections. Li-Ion/Li-Fe menus differ ONLY in Cell and Pack Voltage values.
2 - LITHIUM (LI-PO/LI-FE/LI-ION) CHARGING
1. Connect the banana plugs of the battery adapter cable to the Power Output 12. Press the arrow in the top right of the LCD Touch Screen to see the rest of
Black (–) (A) and Power Output Red (+) (B), making sure that the positive the Charging information.
and negative connectors are not reversed. 13. Press Unit to see the voltages for each cell. Press Back to return to the
charging screen.
2. Connect the JST_XH balance adapter to the Balance Circuit Adapter Board
Connector (C).
DATA LiPo–CELLS
3. Connect the battery connector to the battery adapter cable.
1 > 3.97
4. Connect the balance connector of the battery to the JST_XH balance adapter.
2 > 3.98
3 > 0.00
5. Press the Left and Right Arrows on the LCD Touch Screen to scroll through
4 > 0.00
the main menu screens until you reach Program Select=Li-Po/Li-Ion/Li-Fe.
5 > 0.00
Program select=LiPo 6 > 0.00
14. Press Graph to see the battery voltage graph. Press Back to return to the
LiPo
charging screen.
Data LiPo = Graph
CHG DCHG STOR
6. Press CHG.
LiPo CHARGE
Pack.Volt. : 11.1V/3S
Capacity : 1050mAh
Current : 1.0A 15. Press STOP at any time to stop charging.
End Cell Volt : 4.20V
16. When charging is complete, the charger will sound a series of beeps and
Press&Hold : CHARGE
display the following screen:
BACK SELECT
LiPo DONE
Capacity :
7. Press a parameter to highlight that parameter.
Current :
8. Press the Up and Down Arrows to edit the parameter. Voltage :
Resistance :
9. Press Select to save the parameter.
Peak Temp. :
10. Once the parameters are at the desired settings, press and hold CHARGE.
11. The charger will check the battery and charger settings and charging will
begin. The charger will beep and display the following screen:
17. Disconnect the battery from the charger.
LiPo CHG 000:11S
Capacity : 11mAh
Current : 4.0A
Voltage : 8.00V
Resistance : ****mΩ
Peak Temp. : No sens
© 2017 Horizon Hobby, LLC. Dynamite, Passport, Prophet, EC3 and the Horizon Hobby Logo are trademarks or registered trademarks of Horizon Hobby, LLC. Traxxas is a registered trademark of Traxxas L.P
TABLE OF CONTENTS
1 - Self Test and Program Select Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 9 - Pb Discharging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 - Lithium (Li-Po/Li-Fe/Li-Ion) Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 10 - Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
3 - Lithium Discharging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 11 - View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
4 - Lithium Storage Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 12 - Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
5 - Nickel (Ni-MH/Ni-Cd) Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 13 - Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
6 - Nickel Discharging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 14 - USB Device Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
7 - Nickel Cycle Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 15 - Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
8 - Pb Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SPECIFICATIONS
3 Included Items
Input Voltage 100–240V AC (50–60Hz); 11–18V DC
JST_XH balance adapter (DYN5032)
Charging Capability 1–6S Li-Po/Li-Ion/Li-Fe;
Banana plug to EC3 ™ battery connector (DYNC0066)
AC power cord (one region—US, EU, AU or UK)
Charge Current 0.1A–10A (in 0.1A increments/100W max)
Banana to Deans insulated charge adapter: male (DYNC0053)
Discharge Current 0.10A–5.0A (in 0.1A increments/10W max)
Charger lead with receiver connector (DYNC0033)
Operating Temperature 0ºC to + 50ºC
Optional Items
Charging Mode Ni-Cd/Ni-MH: Peak; Li-Po/Li-Ion/Li-Fe/Pb: CC/CV
DC power cord (DYNC1103)
Banana to Traxxas ® insulated charge adapter: male (DYNC0054)
Temperature Sensor (DYN5033)
CAUTION: Before charging, always ensure you have chosen the correct battery chemistry type for the battery you are charging.
GETTING STARTED When Using an External AC Power Source:
1. Ensure the charger is powered OFF.
CAUTION: Never connect the AC and DC input cords to an active power
2. Connect the AC power cord to the charger AC Power Input Port (H).
source at the same time. This will void the warranty, cause product damage
and possibly injure the user. 3. Connect the AC power cord to the AC power source.
When Using an External DC Power Source: 4. Power ON the charger with the Power Switch (G).
1. Ensure the charger is powered OFF. 5. When the charger is powered ON, a message will appear on the LCD Touch
2. Connect the DC power cord to the charger DC Power Input Port (I). Screen (J).
Connecting the Battery to the Charger:
3. Connect the DC alligator clips to the DC power source.
CAUTION: Always power ON the charger before connecting a battery, or
4. Power ON the charger with the Power Switch (G).
damage to the charger and the battery can result.
5. When the charger is powered ON, a message will appear on the LCD Touch
Screen (J). 1. Connect the charger to the power source.
2. Power ON the charger.
NOTICE: Always connect cable polarities correctly.
NOTICE: Always consult 12V battery collateral materials or Horizon Hobby before 3. Select the charging settings.
using with sources other than a standard AC wall outlet. 4. Connect the battery to the charger.
5. Start battery charging.
PROGRAMMING QUICK GUIDE
1. Press the Left and Right Arrows on the LCD Touch Screen to scroll through 5. Press Select to save the parameter.
the main menu screens.
6. If there is more than one screen of parameters, press the top right corner of the
2. Press the action at the bottom of the LCD Touch Screen to enter that menu. LCD Touch Screen to scroll through the parameter screens.
3. Press a parameter to highlight that parameter. 7. Press Back to return to the main menu screens.
4. Press the Up and Down Arrows to edit the parameter.
2A- LITHIUM HIGH VOLTAGE
CAUTION: Only use 4.35V capable Li-Po batteries when using the Li-HV charge mode. Charging other Li-Po batteries in this mode can lead to property damage,
fire, or serious injury.
1. Press the Left and Right Arrows on the LCD Touch Screen to scroll through
the main menu screens until you reach Program Select=Li-HV.
Program select=LiHV
LiHV
CHG DCHG STOR
4. Press Select to continue to charging.
5. Follow Lithium (Li-Po/Li-Fe/Li-Ion/LI-HV) Charging, Dishcharging and Storage
2. Press CHG. insturctions
3. The following WARNING screen appears. You must be sure you are using 6. Press Back to exit warning and choose another charging method.
High Voltage cells capable of being charged to 4.35 Volts.
3 - LITHIUM DISCHARGING
1. Connect the banana plugs of the battery adapter cable to the Power Output 12. Press the arrow in the top right of the LCD Touch Screen to see the rest of
Black (–) and Power Output Red (+), making sure that the positive and the Discharging information.
negative connectors are not reversed. 13. Press Unit to see the voltages for each cell. Press Back to return to the
discharging screen.
2. Connect the JST_XH balance adapter to the Balance Circuit Adapter Board
Connector.
3. Connect the battery connector to the battery adapter cable.
4. Connect the balance connector of the battery to the JST_XH balance adapter.
5. Press the Left and Right Arrows on the LCD Touch Screen to scroll through
the main menu screens until you reach Program Select=Li-Po/Li-Ion/Li-Fe.
Program select=LiPo
BACK
14. Press Graph to see the battery voltage graph. Press Back to return to the
LiPo
discharging screen.
CHG DCHG STOR
6. Press DCHG.
LiPo DISCHARGE
Pack.Volt. : 7.4V/2S
BACK
Capacity : 2250mAh
Current : 0.5A 15. Press STOP at any time to stop discharging.
End Cell Volt : 3.49V
16. When discharging is complete, the charger will sound a series of beeps and
Press&Hold : DISCHRG
display the following screen:
BACK SELECT
7. Press a parameter to highlight that parameter.
8. Press the Up and Down Arrows to edit the parameter.
9. Press Select to save the parameter.
010:28S 10. Once the parameters are at the desired settings, press and hold DISCHRG.
169mAh
11. The charger will check the battery and charger settings and discharging will
0.0A
begin. The charger will beep and display the following screen: 17. Disconnect the battery from the charger.
8.00V
****mΩ
LiPo DCHG 000:30S
No sens
Capacity : 13mAh
Current : 1.4A
Voltage : 7.91V
Resistance : ****mΩ
Peak Temp. : No sens
Updated 07/2017 | 41046.1
A B
1–15C Ni-Cd/Ni-MH; 2–20V Pb
Protection Short-circuit, over-current, reverse polarity, low input
voltage, over-temperature
I
4 - LITHIUM STORAGE CHARGING
1. Connect the banana plugs of the battery adapter cable to the Power Output
Black (–) and Power Output Red (+), making sure that the positive and
negative connectors are not reversed.
2. Connect the JST_XH balance adapter to the Balance Circuit Adapter Board
WARNING!
Connector.
Battery must be 4.35 3. Connect the battery connector to the battery adapter cable.
V/Cell compatible. If
4. Connect the balance connector of the battery to the JST_XH balance adapter.
not property damage
fire or serious injury
5. Press the Left and Right Arrows on the LCD Touch Screen to scroll through
could result.
the main menu screens until you reach Program Select=Li-Po/Li-Ion/Li-Fe.
BACK SELECT
Program select=LiPo
LiPo
CHG DCHG STOR
6. Press STOR.
LiPo STORAGE
Pack.Volt. : 3.7V/1S
Capacity : 50mAh
Current :
End Cell Volt : 3.70V
DATA LiPo–CELLS Press&Hold : STORE
BACK
BACK SELECT
1 > 3.97
2 > 3.98
7. Press a parameter to highlight that parameter.
3 > 0.00
4 > 0.00
8. Press the Up and Down Arrows to edit the parameter.
5 > 0.00
9. Press Select to save the parameter.
6 > 0.00
10. Once the parameters are at the desired settings, press and hold STORE.
11. The charger will check the battery and charger settings and storage charging
will begin. The charger will beep and display the following screen:
Data LiPo = Graph
LiPo STORE 000:11S
BACK
Capacity :
Current :
Voltage : 7.87V
Resistance : ****mΩ
Peak Temp. : No sens
LiPo DONE 010:28S
Capacity : 169mAh
Current : 0.0A
Voltage : 8.00V
Resistance : ****mΩ
Peak Temp. : No sens
J
C D E F
G H

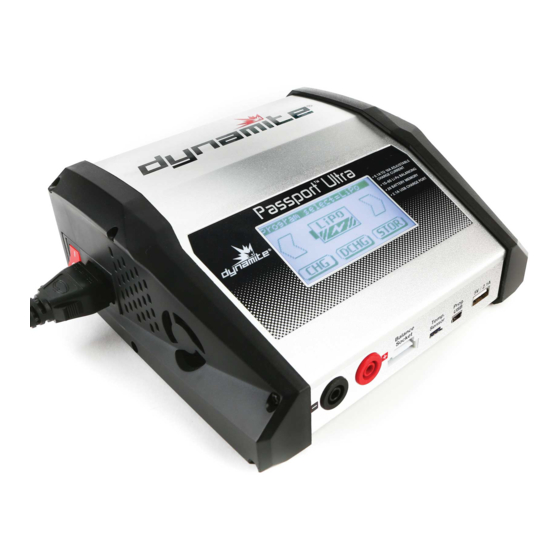

A. Power Output Black (–)
B. Power Output Red (+)
C. Balance Circuit Adapter Board Connector
D. Temperature Sensor Port
E. Micro USB Port (Software updates ONLY; do not use for charging)
F. 2.1A USB Power Output Port
G. Power Switch
H. AC Power Input Port
I. DC Power Input Port
J. LCD Touch Screen
CAUTION: The nickel charge program menus are to be used ONLY for the charging and discharging of nickel battery packs. Charging other battery types using
12. Press the arrow in the top right of the LCD Touch Screen to see the rest of the nickel charge programs will damage the battery or the charger.
the storage Charging information.
13. Press Unit to see the voltages for each cell. Press Back to return to the
storage charging screen.
DATA LiPo–CELLS 5 - NICKEL (NI-MH/NI-CD) CHARGING
BACK
1 > 3.97 1. Connect the banana plugs of the battery adapter cable to the Power Output
2 > 3.98 Black (–) and Power Output Red (+), making sure that the positive and
3 > 0.00
negative connectors are not reversed.
4 > 0.00
2. Connect the battery connector to the battery adapter cable.
5 > 0.00
6 > 0.00 3. Press the Left and Right Arrows on the LCD Touch Screen to scroll through
the main menu screens until you reach Program Select=Ni-MH/Ni-Cd.
14. Press Graph to see the battery voltage graph. Press Back to return to the
storage charging screen. Program select=NiMH
Data LiPo = Graph
BACK
CHG
4. Press CHG.
0.1A 15. Press STOP at any time to stop charging. NiMH CHARGE
Capacity
16. When charging is complete, the charger will sound a series of beeps and
Current
display the following screen:
CHG Mode
LiPo DONE 010:28S
Press&Hold
Capacity : 169mAh
Current : 0.0A
BACK
Voltage : 8.00V
Resistance : ****mΩ
5. Press a parameter to highlight that parameter.
Peak Temp. : No sens
6. Press the Up and Down Arrows to edit the parameter.
7. Press Select to save the parameter.
17. Disconnect the battery from the charger. 8. Once the parameters are at the desired settings, press and hold CHARGE.
9. The charger will check the battery and charger settings and charging will begin.
4mAh
The charger will beep and display the following screen:
1.8A
NiMH CHG
Capacity
Current
Voltage
Resistance
Peak Temp.
MULTI-CHEM USB
Not to scale.
Not all wiring shown.
Not all connectors shown.
Only Ni-MH is shown in the following three sections.
10. Press the arrow in the top right of the LCD Touch Screen to see the rest of
the Charging information.
11. Press Graph to see the battery voltage graph. Press Back to return to the
charging screen.
Data NiMH = Graph
N i M H
12. Press STOP at any time to stop charging.
DCHG CYCLE
13. When charging is complete, the charger will sound a series of beeps and
display the following screen:
NiMH DONE 026:01S
Capacity : 671mAh
: 50mAh
Current : 0.0A
: 0.1A
Voltage : 9.25V
: Man
Resistance : 14mΩ
Peak Temp. : No sens
: CHARGE
SELECT
14. Disconnect the battery from the charger.
000:09S
: 2mAh
: 1.8A
: 7.98V
: ****mΩ
: No sens
(DYNC3000)
