B
C

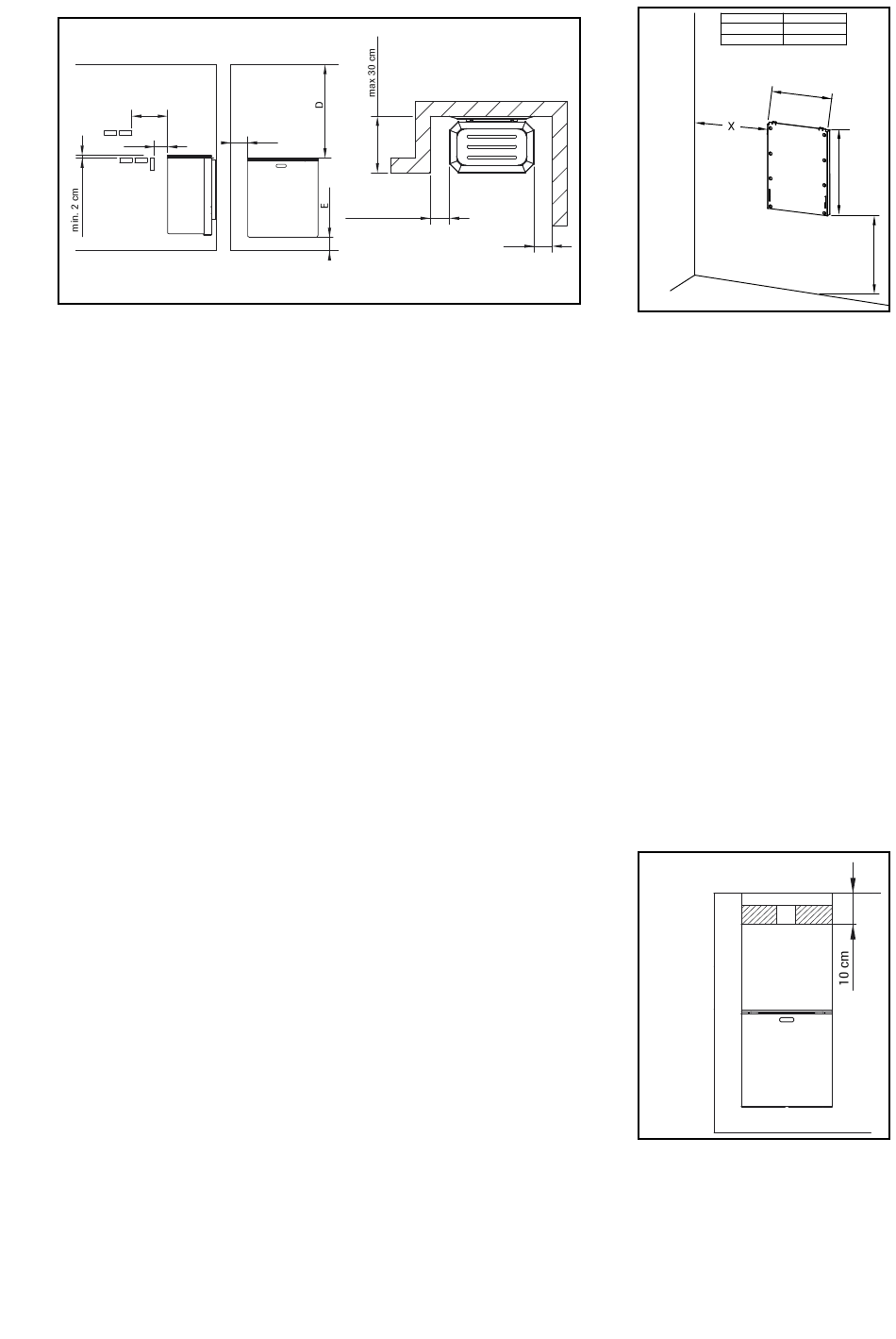

Figure 1.
3. INSTALLATION:
- Fasten the attachment plate to the wall using the screws
included in the delivery in accordance with Fig. 1.2.
3 1. ELECTRIC CONNECTION
- Connection of the sauna heater to the power supply may only
be carried out by an authorised electrician in accordance with
the valid regulations.
- A rubber-sheathed cable of type H07RN-F or similar must be
used as the connection cable. The cross-section of the cable
and the fuse size are presented in Table 1.
- The cross-section of the wires routed from the sauna heater to
the control unit must correspond to the power supply cable of
the sauna heater.
- Turn the stone space and the connecting
box upside down.
- Open the base of the connecting box
- Connect the supply cable to the terminal
block in the connecting box of the heater.

3.2 Installing the temperature sensor

- Install the sensor in the area lined in Figure 2.
- Install the temperature sensor on the wall with
the screws included in the delivery
(2 pcs. Ø 2,9 x 16).
- The wiring for the temperature sensor can
be embedded.
- Connect the sensor to the circuit plate
- Connect the end of the conductor, the one with
no connector in place, to the temperature sensor.
You can cut the conductor to a suitable length.
A
min. 20 cm
A
Figure 1.2
Figure 2.
X min. mm
TYYPPI
NARVI NC 6 120
NARVI NC 9 140
278
375
min. 250
