E N G L I S H
• Always store grinding and cutting discs in a
dry place.
Labels on tool
The following pictographs are shown on the tool:
Read the instruction manual before
use
Wear safety glasses
Wear ear protection

Package contents

The package contains:
1 Angle grinder
1 Guard (+1 Guard 5326 125)
1 Side handle
1 Flange set
1 Two-pin spanner
1 Instruction manual
1 Exploded drawing
• Check for damage to the tool, parts or
accessories which may have occurred during
transport.
• Take the time to thoroughly read and
understand this manual prior to operation.

Description (fig. A)

Your angle grinder has been designed for
professional grinding and cutting applications.
1 On/off switch
3 Spindle lock
4 Guard
5 Side handle
Electrical safety
The electric motor has been designed for one
voltage only. Always check that the power
supply corresponds to the voltage on the rating
plate.
Your FÖRCH tool is double insulated in
accordance with EN 50144; therefore
no earth wire is required.
16

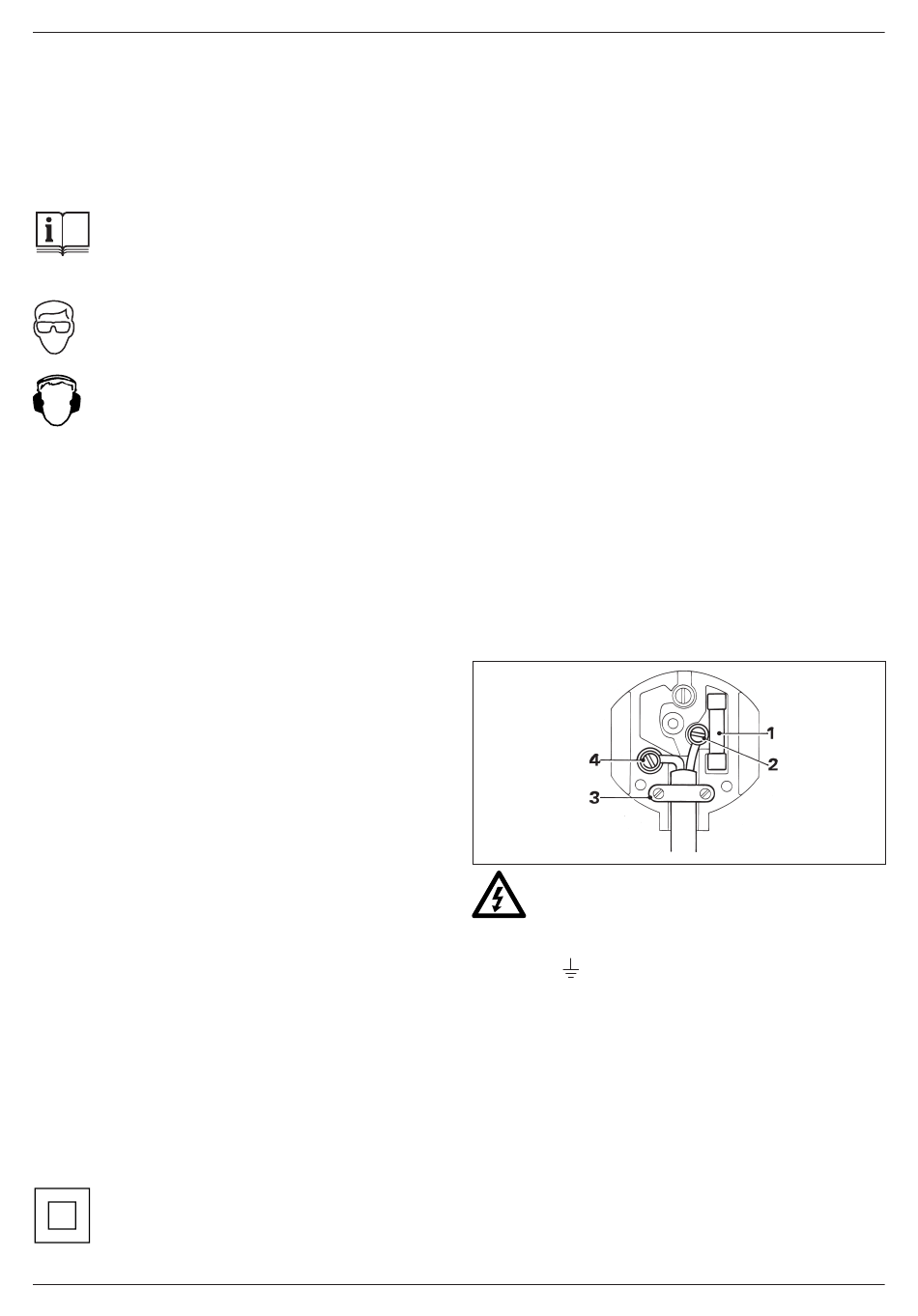

Mains plug replacement
(U.K. & Ireland only)
• Should your mains plug need replacing and
you are competent to do this, proceed as
instructed below. If you are in doubt, contact
an authorized FÖRCH repair agent or a
qualified electrician.
• Disconnect the plug from the supply.
• Cut off the plug and dispose of it safely; a plug
with bared copper conductors is dangerous if
engaged in a live socket outlet.
• Only fit 13 Amperes BS1363A approved plugs
fitted with the correctly rated fuse (1).
• The cable wire colours, or a letter, will be
marked at the connection points of most good
quality plugs. Attach the wires to their
respective points in the plug (see below).
Brown is for Live (L) (2) and Blue is for
Neutral (N) (4).
• Before replacing the top cover of the mains
plug ensure that the cable restraint (3) is
holding the outer sheath of the cable firmly and
that the two leads are correctly fixed at the
terminal screws.
Never use a light socket.
Never connect the live (L) or neutral
(N) wires to the earth pin marked E or
.
For 115 V units with a power rating exceeding
1500 W, we recommend to fit a plug to BS4343
standard.

Using an extension cable

If an extension cable is required, use an
approved extension cable suitable for the power
input of this tool (see technical data). The
minimum conductor size is 1.5 mm
When using a cable reel, always unwind the
cable completely.
2
.
