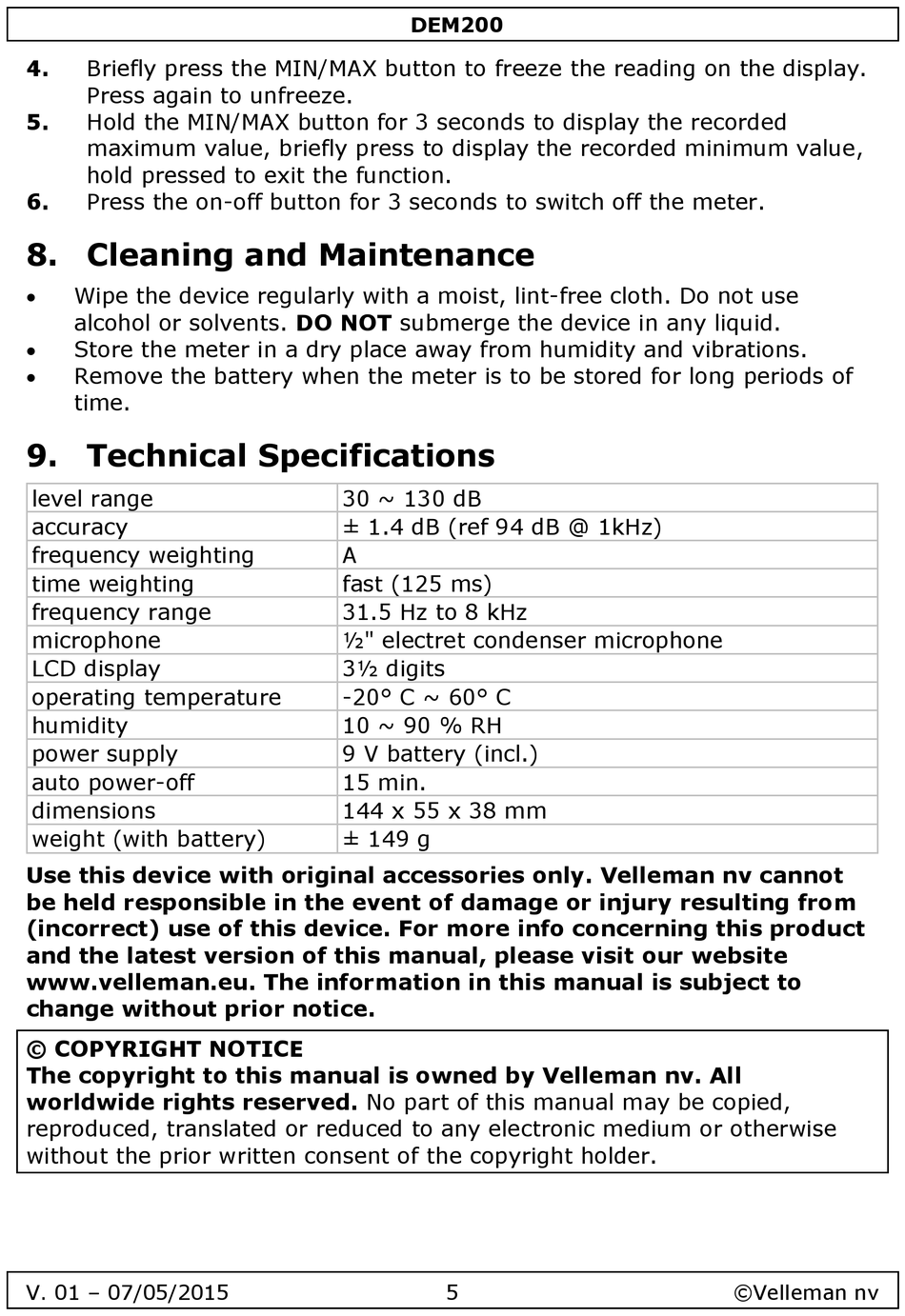

Cleaning And Maintenance; Technical Specifications - Velleman DEM 200 Bedienungsanleitung

4. Briefly press the MIN/MAX button to freeze the reading on the display.
Press again to unfreeze.
5. Hold the MIN/MAX button for 3 seconds to display the recorded
maximum value, briefly press to display the recorded minimum value,
hold pressed to exit the function.
6. Press the on-off button for 3 seconds to switch off the meter.

8. Cleaning and Maintenance

 Wipe the device regularly with a moist, lint-free cloth. Do not use
alcohol or solvents. DO NOT submerge the device in any liquid.
 Store the meter in a dry place away from humidity and vibrations.
 Remove the battery when the meter is to be stored for long periods of
time.

9. Technical Specifications

level range
accuracy
frequency weighting
time weighting
frequency range
microphone
LCD display
operating temperature
humidity
power supply
auto power-off
dimensions
weight (with battery)
Use this device with original accessories only. Velleman nv cannot
be held responsible in the event of damage or injury resulting from
(incorrect) use of this device. For more info concerning this product
and the latest version of this manual, please visit our website
www.velleman.eu. The information in this manual is subject to
change without prior notice.
© COPYRIGHT NOTICE
The copyright to this manual is owned by Velleman nv. All
worldwide rights reserved. No part of this manual may be copied,
reproduced, translated or reduced to any electronic medium or otherwise
without the prior written consent of the copyright holder.
V. 01 – 07/05/2015
DEM200
30 ~ 130 dB
± 1.4 dB (ref 94 dB @ 1kHz)
A
fast (125 ms)
31.5 Hz to 8 kHz
½" electret condenser microphone
3½ digits
-20° C ~ 60° C
10 ~ 90 % RH
9 V battery (incl.)
15 min.
144 x 55 x 38 mm
± 149 g
5 ©Velleman nv
