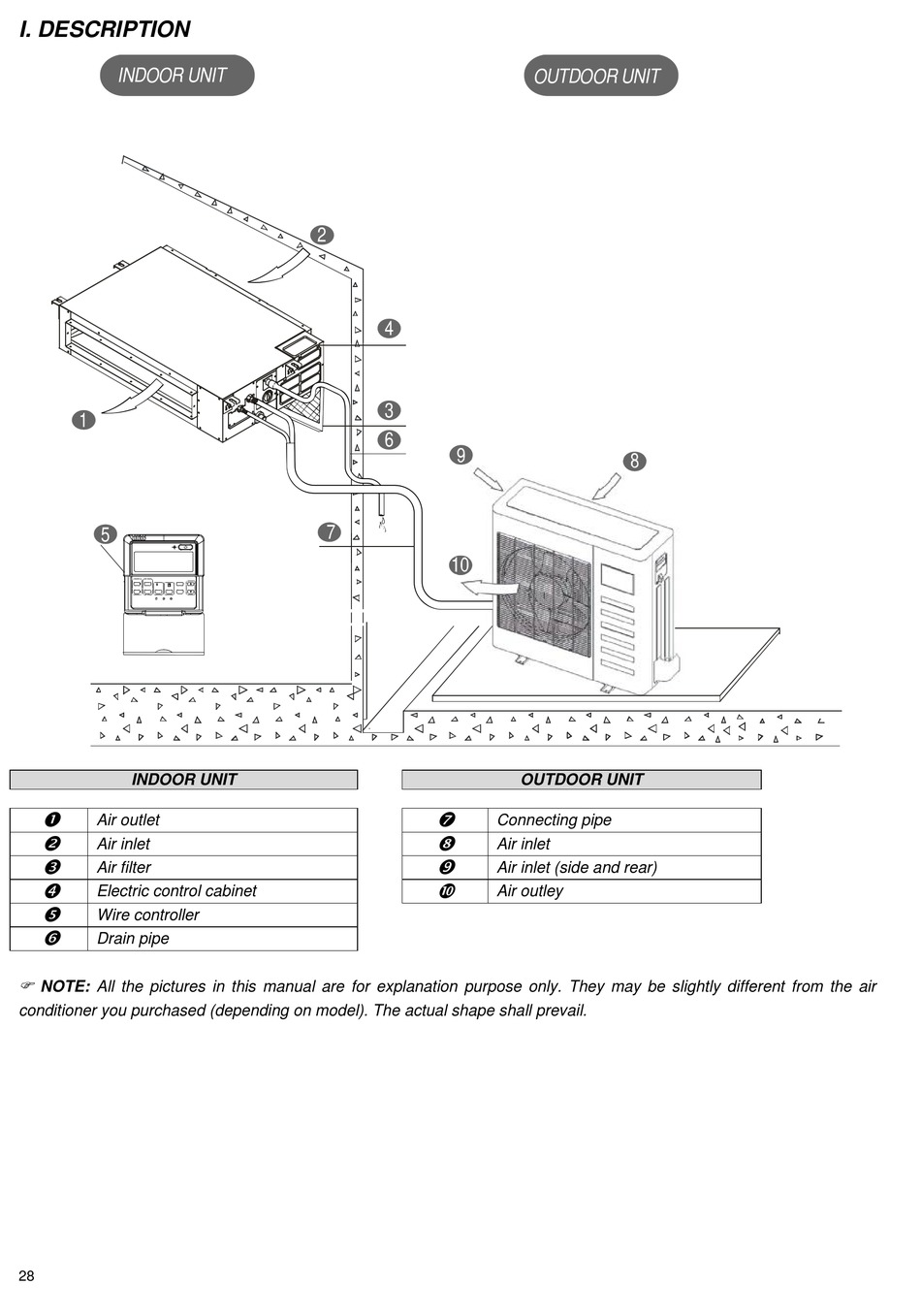

I. DESCRIPTION
INDOOR UNIT
1
5
M
INDOOR UNIT

Air outlet

Air inlet

Air filter

Electric control cabinet

Wire controller

Drain pipe

NOTE: All the pictures in this manual are for explanation purpose only. They may be slightly different from the air
conditioner you purchased (depending on model). The actual shape shall prevail.
28
2
4
3
6
9
7
10




OUTDOOR UNIT
8
OUTDOOR UNIT
Connecting pipe
Air inlet
Air inlet (side and rear)
Air outley
