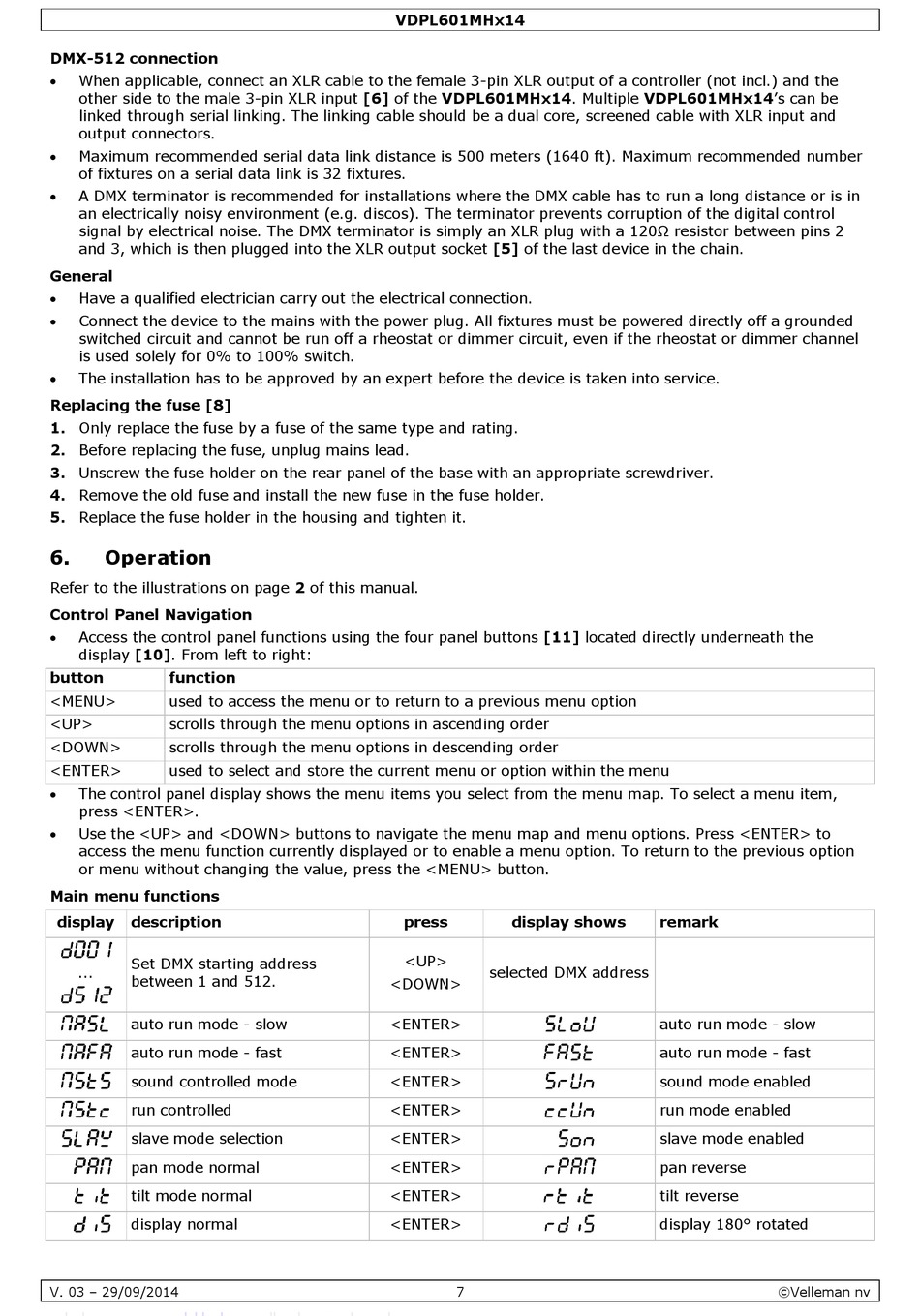

DMX-512 connection
 When applicable, connect an XLR cable to the female 3-pin XLR output of a controller (not incl.) and the
other side to the male 3-pin XLR input [6] of the VDPL601MHx14. Multiple VDPL601MHx14's can be
linked through serial linking. The linking cable should be a dual core, screened cable with XLR input and
output connectors.
 Maximum recommended serial data link distance is 500 meters (1640 ft). Maximum recommended number
of fixtures on a serial data link is 32 fixtures.
 A DMX terminator is recommended for installations where the DMX cable has to run a long distance or is in
an electrically noisy environment (e.g. discos). The terminator prevents corruption of the digital control
signal by electrical noise. The DMX terminator is simply an XLR plug with a 120Ω resistor between pins 2
and 3, which is then plugged into the XLR output socket [5] of the last device in the chain.
General
 Have a qualified electrician carry out the electrical connection.
 Connect the device to the mains with the power plug. All fixtures must be powered directly off a grounded
switched circuit and cannot be run off a rheostat or dimmer circuit, even if the rheostat or dimmer channel
is used solely for 0% to 100% switch.
 The installation has to be approved by an expert before the device is taken into service.
Replacing the fuse [8]
1. Only replace the fuse by a fuse of the same type and rating.
2. Before replacing the fuse, unplug mains lead.
3. Unscrew the fuse holder on the rear panel of the base with an appropriate screwdriver.
4. Remove the old fuse and install the new fuse in the fuse holder.
5. Replace the fuse holder in the housing and tighten it.
6.

Operation

Refer to the illustrations on page 2 of this manual.
Control Panel Navigation
 Access the control panel functions using the four panel buttons [11] located directly underneath the
display [10]. From left to right:
button function
<MENU> used to access the menu or to return to a previous menu option
<UP> scrolls through the menu options in ascending order
<DOWN> scrolls through the menu options in descending order
<ENTER> used to select and store the current menu or option within the menu
 The control panel display shows the menu items you select from the menu map. To select a menu item,
press <ENTER>.
 Use the <UP> and <DOWN> buttons to navigate the menu map and menu options. Press <ENTER> to
access the menu function currently displayed or to enable a menu option. To return to the previous option
or menu without changing the value, press the <MENU> button.
Main menu functions
display description
Set DMX starting address
...
between 1 and 512.
auto run mode - slow
auto run mode - fast
sound controlled mode
run controlled
slave mode selection
pan mode normal
tilt mode normal
display normal
V. 03 – 29/09/2014
VDPL601MHx14
press display shows
<UP>
selected DMX address
<DOWN>
<ENTER>
<ENTER>
<ENTER>
<ENTER>
<ENTER>
<ENTER>
<ENTER>
<ENTER>
7
remark
auto run mode - slow
auto run mode - fast
sound mode enabled
run mode enabled
slave mode enabled
pan reverse
tilt reverse
display 180° rotated
