4. Taking into operation

Before commissioning the information provided on the rating plate and in these instructions is to be observed. Non- obser-
vance can lead to the destruction of the beacon and to the jeopardising of safety.
The light is designed to be connected to permanent connection cables. The cable screw connections are suitable for cables
and lines installed in a stationary arrangement.
After connecting it to the power supply and fi xing/tightening the hood in place, the multifunction light is ready for operation. A
subsequent test is made to ensure satisfactory functional integrity.
Caution: In order to avoid damage to eyesight, please refrain from looking at the light for any length of time when it is in op-
eration.

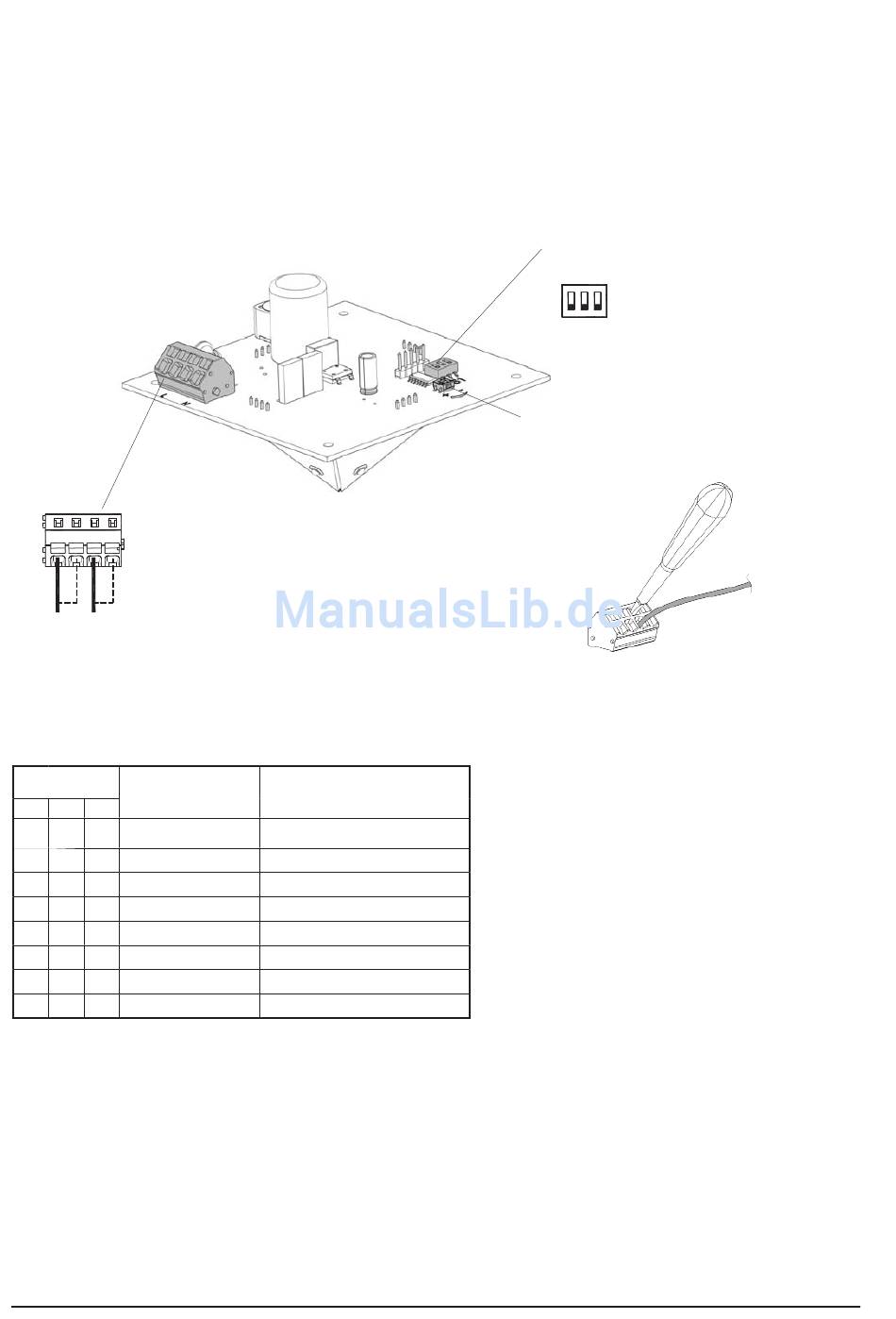

X1
1 2 3 4
Connection terminal
L N
-
+
Reverse voltage protection!
Function is granted when polarity is reversed.
S1
Operation mode
1 2 3
OFF OFF OFF
ON
OFF OFF
ON
OFF OFF
OFF ON ON
ON
OFF OFF
ON ON
OFF
ON ON OFF
ON ON ON
4. Maintenance, Service and Ordering Spare Parts
The multifunction light is maintenance-free.
The polycarbonate housing may only be cleaned with water and a mild detergent solution.
As a principle, repairs are to be carried out at the manufacturer's factory. Parts (only use original spare parts) can be replaced
by suitably qualifi ed personnel.
085 501 993a
1 Flashing light 0,75 Hz
2 Flashing light 1 Hz
3 Continuous light
4 Blinking light 1 Hz
5 Flashing light 2 Hz
6 Blinking light 2 Hz
7 Flashing light 0,1 Hz
8 Flashing light 0,5 Hz
S1
Selection of operation mode
1 2 3
Control of light intensity
Wire connection
4
ON
