attach it through the 4 holes
in the corners of enclosure to
the wall or ceiling with appro-
priate screws (pict. 5).
Style Variant 28021
Loose the snap hooks of the
legend cover with a qualified
slot-headed screwdriver (pict.
3) and lift the cover from the
enclosure. Remove the lamp
from the socket. Loose the
snap hooks of the trapeze
shaped cover at the entries-
and mounting-side of the
luminaire (pict. 4). According
to assembly conditions close
open cable entries with
sealing stoppers and stamp
or cut out a hole.
Details see Style Variant
28011!
Mount the luminaire with
appropriate screws to the
ceiling or use CEAG spare
parts (pict. 6).

5.2 Mains Connection

The mains cable should be
connected to the terminals N, L,
L' and PE terminal, where L is
an un-switched permanent
connection for the electronics
and L' is used for switching the
lamp on and off with a light switch
as and when required (Fig. 7).
The PE-connection serve
as function earth. It has
no function of protection.

5.3 Complete Luminaire

Plug the faston plugs of the
battery cables to the contact
plugs on the conductor board -
red wire to +(plus), blue wire to -
(minus) (Fig. 9).
To fathom batteries life
please note the start-up
date on the battery in the given
data field.
Style Variant 28011:
Put up the top part of enclo-sure
and fix it with the 4 screws.
Style Variant 28021:
Put in the trapeze shaped cover
between the adjusted trapeze
shaped blocks of en-closure
and snap the 4 snap hooks.
Snap the legend cover on the
enclosure of the luminaire.
non maintained
switched
light without -
maintained
maintained light
light

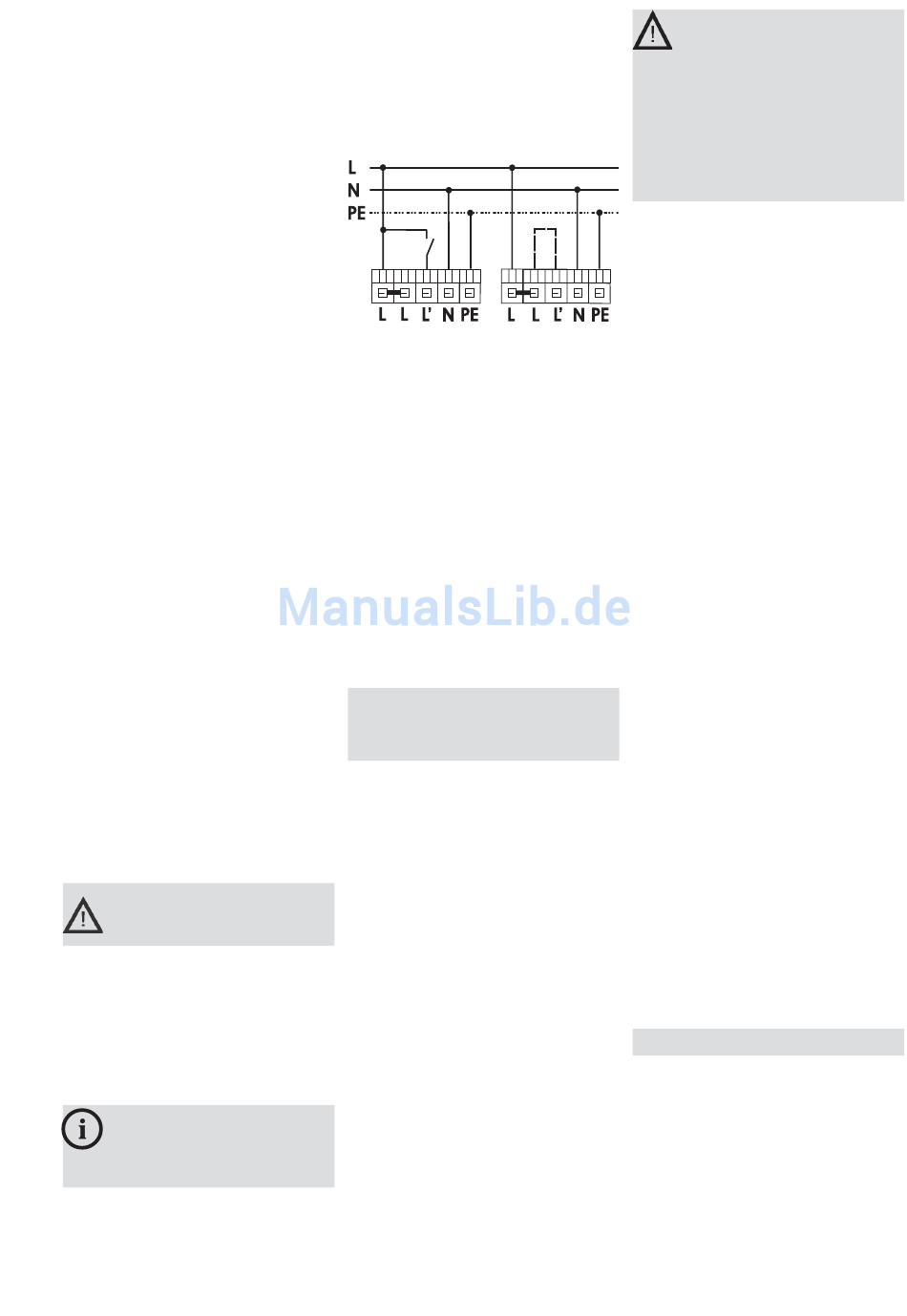

with jumper L
Fig. 10
and L'
Optionally, every luminaire can
be operated with light switching
(switched maintained light), in
non maintained mode or in main-
tained
mode (Fig.10).
Button/LED-foil-connection
Changing button/LED or printed
circuit please see marker 1 on
the printed circuit and on the
printed conductor (Fig. 9).
After mains return the emergency
operation will stay for approx. 1
minute (delay on mains return)!
5.4 CGLine Monitoring
Device
The STYLE Variant 28011/28021
luminaires are prepared for
connection to the CEAG CG-
Controller CGLine 400 (Fig. 9).
An individual, distinct identi-
fication number (6 characters) is
assigned to every luminaire in
the CGLine luminaire series.
This ID number must be trans-
ferred to the installation plan for
subsequent configuration work.
The removable ID sticker in the
luminaire can be used for this.
Up to 100 luminaires can be
connected to a 2-core bus cable
and linked to the CG-Controller
CGLine 400.
The CG-Controller can monitor
max. 4 bus cables with 100
luminaires each.
10
The max. data line length
per strand is
0.5 mm 2 - 450m
1.0 mm 2 - 900m
1.5 mm 2 - 1300m
Data per strand:
Bus voltage:
Max. voltage drop: 13VDC
Bus current:
An unscreened, 2-core cable
with free bus topology can be
used as a data cable.
Each of the luminaires connected
to the data bus cable is auto-
matically recognised by the CG-
Controller. The CG-Controller
can assign a short address to
the connected luminaires, which
can be polled via the three LEDs
on the luminaire.
The three LEDs (Fig.8) on the
luminaire indicate the following
status:
- no fault
- luminaire in function test
- luminaire in duration test
- charging fault
- function test - fault
- duration test - fault
- luminescent material faultyIn
addition, the following can be
started and displayed with the
test button:
- function test ON
- duration test ON / OFF
- duration test delayed
- setting the emergency light
operating time with subse-
quent identification of the
luminaire short address
(when data bus is connected
and the CG-Controller has
issued short addresses).
The delayed duration test is
displayed if the luminaire is not
charged without interruption for
24 h or if an duration test is
started within the 24 h.
see Table 2 page 11
For further details see the
operating manual of the CG-
Controller CGLine 400
No.:400 71 860 016
Autarchic Operation
After the initial installation / mains
connection the luminaire starts the
function test weekly and a dura-
tion test every three months also
without
the
CG-Controller
CGLine.
22.5VDC
400mA
