Features

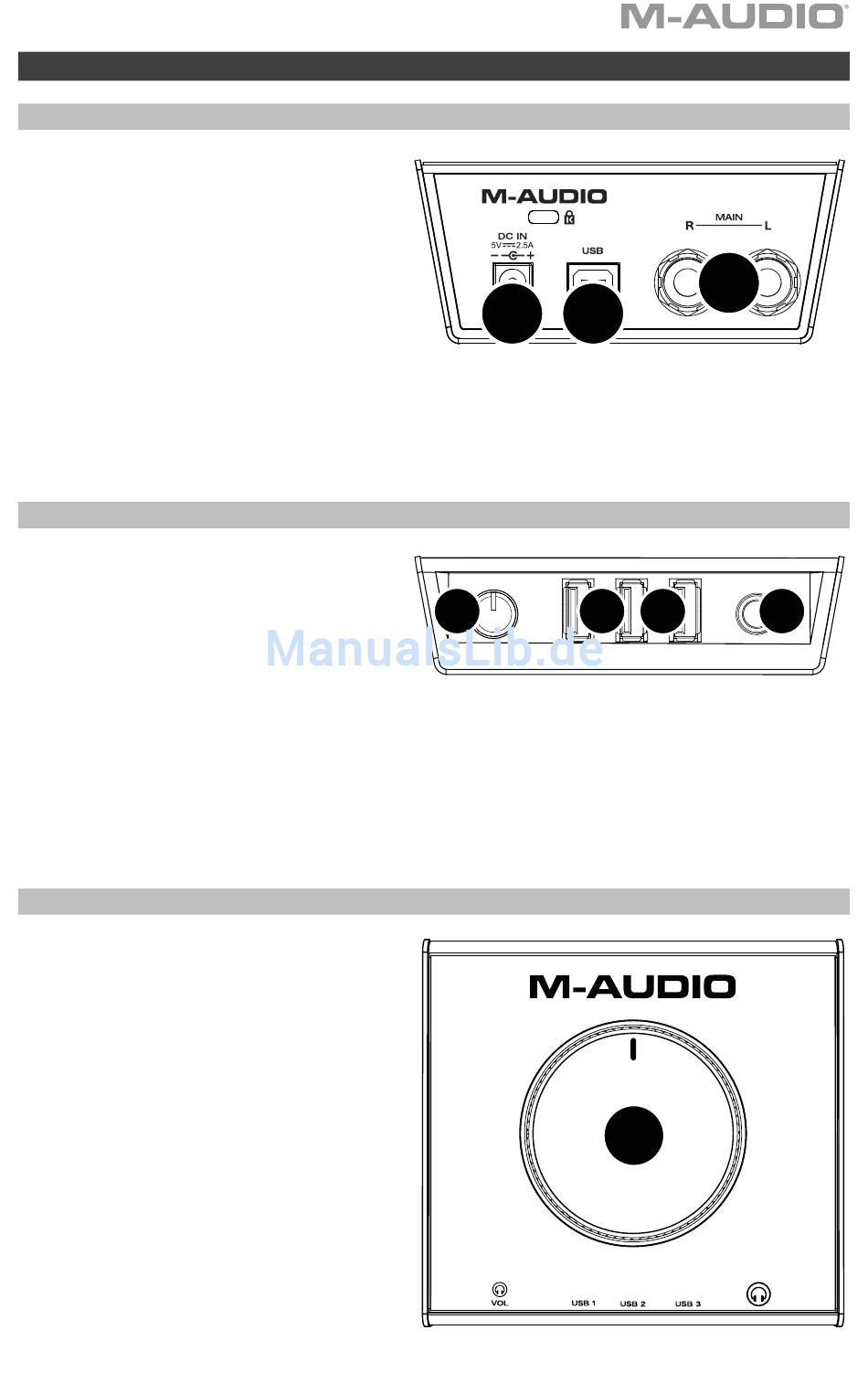

Rear Panel
USB Port: This connection will allow
1.
you to send audio, MIDI, and other
data to and from a computer. Use a
USB cable to connect the M-Track
Hub to a computer. The M-Track
Hub requires a USB 2.0 connection
(or higher).
2. Power Input: Connect the included
power adapter (5 V, 2.5 A, center–
positive) here, then connect the adapter to a power outlet.
Main Outputs: Use standard 1/4" (6.35 mm) TRS cables to connect these outputs to
3.
your powered monitors, an amplifier system, etc. Use the Monitor Level knob to adjust
their levels.
Front Panel
Headphone Output: Connect 1/4"
1.
(6.35 mm) TRS headphones to this
output.
2. Headphone Volume: Adjusts the
output volume of the Headphone
Output.
3. USB Hub Outputs: You can connect additional USB devices (controllers, hard drives,
etc.) to these powered USB ports. In addition to being an audio interface, these ports
allow M-Track Hub to function as a powered USB hub. This can be useful if you run out
of available USB ports on your computer.
Note: In order to use the USB hub outputs, M-Track Hub must be connected to the
power adapter.
Top Panel
1. Monitor Level: Adjusts the output
volume of Main Outputs, which
should be connected to your powered
monitors or amplifier system.
2 1
2
3 3
M -TRACK
M-TRACK
HUB
3
1
1
HUB
