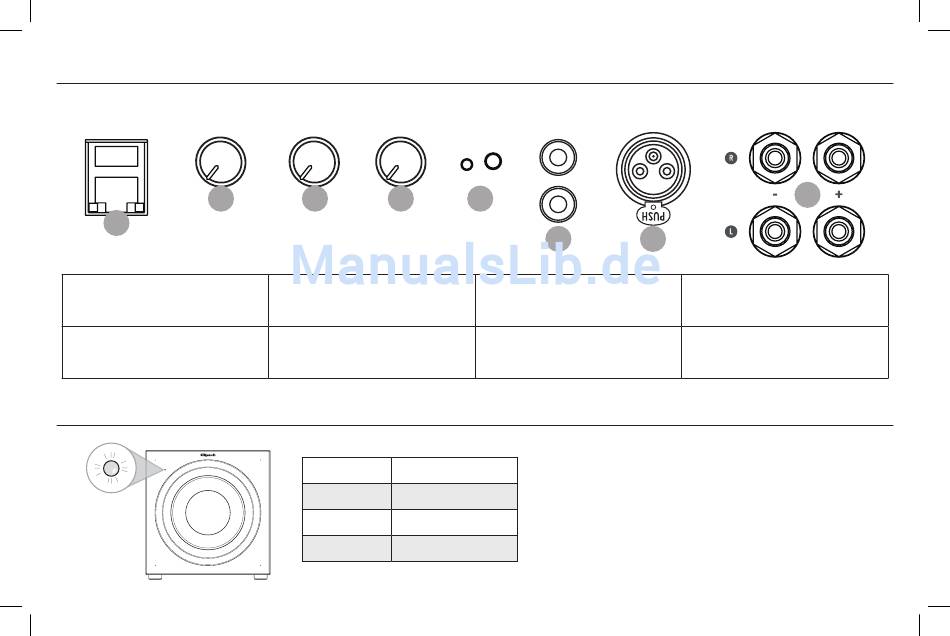

CONNECTIONS
VOLUME 1
ETHERNET RCA/BALANCED
2
1
1 - Ethernet Input
for IP Control
5 - PAIR / RESET Button
For Pairing to WA-3 Wireless Transmitter*

FRONT LED

VOLUME 2 VOLUME 3
HI LEVEL WIRELESS PAIR/RESET
3 4
2 - Line Level Volume Control
Controls Volume RCA and XLR input
6 - RCA Unbalanced Line Input
WHITE On
BLUE On, App Connected
ORANGE Firmware Updating
OFF Standby
RCA BALANCED
LINE IN LINE IN
5
6 7
3 - Hi-Level Volume Control
Controls Volume of High Level Input
7 - XLR Balanced Line Input
HI LEVEL IN
8
4 - Wireless Volume Control
Controls Volume of Wireless Input*
8 - Hi-Level (Speaker Level) Input
*See WA-3 Kit manual for more information
