Getting Started

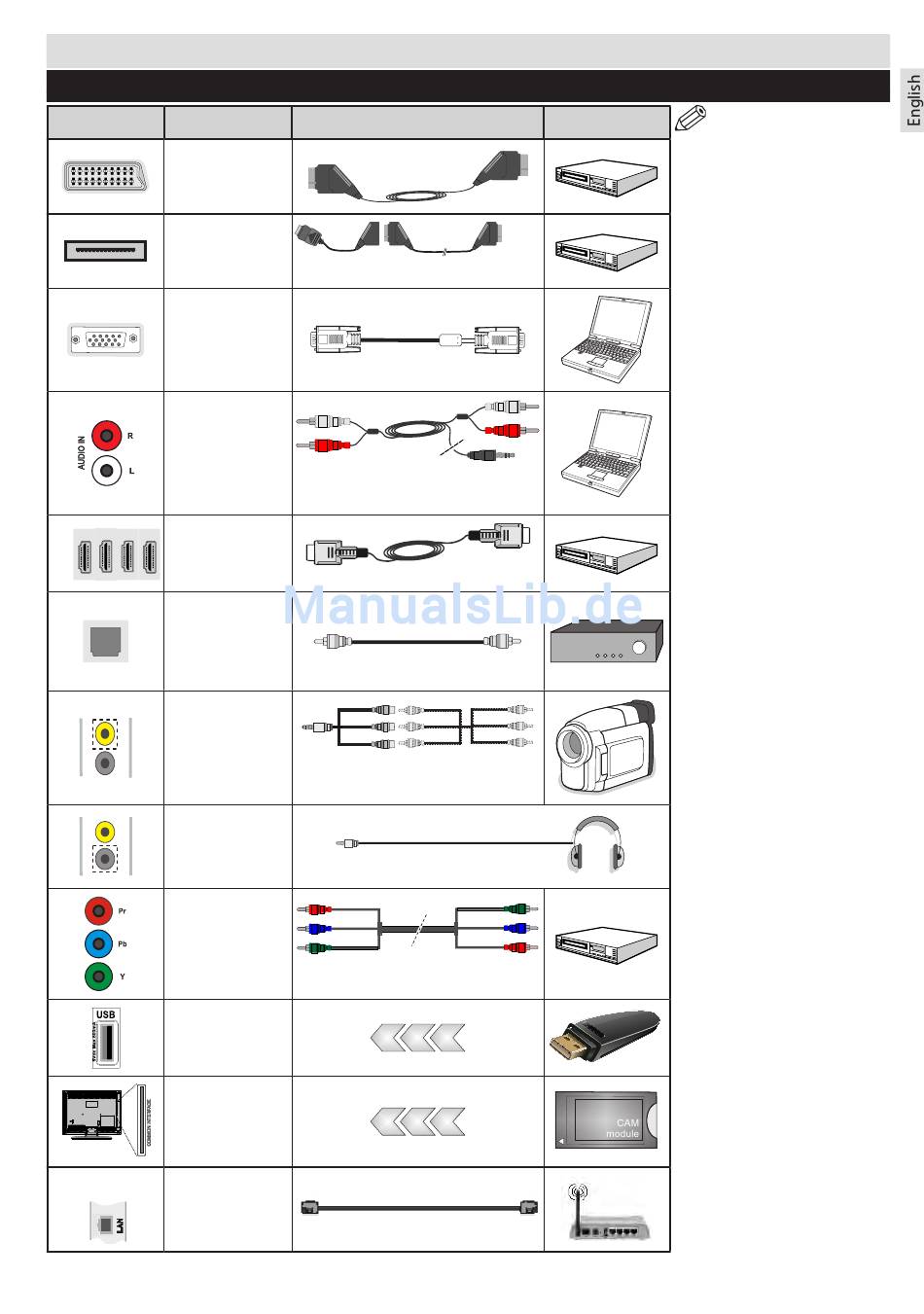

Connections

Connector Type
Scart
Connection
(back)
Mini Scart
Connection
(rear bottom)
VGA
Connection
(back)
PC/YPbPr
Audio
Connection
(back)
HDMI
Connection
(bottom&side)
S/PDIF
(Optical Out)
Connection
(bottom)
Side AV
(Audio/Video)
Connection
(side)
Headphone
Connection
(side)
YPbPr Video
Connection
(side)
USB
Connection
(side)
CI
Connection
(side)
LAN
Ethernet
Connection
(side)
Cables
Mini Scart adapter
cable (supplied)
Side Audio
YPbPr or PC Connection Cable
(not supplied)
Side AV
Connection Cable
(supplied)
YPbPr Connection
Cable(not supplied)
LAN / Ethernet Cable
Device
NOTE: When connecting
a device via the YPbPr or
S i d e AV i n p u t , y o u m u s t
u s e a c o n n e c t i o n c a b l e s
to enable connection. See
t h e i l l u s t r a t i o n s a b o v e . |
To e n a b l e P C a u d i o , y o u
will need to use the SIDE
AV CONNECTION cable's
WHITE & RED inputs. | If an
external device is connected
via the SCART socket, the TV
will automatically switch to AV
mode.| When receiving DTV
channels (Mpeg4 H.264) or
while in Media Browser mode,
output will not be available
via the scart socket. | When
using the wall mounting kit
(optional), we recommend
that you plug all your cables
into the back of the TV before
mounting on the wall. | Insert
or remove the CI module only
when the TV is SWITCHED
OFF. You should refer to the
module instruction manual
for details of the settings.
| Each USB input of your TV
supports devices up to 500mA.
Connecting devices that have
current value above 500mA may
damage your TV.
Always connect a USB medium
directly to the USB port on the
TV. The use of a USB extension
cord is not supported by the
TV. The TV's USB port cannot
communicate with a PC.
