Getting Started

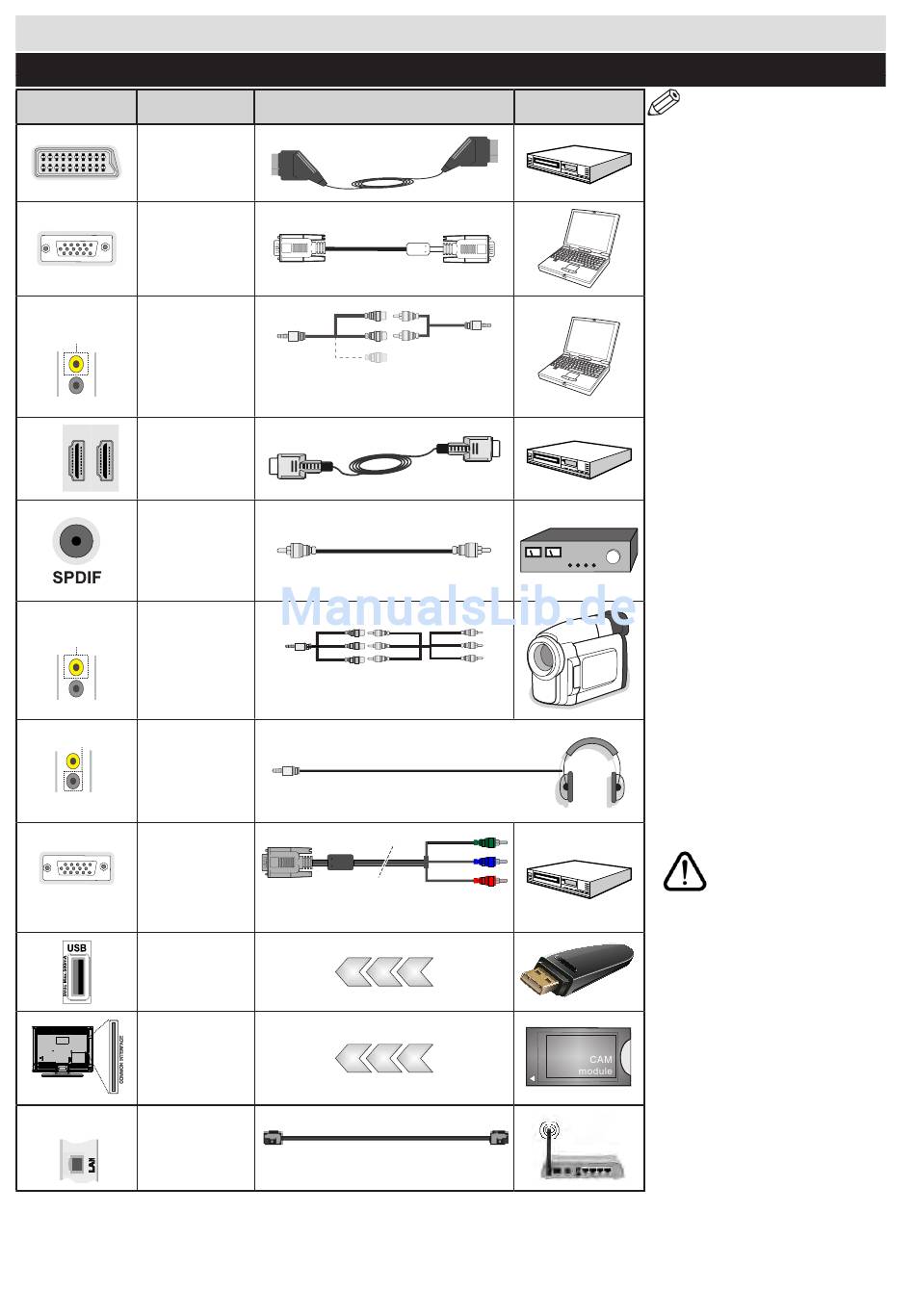

Connections

Connector Type
Scart
Connection
(back)
VGA
Connection
(back)
PC/YPbPr
SIDE AV
Audio
Connection
(side)
HDMI
Connection
(back)
SPDIFF
(Coaxial Out)
Connection
(back)
Side AV
SIDE AV
(Audio/Video)
Connection
(side)
HEADPHONE
Headphone
Connection
(side)
YPbPr Video
Connection
YPBPR
(side)
USB
Connection
(side)
CI
Connection
(side)
LAN
Ethernet
Connection
(back)
38
Cables
Side Audio/Video
Connection Cable PC Audio Cable
(Supplied) (Not supplied)
Side AV Connection
Cable (supplied)
YPbPr Connection
Cable
LAN / Ethernet Cable
Device
NOTE: When connecting a
device via the YPbPr or Side AV
input, you must use connection
cables to enable connection.
See the illustrations on the left
side. | To enable PC audio,
you will need to use SIDE AV
CONNECTION cable's WHITE
& RED inputs. | If an external
device is connected via the
S C A RT s o c k e t , t h e T V w i l l
a u t o m a t i c a l l y s w i t c h t o AV
mode.| When receiving DTV
channels (Mpeg4 H.264) or
while in Media Browser mode,
output will not be available via
the scart socket. | When using
the wall mounting kit (optional),
we recommend that you plug all
your cables into the back of the
TV before mounting on the wall.
| Insert or remove the CI module
only when the TV is SWITCHED
OFF. You should refer to the
module instruction manual for
details of the settings. | Each
USB input of your TV supports
devices up to 500mA. Connecting
devices that have current value
above 500mA may damage your
TV.
Always connect a USB medium
directly to the USB port on the TV.
The use of a USB extension cord is
not supported by the TV. The TV's
USB port cannot communicate
with a PC.
If you want to connect a
device to the TV, make
sure that both the TV and
the device are turned off before
making any connection. After the
connection is done, you can turn
on the units and use them.
