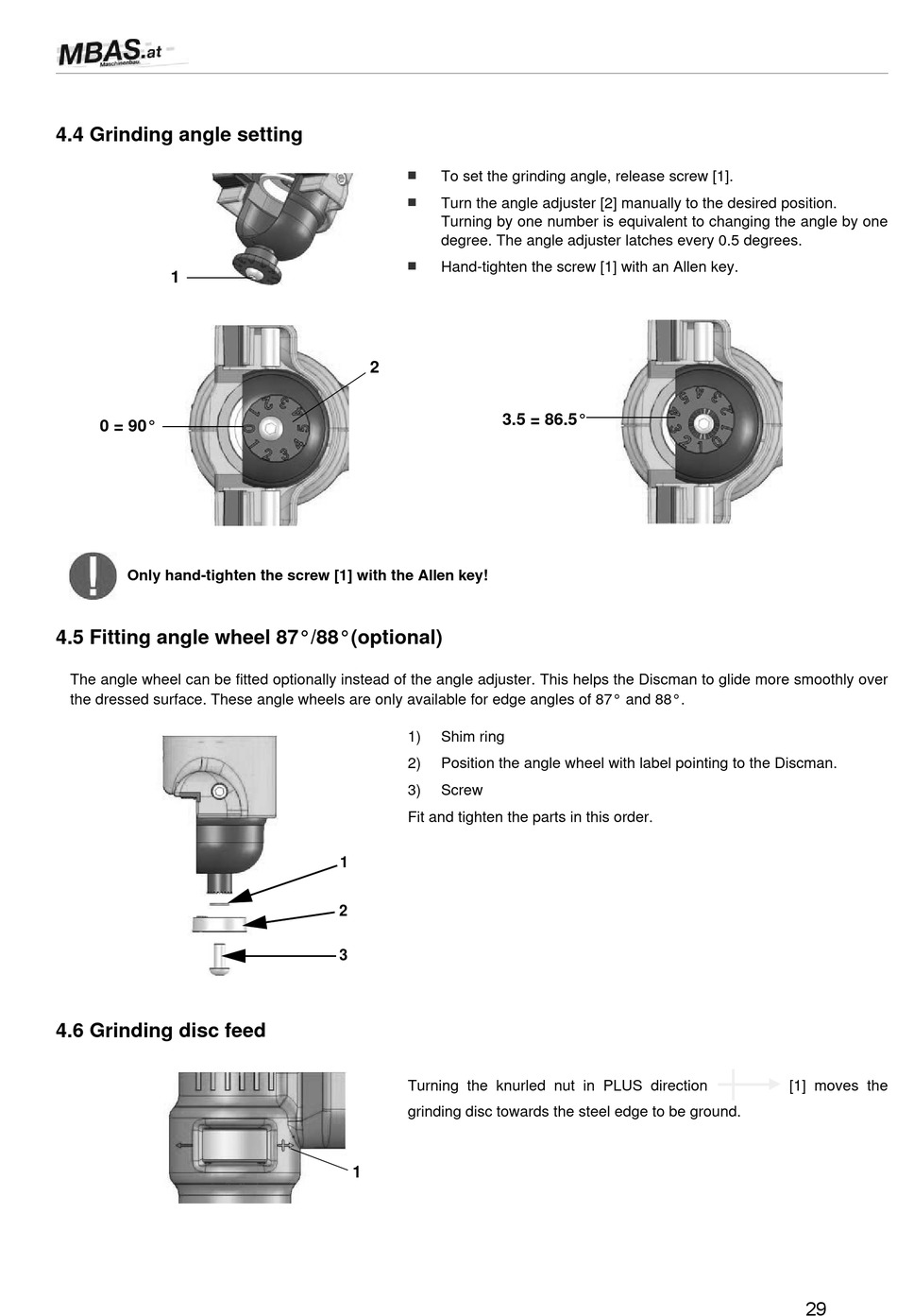

4.4 Grinding angle setting

1
0 = 90°
Only hand-tighten the screw [1] with the Allen key!
4.5 Fitting angle wheel 87°/88°(optional)
The angle wheel can be fitted optionally instead of the angle adjuster. This helps the Discman to glide more smoothly over
the dressed surface. These angle wheels are only available for edge angles of 87° and 88°.

4.6 Grinding disc feed

Discman 2
 To set the grinding angle, release screw [1].
Turn the angle adjuster [2] manually to the desired position.

Turning by one number is equivalent to changing the angle by one
degree. The angle adjuster latches every 0.5 degrees.
Hand-tighten the screw [1] with an Allen key.

2
3.5 = 86.5°
1) Shim ring
2) Position the angle wheel with label pointing to the Discman.
3) Screw
Fit and tighten the parts in this order.
1
2
3
Turning the knurled nut in PLUS direction
grinding disc towards the steel edge to be ground.
1
[1] moves the
