Sealing
– Press the yellow button (7/1) with the right thumb
until the seal is notched and the strap is cut off.
– Raise the motor up to the handle (8/1) and swivel
the tool away from the strapping to the right at the
rear.
– Check the seal (see chapter 6.2).
Never transport or move packaged
goods with incorrectly notched seals.

6.2 CHECKING THE SEAL

– Check the appearance of the seal at regular inter-
vals.
– To obtain the maximum seal efficiency, the notches
have to be cut properly into the seal (Fig. 9/1).
1 Good seal (seal is evenly notched and the notches
are deep enough)
2 Poor seal (seal not notched deeply enough or the
seal is deformed or has sharp edges)
3 Poor seal (seal notched unevely)
If notching has not been carried out satisfactorily, per-
form new sealing with correct tool handling.
In case of faulty seals, the following parts subject to
wear must be replaced (see chapter 7.4):
– notcher
– jaws
– bolts
Use only original spare parts.
18

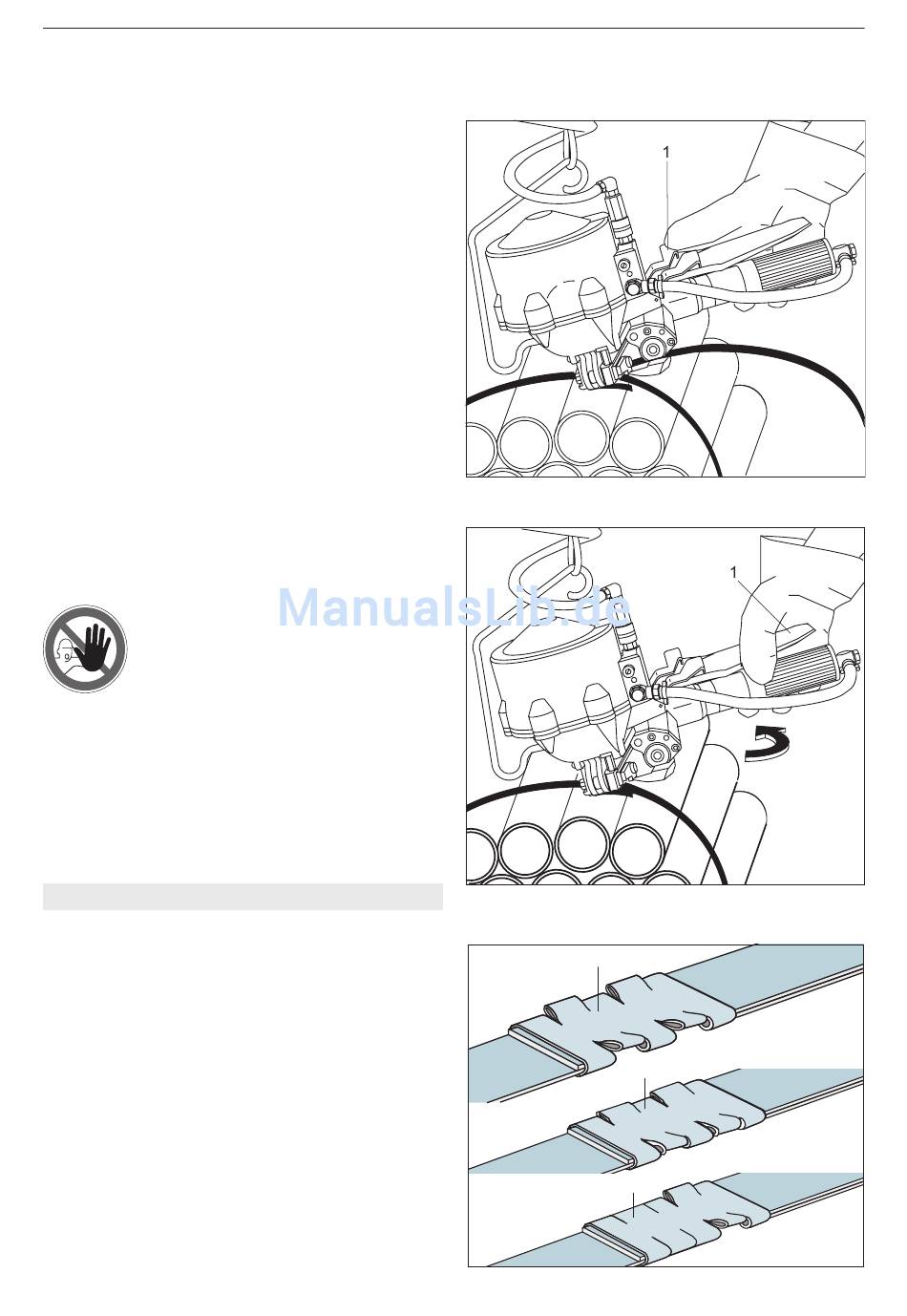

Fig. 7
