OPERATING INSTRUCTIONS

2
1
1
2
3

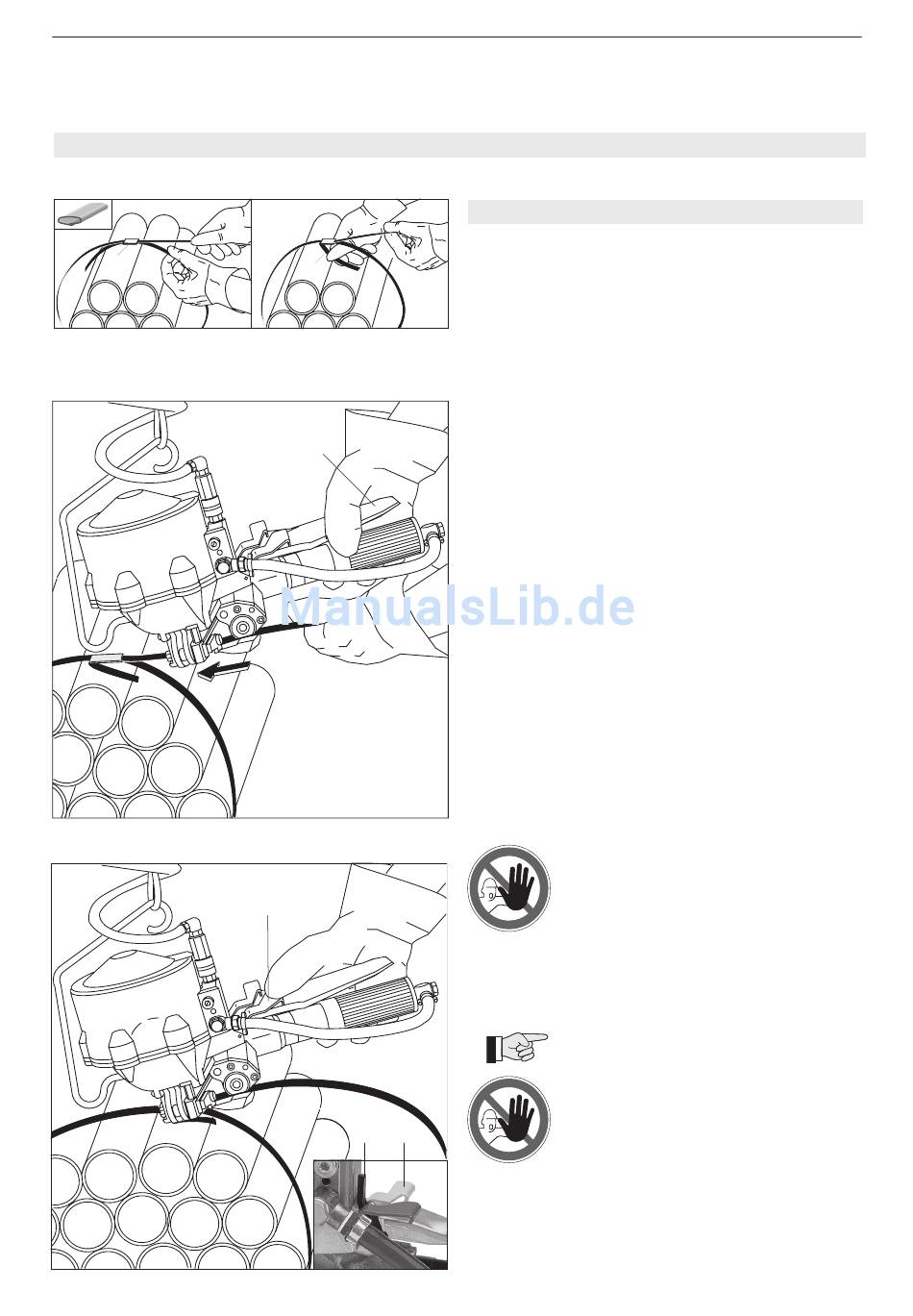

6.1 OPERATING THE TOOL

– Draw the strap from the dispenser, slide the strap
through the seal (4/1) and wind strap around the
package.
– Push the strap start a second time through the seal.
– Bend the strap start (4/2) below the seal 3–4 cm
(1–2").
– Pull the strap tightly by hand and take a portion of
the strap leading to the dispenser with the left hand
approx. 20 cm (8") away from the seal.
– Hold the handle (5/1) of the tool in the right hand
and raise the motor up to the stop.
– Insert the strap below the tension wheel completely
into strap guide. At the same time push the tool
forward against the seal.
– Release the motor.
Before tensioning ensure that no other
persons are in the danger area!
Tensioning
– Press the green button (6/1) completely down with
the thumb of the right hand, until the required strap
tension is reached.
The maximum tensioning force can be
infinitely adjusted (see chapter 7.1).
Interrupting the tensioning process
– Press catch (6/2) to the right or tapping
yellow button (6/3) briefly, green button
rises and tensioning is interrupted.
Strapex STR 65
