Description; Design; Function - strapex STR 65 Betriebsanleitung

4
11
10
9
Fig. 1
2
1
5
Fig. 2
12.11

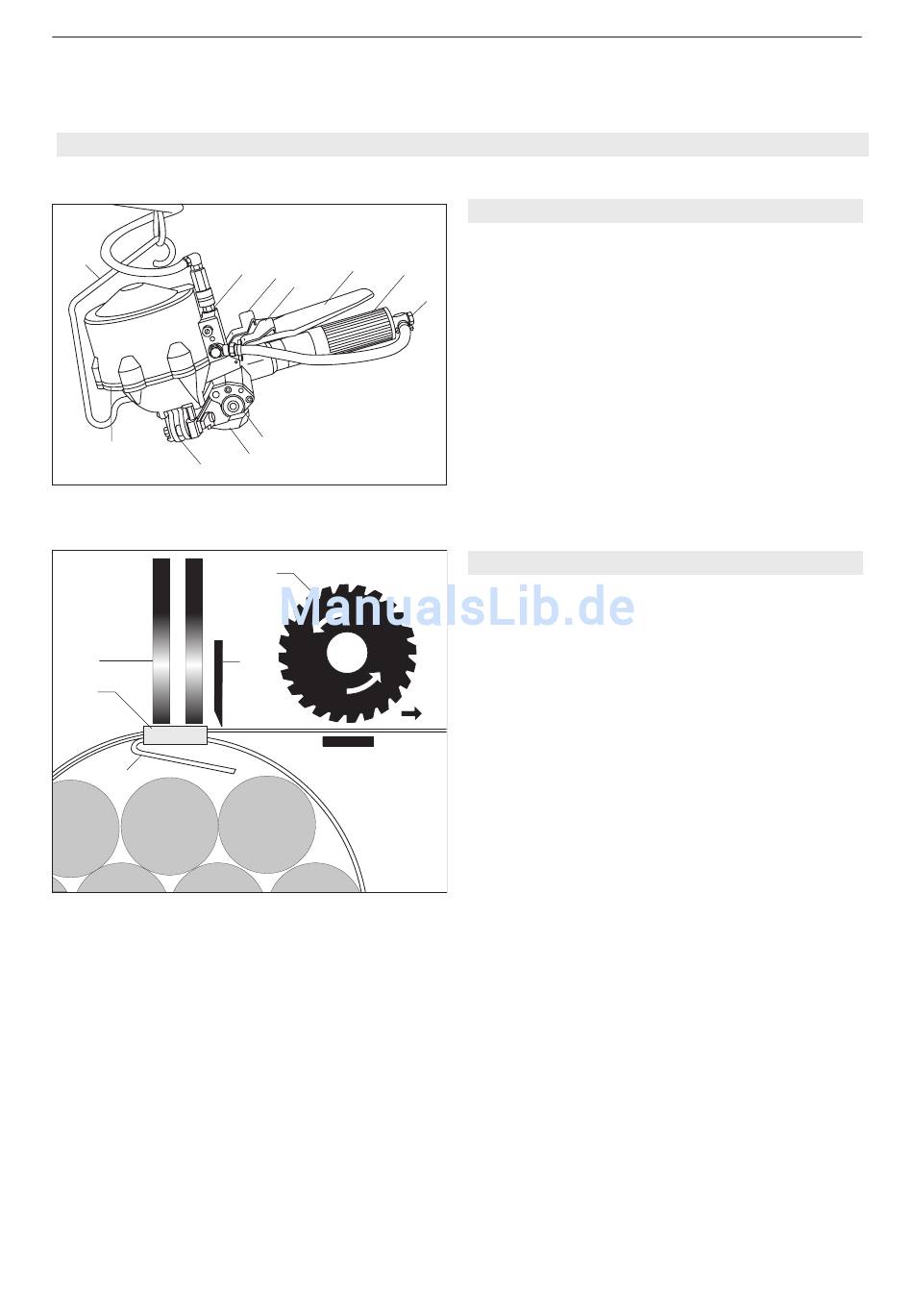

DESCRIPTION

4
1 5
2
3
7
8
4
3
1 Compressed air connection
2 Yellow button (Sealing)
3 Green button (Tensioning)
6
4 Handle
5 Compressed air motor
6 Pressure reduzing valve
7 Tension wheel and tension plug
8 Base plate
9 Sealing jaws
10 Compressed air cylinder
11 Suspension bow
– Feed the strap manually through the seal (2/1).
– Bend the strap start (2/5).
– Tensioning by feed wheel principle (2/4).
– Sealing by notching (2/2) the seal.
– Strap cut with knife (2/3).
Strapex STR 65

4.1 DESIGN

4.2 FUNCTION
