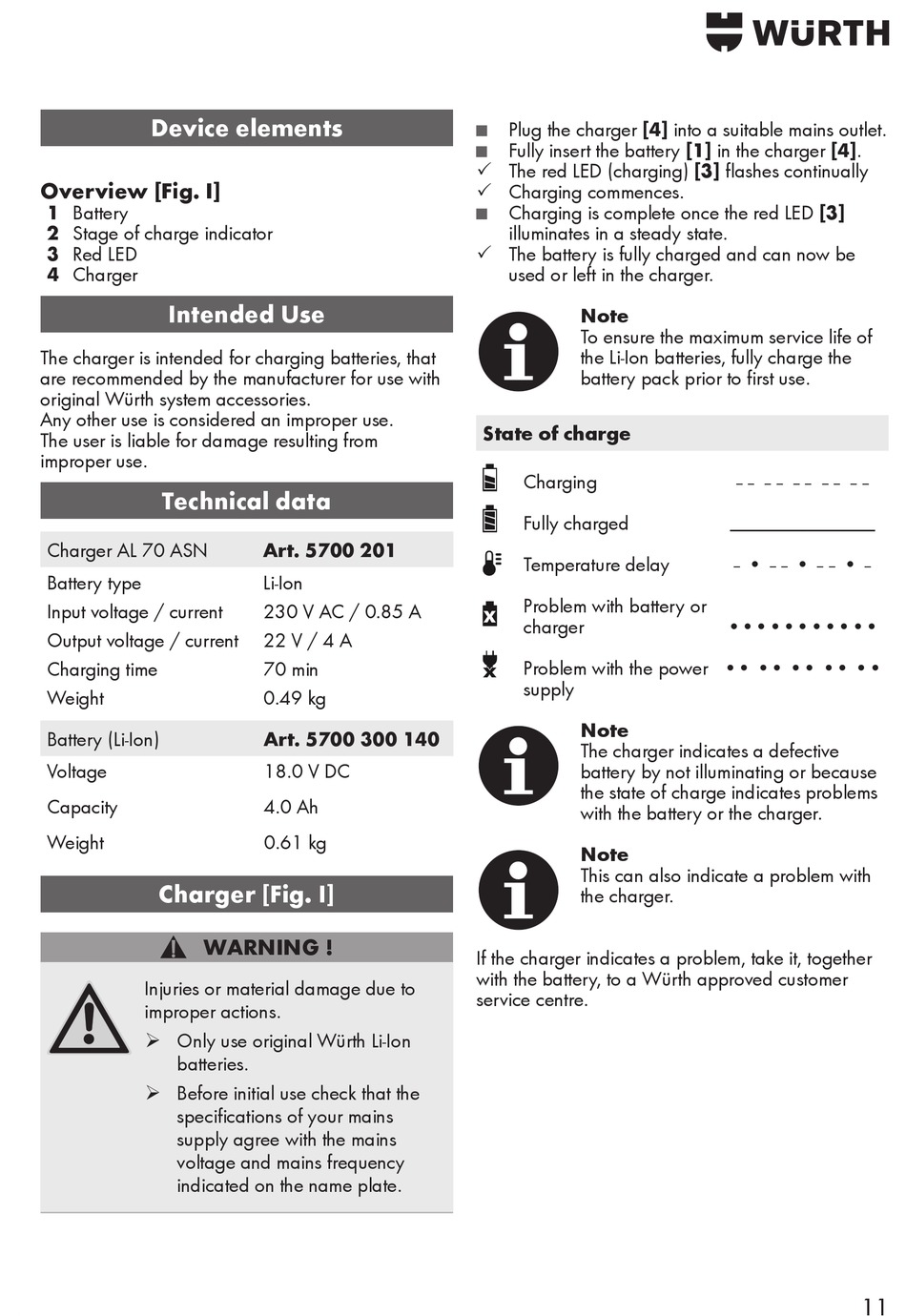

Device elements

Overview [Fig. I]
1 Battery
2 Stage of charge indicator
3 Red LED
4 Charger

Intended Use

The charger is intended for charging batteries, that
are recommended by the manufacturer for use with
original Würth system accessories.
Any other use is considered an improper use.
The user is liable for damage resulting from
improper use.

Technical data

Charger AL 70 ASN
Battery type
Input voltage / current
Output voltage / current
Charging time
Weight
Battery (Li-Ion)
Voltage
Capacity
Weight
Charger [Fig. I]
WARNING !
Injuries or material damage due to
improper actions.
¾ Only use original Würth Li-Ion
batteries.
¾ Before initial use check that the
specifications of your mains
supply agree with the mains
voltage and mains frequency
indicated on the name plate.
Art. 5700 201
Li-Ion
230 V AC / 0.85 A
22 V / 4 A
70 min
0.49 kg
Art. 5700 300 140
18.0 V DC
4.0 Ah
0.61 kg
Plug the charger [4] into a suitable mains outlet.
■
Fully insert the battery [1] in the charger [4].
■
3 The red LED (charging) [3] flashes continually
3 Charging commences.
Charging is complete once the red LED [3]
■
illuminates in a steady state.
3 The battery is fully charged and can now be
used or left in the charger.
Note
To ensure the maximum service life of
the Li-Ion batteries, fully charge the
battery pack prior to first use.
State of charge
Charging
Fully charged
Temperature delay
Problem with battery or
x
charger
Problem with the power
supply
Note
The charger indicates a defective
battery by not illuminating or because
the state of charge indicates problems
with the battery or the charger.
Note
This can also indicate a problem with
the charger.
If the charger indicates a problem, take it, together
with the battery, to a Würth approved customer
service centre.
–– –– –– –– ––
______________
– • –– • –– • –
•••••••••••
•• •• •• •• ••
11
