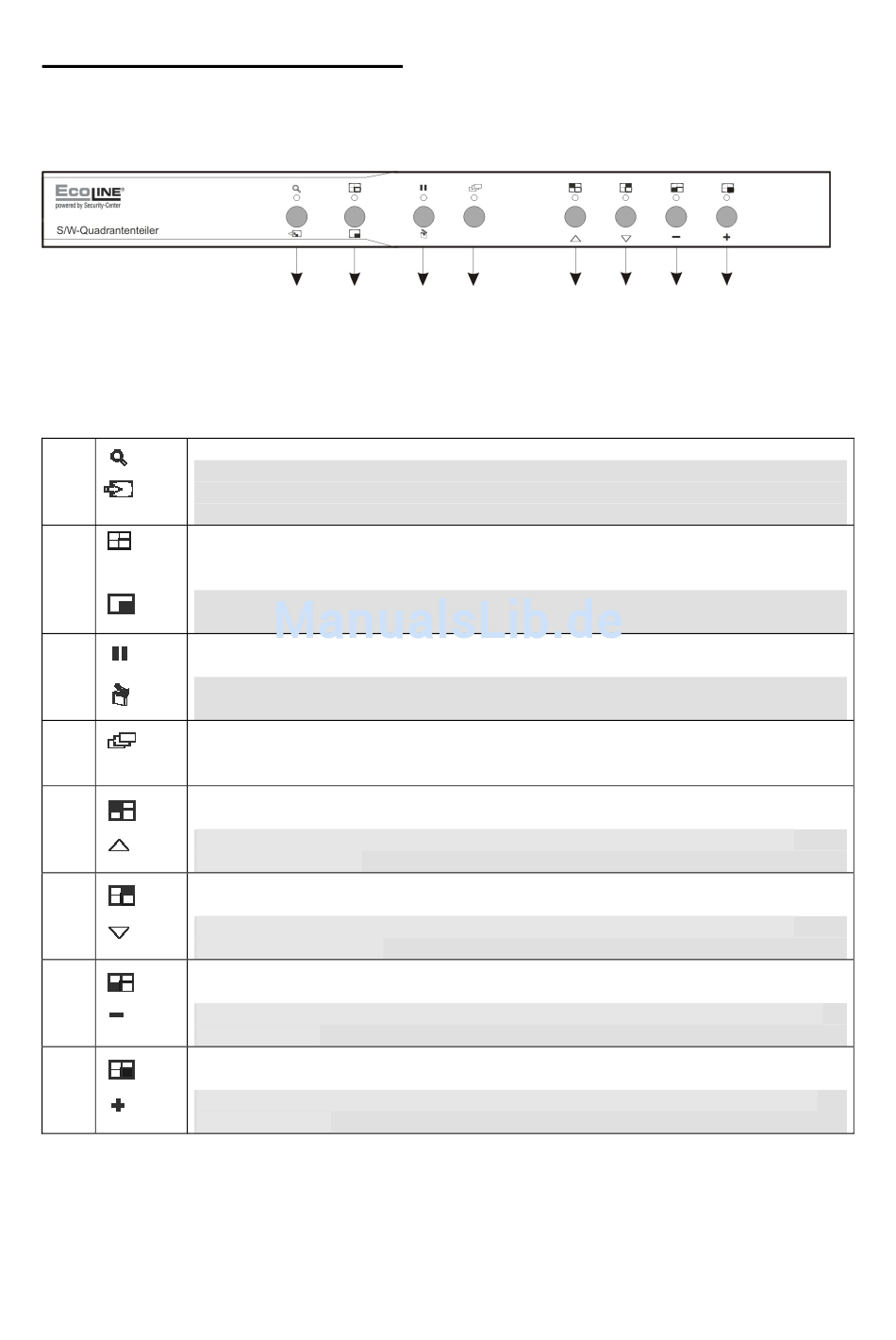

Description of the operating keys
This part of the instructions gives you a brief overview of the available operating and control keys as well as
the inputs and outputs of the ECOLINE Quad.
Except for one, all keys have a double function. The main function is indicated above on the key; the
secondary function is indicated below on the key and is activated by pressing the key for at least two
seconds. Each key also has a LED display.
(1)
This key is used to activate and deactivate the digital zoom function.
Press this key for at least two seconds to access the on-screen menu. Within the menu
briefly press the key to select a submenu or menu item or to exit a submenu.
(2)
This key activates the quadrant display and switches between quad split, picture-in-
picture 1 and picture-in-picture 2. If the digital zoom function is activated, it serves to
switch between enlarged and normal picture.
Press this key for at least two seconds to activate or deactivate the picture-in-picture
function.
(3)
This key "freezes" the current display and produces a still picture of the scene.
Pressing again releases the freeze.
Press this key for at least two seconds to select the video output signal of the recording
device as video input source.
(4)
This key activates the automatic sequencing function. To deactivate the sequencing
function, press one of the camera keys or the Quad key.
(5)
This key switches to camera input 1 when during Live view and represents it full screen.
In the programming mode, this key is used to change a menu item or to move a
picture frame upward.
(6)
This key switches to camera input 2 when during Live view and represents it full screen.
In the programming mode, this key is used to change a menu item or to move a
picture frame downward.
(7)
This key switches to camera input 3 when during Live view and represents it full screen.
In the programming mode, this key is used to decrease a value or to move a picture
frame to the left.
(8)
This key switches to camera input 4 when during Live view and represents it full screen.
In the programming mode, this key is used to increase a value or to move a picture
frame to the right.
(1)
(2)
(3)
25
(4)
(5)
(6)
(7)
(8)
