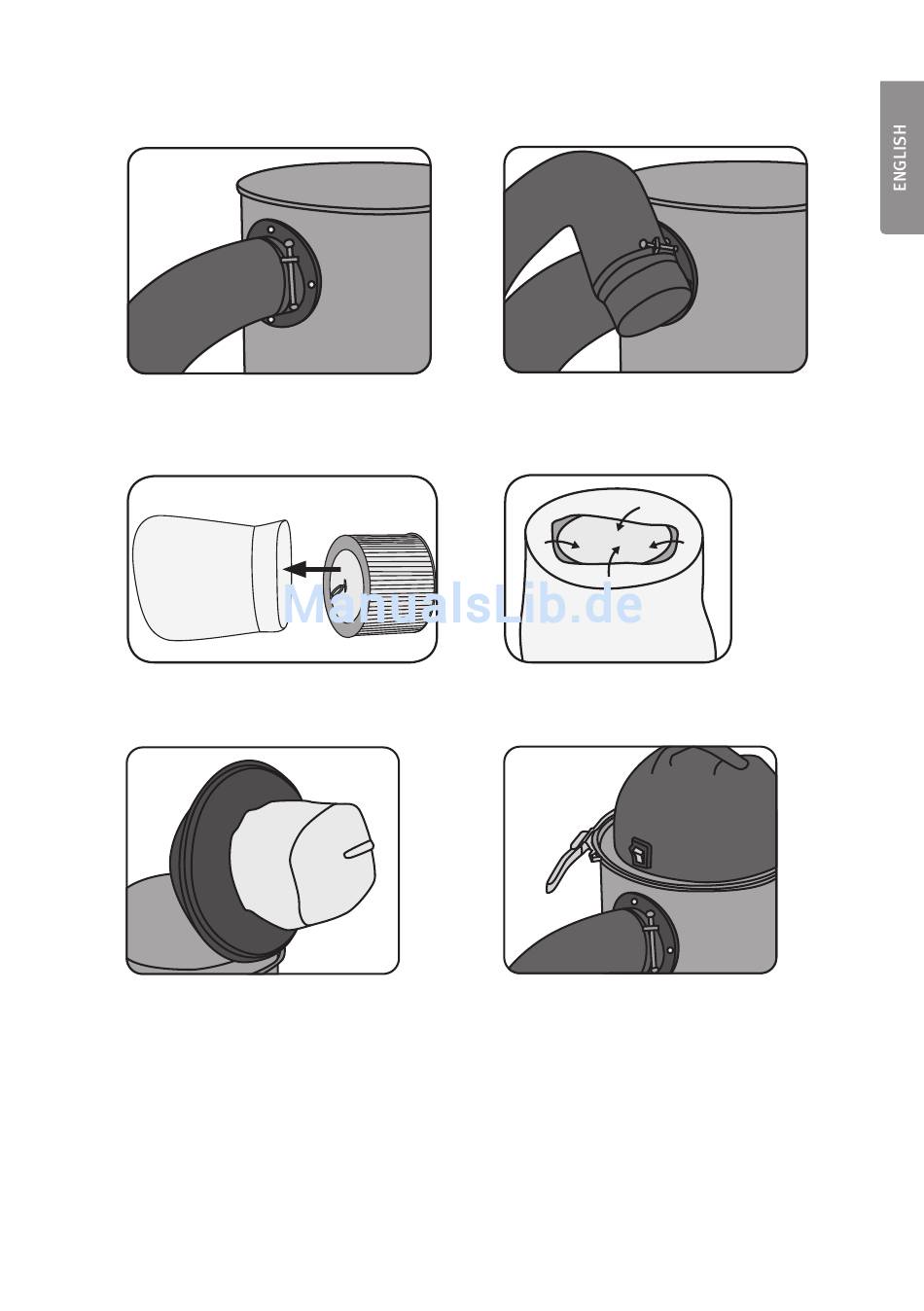

Assembly
1. Attach the suction hose to the hose
inlet on the collection tank using one
of the hose clips.
3. Place the cartridge filter inside
the pre-filter.
5. Push the cartridge filter with
the attached pre-filter onto
the motor unit.
7. Connect the suction hose to the woodworking machine using the appropriate
reducer coupling (10).
2. Attach the hose adaptor (2) to
the other end of the suction hose
using the other hose clip.
4. Tuck the end of the pre-filter into
the cartridge filter.
6. Fit the motor unit onto the collection
tank making sure that the [ l/0 ] on/
off switch is positioned straight above
the hose inlet port. Attach the motor
unit to the collection tank using
the over-centre latch clamp.
