OPERATING INSTRUCTIONS
INSTRUCTIONS D'UTILISATION
Model No./Modell-Nr./Numéro de modèle
© Panasonic Corporation 2011
Printed in Japan
Warning
This apparatus must be earthed for your safety.
To ensure safe operation the three-pin plug must be in-
serted only into a standard three-pin power point which
is effectively earthed through the normal household wir-
ing.
Extension cords used with the equipment must be three-
core and be correctly wired to provide connection to
earth. Wrongly wired extension cords are a major cause
of fatalities.
The fact that the equipment operates satisfactorily does
not imply that the power point is earthed and that the
installation is completely safe.
For your safety, if you have any doubt about the effec-
tive earthing of the power point, consult a qualified elec-
trician.
FOR YOUR SAFETY PLEASE READ THE FOLLOW-
ING TEXT CAREFULLY
This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A 3 amp fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that
the replacement fuse has a rating of 3 amps and that it
is approved by ASTA or BSI to BS 1362.
Check for the ASTA mark
body of the fuse.
If the plug contains a removable fuse cover you must
ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until
a replacement cover is obtained.
A replacement fuse cover can be purchased from your
local Panasonic Dealer.
IF THE FITTED MOULDED PLUG IS UNSUITABLE
FOR THE SOCKET OUTLET IN YOUR HOME THEN
THE FUSE SHOULD BE REMOVED AND THE PLUG
CUT OFF AND DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL
SHOCK IF THE CUT OFF PLUG IS INSERTED INTO
ANY 13 AMP SOCKET.
BEDIENUNGSANLEITUNG

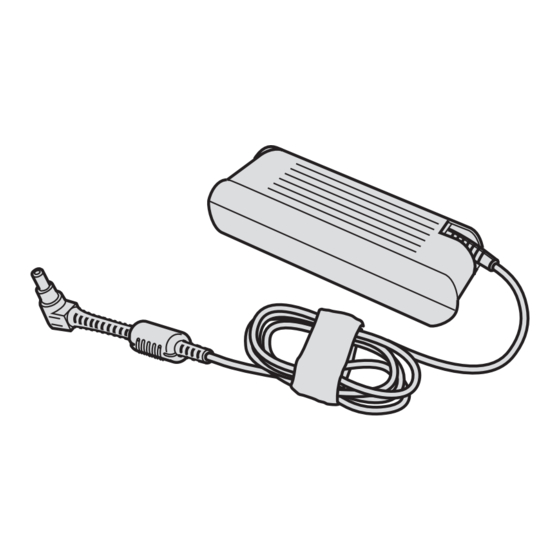

AC Adaptor
Netzadapter
Adaptateur secteur
CF-AA6503A2
DFQW5552YA HS0911-1121
or the BSI mark
The AC adaptor is designed for supplying power to the
Panasonic computer series. Before using the AC adap-
tor, read this instruction manual and the relevant portions
of the computer's instruction manual carefully.
Dieser Netzadapter ist für die Versorgung von Panasonic
Produkten vorgesehen. Vor dem Einsatz des Netzad-
apters lesen Sie bitte diese Anleitung genau durch, und
informieren Sie sich in den entsprechenden Abschnitten
des Computerhandbuches.
L'adaptateur secteur a été conçu pour l'alimentation élec-
trique de la gamme d'ordinateurs Panasonic. Avant d'uti-
liser cet adaptateur, veuillez lire attentivement ce manuel
d'instructions et la partie correspondante dans le mode
d'emploi de l'ordinateur.
For U.K.
If a new plug is to be fitted please observe the wiring
code as shown below.
If in any doubt please consult a qualified electrician.
Warning: THIS APPLIANCE MUST BE EARTHED.
Important
The wires in this mains lead are coloured in accordance
with the following code:
Green-and-yellow: Earth
Blue:
Brown:
As the colours of the wires in the mains lead of this ap-
paratus may not correspond with the coloured markings
identifying the terminals in your plug, proceed as fol-
lows:
The wire which is coloured GREEN-and-YELLOW must
be connected to the terminal in the plug which is marked
by the letter E or by the safety earth symbol
GREEN or GREEN-and-YELLOW.
The wire which is coloured Blue must be connected to
the terminal which is marked with the letter N or col-
oured BLACK.
The wire which is coloured Brown must be connected to
the terminal which is marked with the letter L or coloured
RED.
on the
The mains plug on this equipment must be used to dis-
connect the mains power.
Please ensure that a socket outlet is available near the
equipment and shall be easily accessible.
How to replace the fuse
Open the fuse compartment
with a screwdriver and replace
the fuse.
Warnings
This equipment is not designed for connection to an
IT power system.
(An IT system is a system having no direct connec-
tions between live parts and Earth; the exposed-con-
ductive-parts of the electrical installation are earthed.
An IT system is not permitted where the computer
is directly connected to public supply systems in the
U.K.)
Disconnect the mains plug from the supply socket
when the computer is not in use.
This equipment is produced to BS800/1983.
Neutral
Live
coloured
8-E-1
