OPERATING INSTRUCTIONS
BEDIENUNGSANLEITUNG
INSTRUCTIONS D'UTILISATION
© Panasonic Corporation 2008
Printed in Japan
Warning
This apparatus must be earthed for your safety.
To ensure safe operation the three-pin plug must be inserted
only into a standard three-pin power point which is effectively
earthed through the normal household wiring.
Extension cords used with the equipment must be three-core
and be correctly wired to provide connection to earth. Wrongly
wired extension cords are a major cause of fatalities.
The fact that the equipment operates satisfactorily does not
imply that the power point is earthed and that the installation is
completely safe.
For your safety, if you have any doubt about the effective
earthing of the power point, consult a qualified electrician.
FOR YOUR SAFETY PLEASE READ THE FOLLOWING
TEXT CAREFULLY
This appliance is supplied with a moulded three pin mains plug
for your safety and convenience.
A 3 amp fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the
replacement fuse has a rating of 3 amps and that it is approved
by ASTA or BSI to BS 1362.
Check for the ASTA mark
the fuse.
If the plug contains a removable fuse cover you must ensure
that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a
replacement cover is obtained.
A replacement fuse cover can be purchased from your local
Panasonic Dealer.
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE
SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD
BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF
SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF
THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMP
SOCKET.

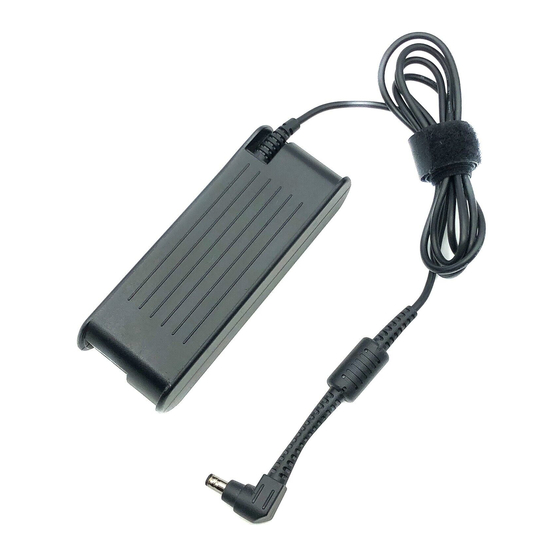

AC Adaptor
CF-AA6503A
DFQW5240ZA HS1008-0
or the BSI mark on the body of
The AC adaptor is designed for supplying power to the Panasonic
computer series. Before using the AC adaptor, read this instruc-
tion manual and the relevant portions of the computer's instruc-
tion manual carefully.
Dieser Netzadapter ist für die Versorgung von Panasonic
Produkten vorgesehen. Vor dem Einsatz des Netzadapters lesen
Sie bitte diese Anleitung genau durch, und informieren Sie sich in
den entsprechenden Abschnitten des Computerhandbuches.
L'adaptateur secteur a été conçu pour l'alimentation électrique
de la gamme d'ordinateurs Panasonic. Avant d'utiliser cet
adaptateur, veuillez lire attentivement ce manuel d'instructions
et la partie correspondante dans le mode d'emploi de l'ordinateur.
For U.K.
If a new plug is to be fitted please observe the wiring code as
shown below.
If in any doubt please consult a qualified electrician.
Warning: THIS APPLIANCE MUST BE EARTHED.
Important
The wires in this mains lead are coloured in accordance with the
following code:
Green-and-yellow:
Blue:
Brown:
As the colours of the wires in the mains lead of this apparatus
may not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
The wire which is coloured GREEN-and-YELLOW must be con-
nected to the terminal in the plug which is marked by the letter
E or by the safety earth symbol
and-YELLOW.
The wire which is coloured Blue must be connected to the ter-
minal which is marked with the letter N or coloured BLACK.
The wire which is coloured Brown must be connected to the
terminal which is marked with the letter L or coloured RED.
The mains plug on this equipment must be used to disconnect
the mains power.
Please ensure that a socket outlet is available near the equip-
ment and shall be easily accessible.
How to replace the fuse
Open the fuse compartment with a
screwdriver and replace the fuse.
Warnings
This equipment is not designed for connection to an IT power
system.
(An IT system is a system having no direct connections
between live parts and Earth; the exposed-conductive-parts
of the electrical installation are earthed.
An IT system is not permitted where the computer is directly
connected to public supply systems in the U.K.)
Disconnect the mains plug from the supply socket when the
computer is not in use.
This equipment is produced to BS800/1983.
Earth
Neutral
Live
coloured GREEN or GREEN-
8-E-1
