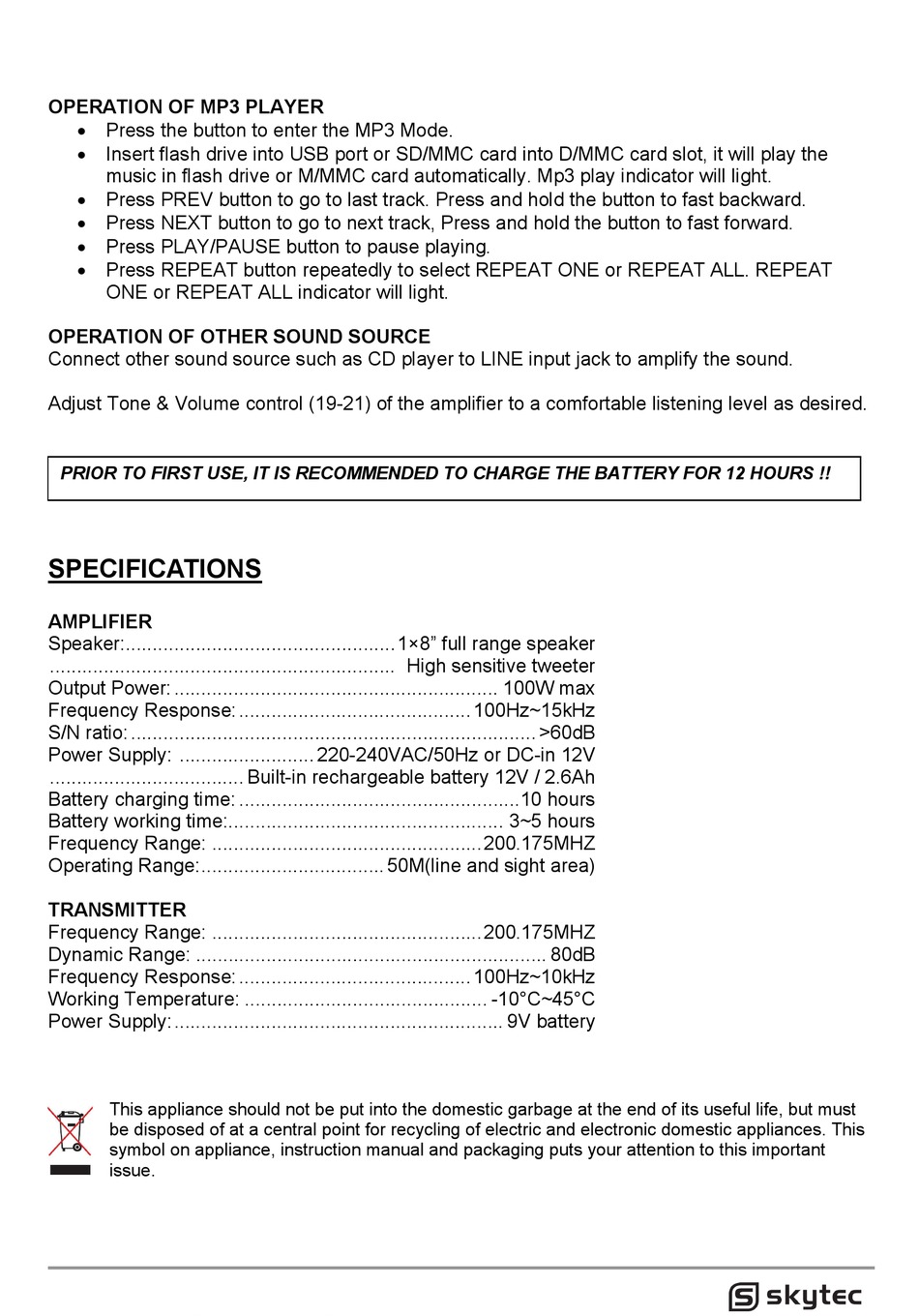

Specifications - Skytec ST-050 Gebrauchsanleitung

OPERATION OF MP3 PLAYER
 Press the button to enter the MP3 Mode.
 Insert flash drive into USB port or SD/MMC card into D/MMC card slot, it will play the
music in flash drive or M/MMC card automatically. Mp3 play indicator will light.
 Press PREV button to go to last track. Press and hold the button to fast backward.
 Press NEXT button to go to next track, Press and hold the button to fast forward.
 Press PLAY/PAUSE button to pause playing.
 Press REPEAT button repeatedly to select REPEAT ONE or REPEAT ALL. REPEAT
ONE or REPEAT ALL indicator will light.
OPERATION OF OTHER SOUND SOURCE
Connect other sound source such as CD player to LINE input jack to amplify the sound.
Adjust Tone & Volume control (19-21) of the amplifier to a comfortable listening level as desired.
PRIOR TO FIRST USE, IT IS RECOMMENDED TO CHARGE THE BATTERY FOR 12 HOURS !!

SPECIFICATIONS

AMPLIFIER
Speaker: .................................................. 1×8" full range speaker
................................................................ High sensitive tweeter
Output Power: ............................................................ 100W max
Frequency Response: ........................................... 100Hz~15kHz
S/N ratio: ........................................................................... >60dB
Power Supply: ......................... 220-240VAC/50Hz or DC-in 12V
.................................... Built-in rechargeable battery 12V / 2.6Ah
Battery charging time: .................................................... 10 hours
Battery working time:................................................... 3~5 hours
Frequency Range: .................................................. 200.175MHZ
Operating Range: .................................. 50M(line and sight area)
TRANSMITTER
Frequency Range: .................................................. 200.175MHZ
Dynamic Range: ................................................................. 80dB
Frequency Response: ........................................... 100Hz~10kHz
Working Temperature: ............................................. -10°C~45°C
Power Supply: ............................................................. 9V battery
This appliance should not be put into the domestic garbage at the end of its useful life, but must
be disposed of at a central point for recycling of electric and electronic domestic appliances. This
symbol on appliance, instruction manual and packaging puts your attention to this important
issue.
