Verwandte Anleitungen für Gemini GVX-SUB12P
Inhaltszusammenfassung für Gemini GVX-SUB12P

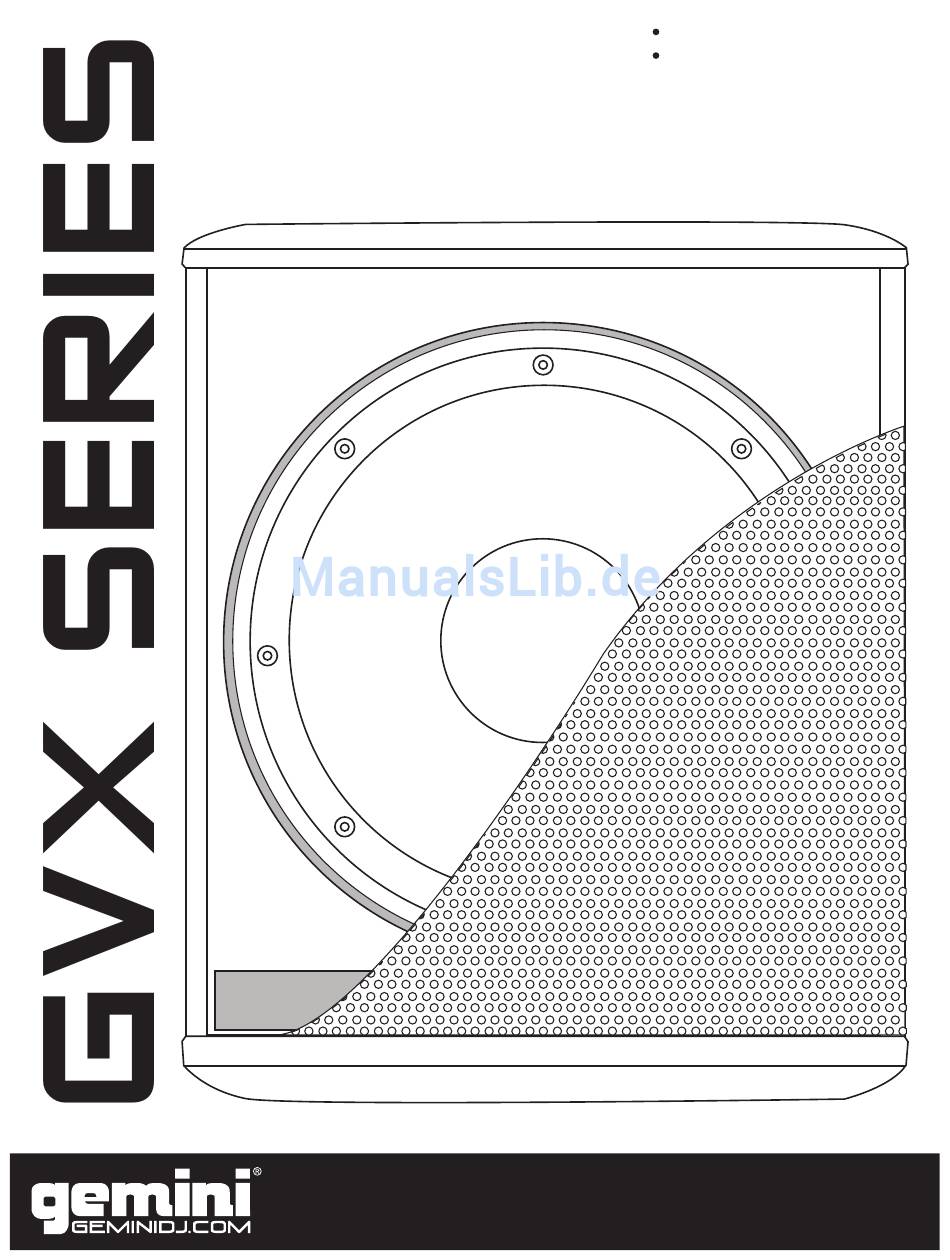

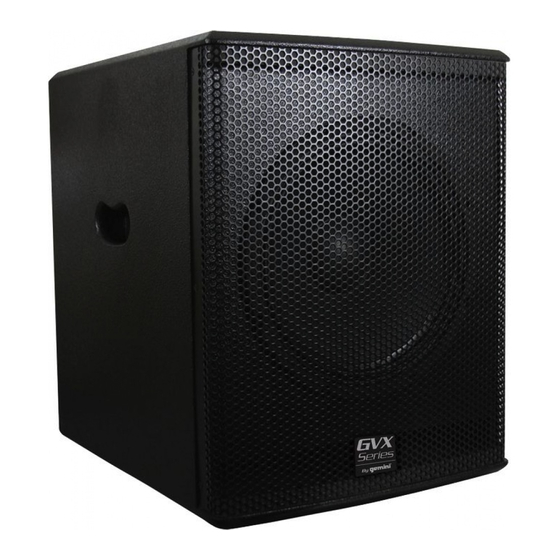

- Seite 1 Professional Loudspeakers Cajas Acústicas Profesionals Haut-Parleur Professionnel Professionelle Lautsprecher GVX-SUB12P GVX-SUB15P GVX-SUB18P OPERATIONS MANUAL MANUAL DE INSTRUCCIONES MANUEL D’INSTRUCTIONS BEDIENUNGSHANDBUCH...
- Seite 2 GEMINI service personnel. – Do not place the device in an unstable position where it might accidentally fall over. POR FAVOR LEA DETENIDAMENTE ANTES DE PROCEDER Siguiendo siempre las precauciones básicas indicadas a continuación para evitar la posibilidad...
-
Seite 3: Connecting The Speakers
Serial Number 9. CLIP – Este LED se iluminará cuando el sistema esté sobrecargado, no se recomienda que opere con sus altavoces GVX a DESIGNED AND ENGINEERED IN USA BY GEMINI, DESIGNED AND ENGINEERED IN USA BY GEMINI, A DIVISION OF GCI TECHNOLOGIES, MANUFACTURED IN CHINA A DIVISION OF GCI TECHNOLOGIES, MANUFACTURED IN CHINA niveles de Clip ya que causará... - Seite 4 GVX-SUB15P Powered 15" subwoofer, 400W rms, 1600W peak power VOLUME FREQ PHASE CLIP LIMITER ACCESSORIES PARALLEL These OPTIONAL accessories can be purchased at your local Gemini Dealer. PARALLEL ACCESORIOS INPUT OUTPUT OUTPUT THROUGH HIGH PASS Estos accesorios OPCIONALES pueden adquirirse en su proveedor local de productos Gemini.
- Seite 5 TECHNICAL DATA DATOS TÉCNICOS CARACTERISTIQUES TECHNIQUES TECHNISCHE DATEN GVX-SUB12P System Power Rating:................300 W RMS / 1200 W PEAK Frequency range :......................47 Hz - 250 Hz Maximum Sound pressure level :....................132 dB Woofer size:............................12” Woofer Magnet:..........................50oz Low frequency driver..................2.0” (50.8 mm) Voice Coil Crossover frequency adjust.....................55Hz to 200Hz...
- Seite 6 TECHNICAL DATA DATOS TÉCNICOS CARACTERISTIQUES TECHNIQUES TECHNISCHE DATEN GVX-SUB15P System Power Rating:................400 W RMS / 1600 W PEAK Frequency range :......................40 Hz - 250 Hz Maximum Sound pressure level :....................132 dB Woofer size:............................15” Woofer Magnet:..........................60oz Low frequency driver..................2.5” (63.5 mm) Voice Coil Crossover frequency adjust.....................55Hz to 200Hz Enclosure:.........................18 mm (3/4”), MDF Finish:........................Black acrylic lacquer...
- Seite 7 TECHNICAL DATA DATOS TÉCNICOS CARACTERISTIQUES TECHNIQUES TECHNISCHE DATEN GVX-SUB18P System Power Rating:................500 W RMS / 2000 W PEAK Frequency range :......................37 Hz - 250 Hz Maximum Sound pressure level :....................138 dB Woofer size:............................18” Woofer Magnet:..........................62oz Low frequency driver..................3” (76.2 mm) Voice Coil Crossover frequency adjust.....................55Hz to 200Hz Enclosure:.........................18 mm (3/4”), MDF Finish:........................Black acrylic lacquer...
- Seite 8 90 days. C. Service covered under warranty will be paid for by Gemini and returned to you. For non-warrantied products, Gemini will repair your unit after payment B.
- Seite 9 IN THE USA: IF YOU EXPERIENCE PROBLEMS WITH THIS UNIT, CALL 1-732-346-0061 FOR GCI TECHNOLOGIES CUSTOMER SERVICE. DO NOT ATTEMPT TO RETURN THIS EQUIPMENT TO YOUR DEALER. Parts of the design of this product may be protected by worldwide patents. Information in this manual is subject to change without notice and does not represent a commitment on the part of the vendor.
